Technical Tip: How to integrate FortiMail with FortiAnalyzer Cloud

This article describes how to integrate FortiMail with FortiAnalyzer Cloud.

FortiMail Configuration:

1) Enable logging in FortiAnalyzer Cloud  as follows:

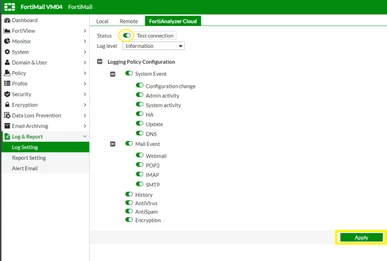

Navigate in FortiMail GUI, Log & Report -> Log Setting -> FortiAnalyzer Cloud.

In FortiAnalyzer Cloud menu, enable the option from 'Status' menu and select Apply.

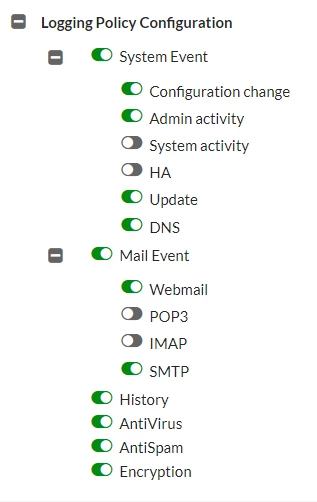

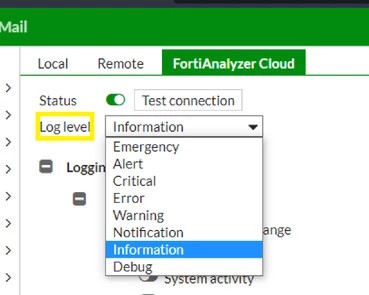

Specify the 'Log level' and 'Logging Policy Configuration' in FortiMail.

Note:

To established the connection between FortiMail and FortiAnalyzer Cloud, FortiMail needs to have license registered with FortiCare.

FortiAnalyzer Configuration:

1) Go to 'Device Manager' and authorize the FortiMail.

Once authorized by FortiAnalyzer Cloud, FortiMail logs in Log View will be visible.

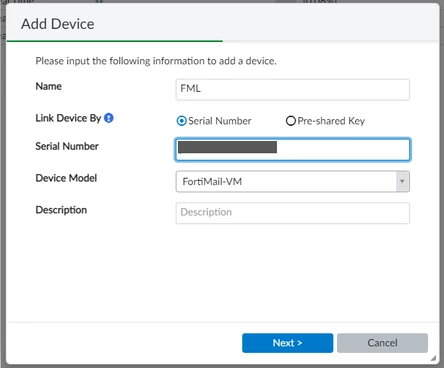

To add FortiMail Serial Number in FortiAnalyzer Cloud:

Go to Device Manager - > Add Device.

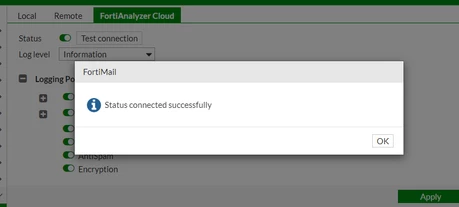

2) Verify the connection in FortiMail:

Log & Report -> Log Setting -> FortiAnalyzer Cloud and select 'Test Connection' option.

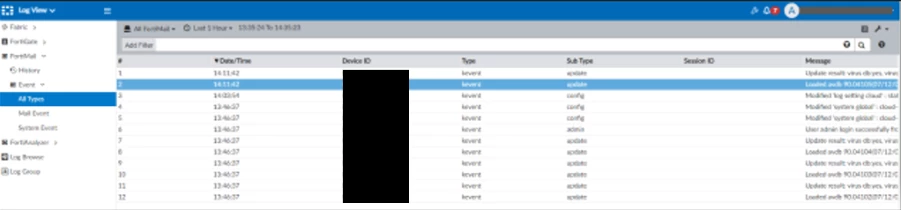

3) Go to Log View to see the logs as follows:
