Technical Tip: How to enable Header From Check on Access Control Rule

Description

This article describes how to enable a Header From Check on an Access Control Rule.

Scope

FortiMail v8.0.

Solution

1. Enable the Header From option in access control.

GUI:

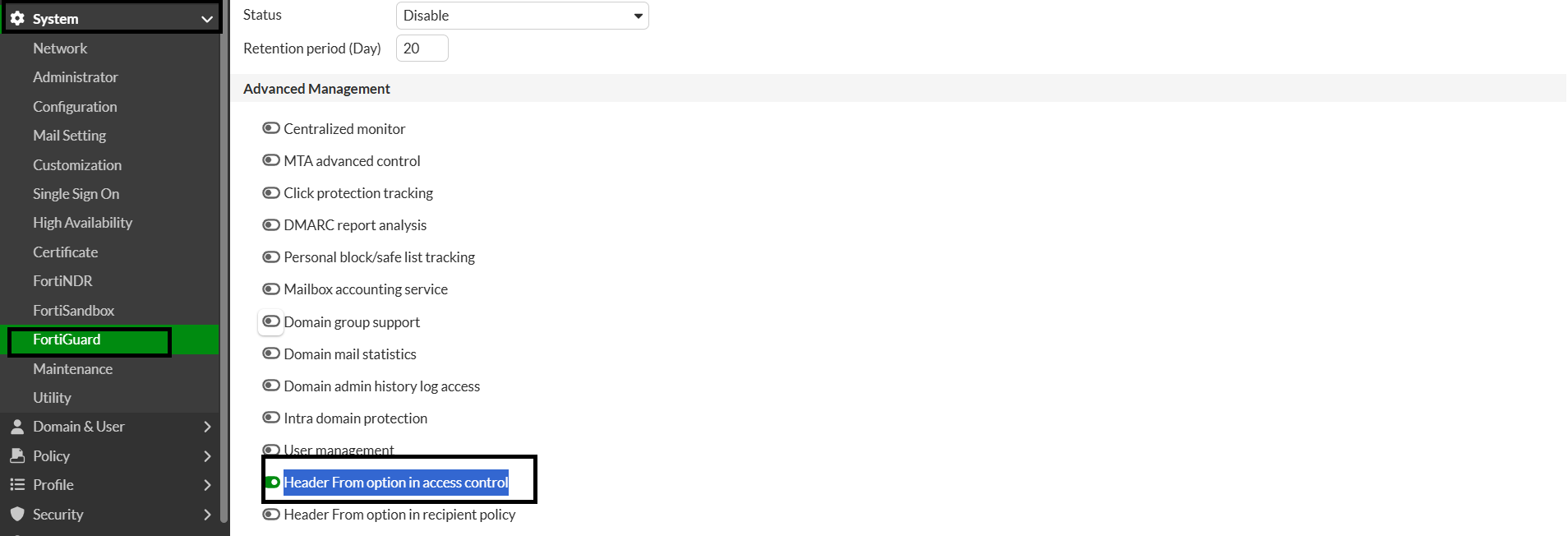

Note: An Advanced Management License is required to enable this option. In the GUI, navigate to the System -> FortiGuard -> Licensed Feature -> Advanced Management -> Header From option in access control, select 'Enable', and select Apply.

2. A message will appear stating 'Licensed feature setting has been changed. The GUI will now reload'.

3. To create a new access control rule checking the Header From:

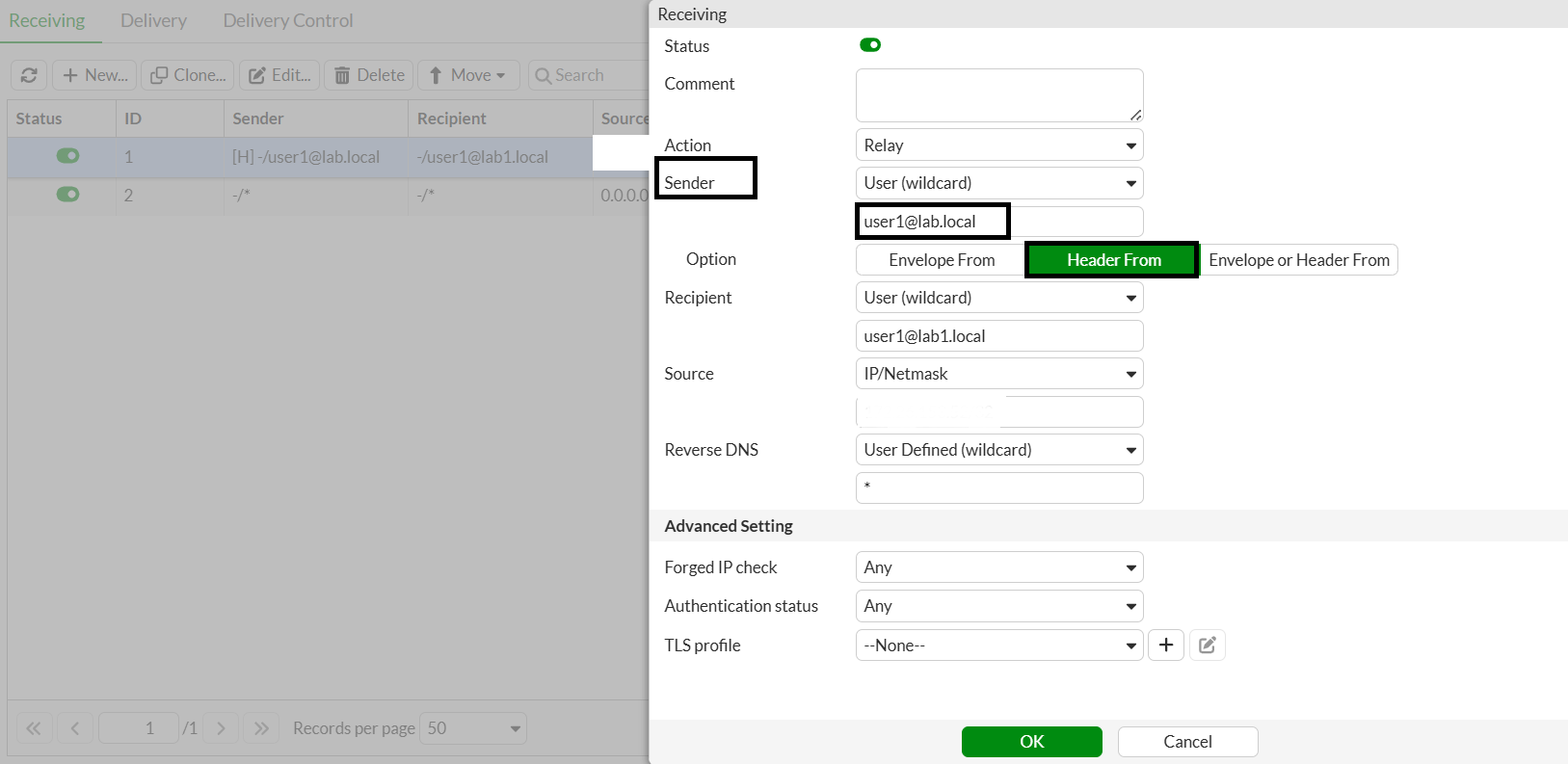

Navigate to Policy -> Access Control -> New -> Configure the rule parameters as needed -> Choose any of the following options: Envelope From, Header From, Envelope or header from.

CLI:

#config policy access-control receive
(receive)#edit <rule_id>
(1)#set sender-option {envelope-from | envelope-or-header-from | header-from}
(1)#end

4. Results:

• If an Email is sent with a different Header From as configured, it will not match the rule and will be moved to the next rule with the configured action. In this test, it is a deny rule.

• If an Email is sent with the configured Header From, it will match the rule and the configured action will be taken.
