Technical Note: Encrypting incoming/outgoing emails only for credit card number pattern

Description

Scope

Solution

• somu.local

• test.local

• somu.local
• user
• user2
• test.local
• test

The FortiMail IP address is 172.31.19.177.

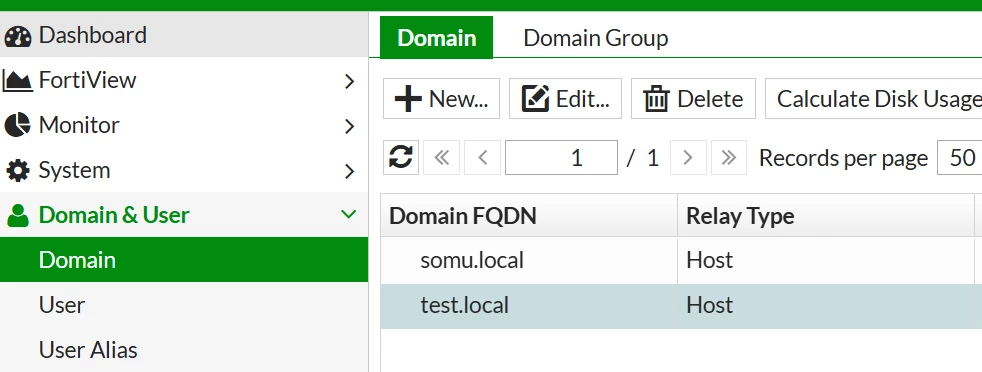

Configuring Domains:

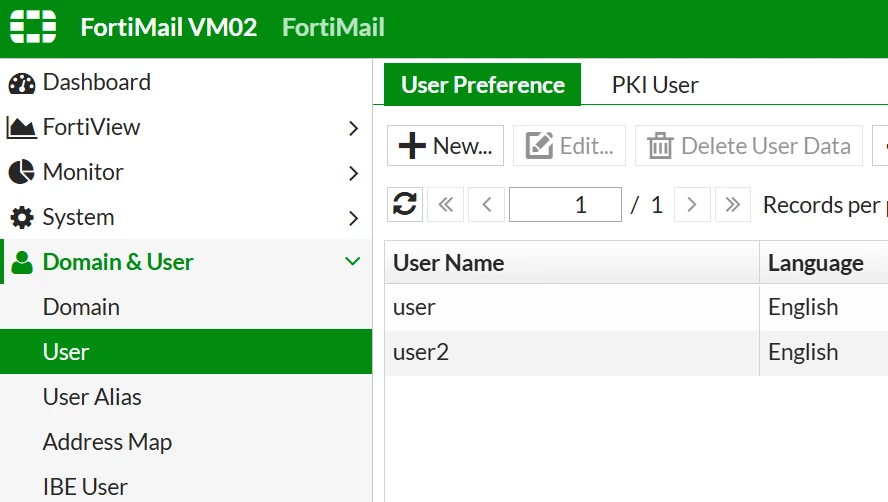

Configuring Users:

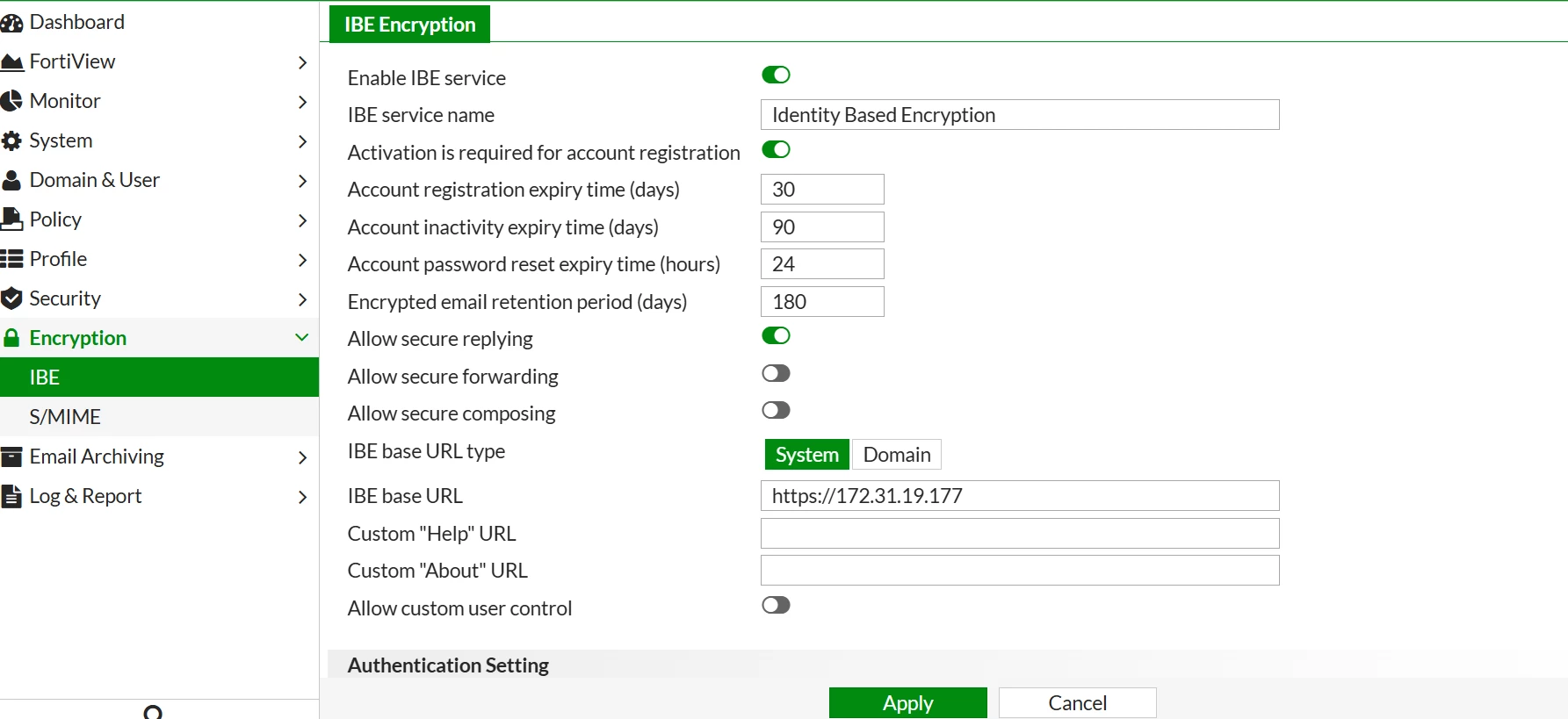

Enable the IBE encryption:

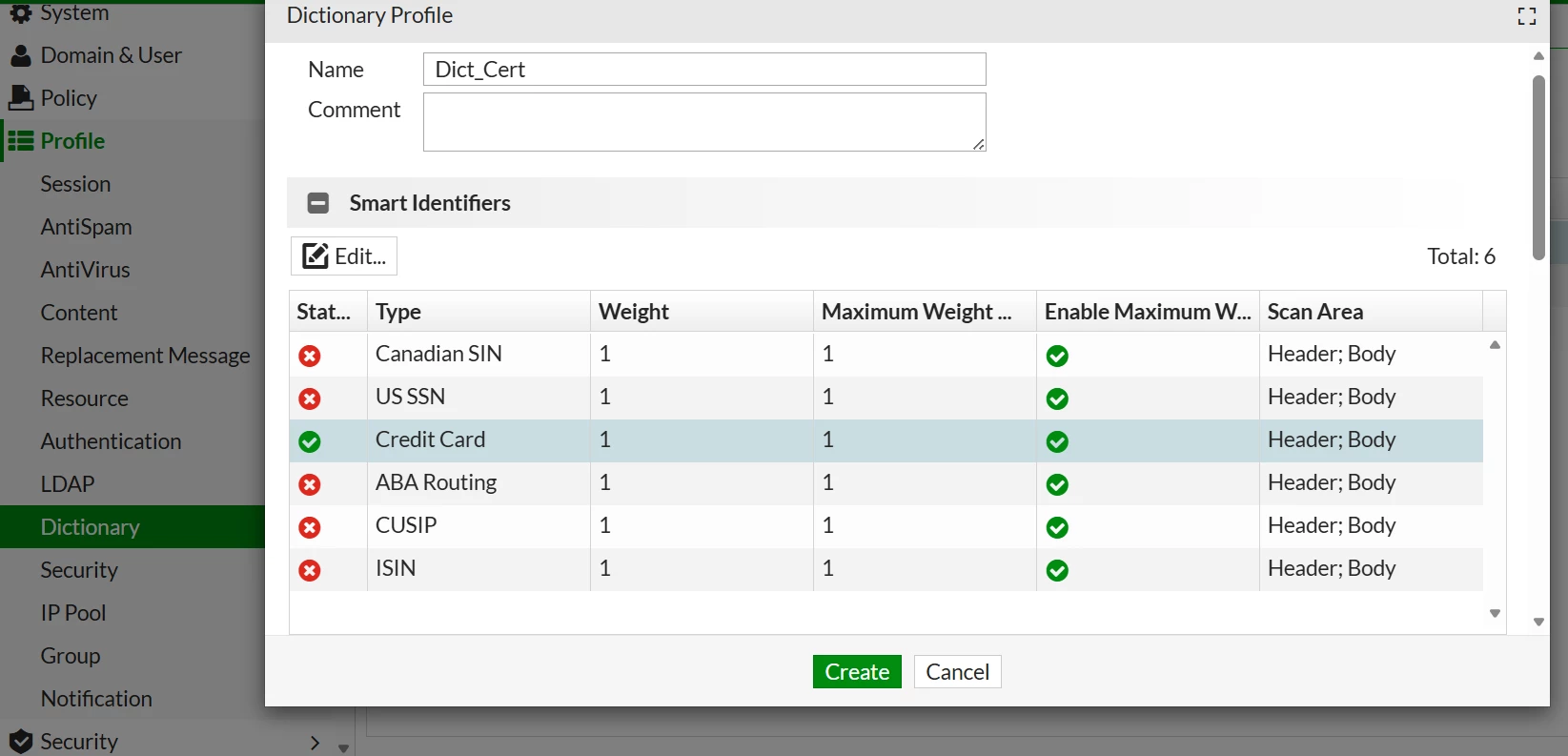

Configuring the Dictionary Profile:

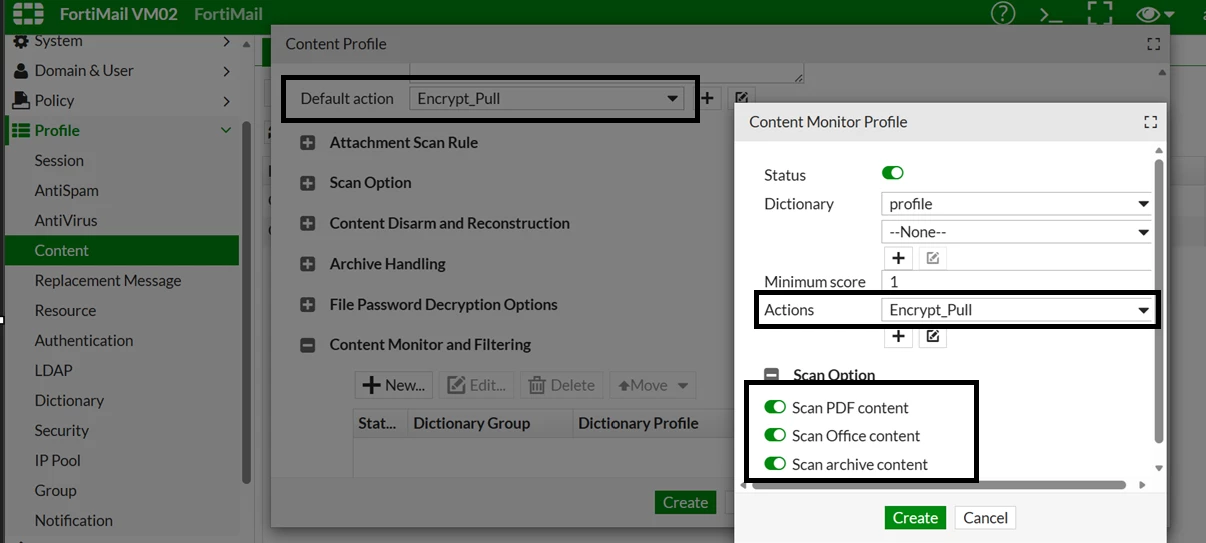

Configuring the Content Profile:

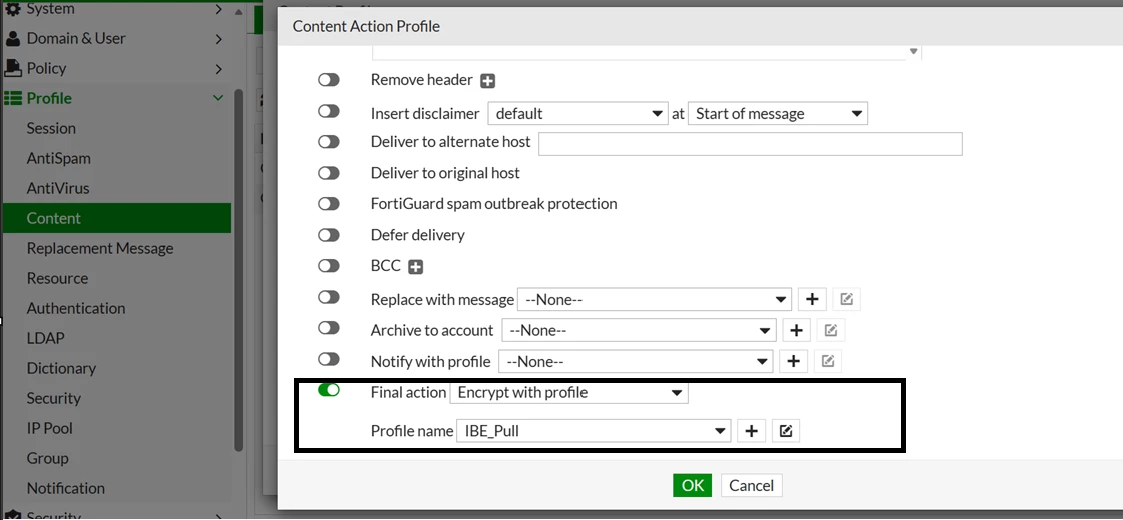

On the content profile, the action should be configured as encrypt. Under the action profile, the encrypt profile should be IBE_Pull, and under Content Monitor and Filtering, it is necessary to select the Dictionary Profile which was created earlier.

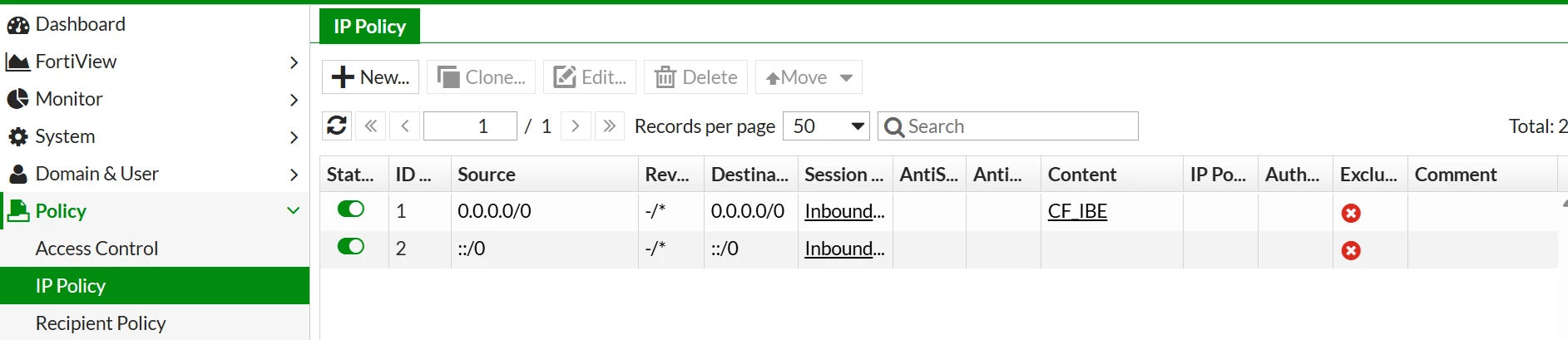

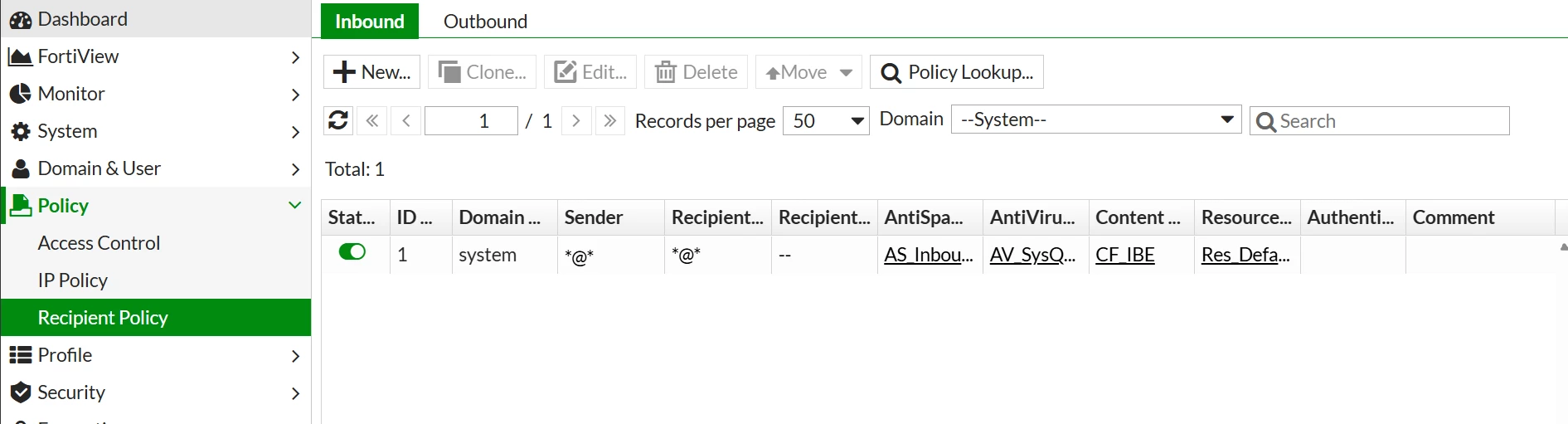

Configure the IP policy and Outgoing Recipient policy:

Authenticate with user password, then the real contents can be viewed.

Domain configuration:

get system status
Version:            FortiMail-400C v5.2,build425,141127 (5.2.2 GA)

config domain
    edit somu.local
        config profile authentication radius
        end
        config user mail

            edit user

                set type local

                set password ENC FOpyx2PNXG6zMv96Ljd3h8mSfvcGPbxQ7NRHDRTVSjfvZzrqXNQyIcVrHV7bTMo+R6DdHGMvUAkrH3WXaaj+g+mNtI8BpZtFXeCGHULMEAg2TmzL

        next

        edit user2

            set type local

            set password ENC pUFm+E0TZHTSivLlGGhAk6NcQze6Waskn8aLCbTNVYG+ox/HitlmfBNKHJDXQPCUdahJGIOz5342+PdI3BVWcmJKmR0zM302OKLI04t/wR8Fv6uw

        next
    end
    config user group
    end
    config customized-message

        edit report-quarantine-summary

            config variable

            end

            config email-template

            end

        next
    end
    config profile antivirus-action
    end
    config profile antivirus
    end
    config profile antispam-action
    end
    config profile antispam
    end
    config profile content-action
    end
    config profile content
    end
    config profile resource
    end
    config policy recipient
    end
    config  domain-setting

        config  sender-addr-rate-ctrl-exempt

        end
    end
    config cal resource
    end

next
edit test.local

    config profile authentication radius
    end

    config user mail

    edit test

        set type local
        set password ENC TvDIWJ9rfOGyBQyyZ2xmer41BPPNSkZ8LhrFHTphIH8xG48U4panUOgwFozpfK/TPB9LiuJ1HTGmilOF3qIHzQLH4gUMCXX/ZiYefuaW5RaSRSZ/

    next

end
config user group

end

config customized-message

    edit report-quarantine-summary

        config variable
        end
        config email-template
        end
    next

end

config profile antivirus-action

end

config profile antivirus

end

config profile antispam-action

end

config profile antispam

end
config profile content-action

end

config profile content

end

config profile resource
end

config policy recipient

end

config domain-setting

    config sender-addr-rate-ctrl-exempt

    end

end

config cal resource

end

next
end

Configuring users:

config domain
    edit somu.local
        config user mail
            edit user
                set type local
                set password ENC viTAVSbDK14ejJZIkiVNupemg4gcSTn3c7txZKTpAvcOvUPK87kpMTh3TZ/lL68kl4nTgdsusSnX47em0qOrJIqiqLj3dLY0yCsoUwYWTOJAiYxL

            next

            edit user2

                set type local

                set password ENC LzbgcChFMz1iV6t3D0fHiy+2xIcNqpPaG2vBgXpVA0fxrdvMh+iqn8v0/SY3qyF8BGloVegjBHlubLy0ExuX0jK09vRO37Qq+srm6Q/YoexEHz/i
    next
end

For test.local:


config domain
    edit test.local
        config user mail
            edit test
                set type local
                set password ENC hSTTadsBtS8SA6x0v5pSAfTAz9mYfVhbj+Iqk8ugqZf8H+DvBf9I4MSLgs6DbWScL+cfg+duF5FH4/57h3pza8kvbdAZIUMnzPeRSr1fj8mqvCVk
    next
end

Configuring Content Action Profile:

config profile content-action
    edit encrypt
        set direction outgoing
        set action encryption
        set encryption-profile IBE_Pull
    next
end

Configuring Content Profile:

config profile content

    edit outbound_credit_card

        set direction outgoing

            config  attachment-name

                edit *.bat

                next

                edit *.com
                next
                edit *.dll
                next
                edit *.doc
                next
                edit *.exe
                next
                edit *.gz
                next
                edit *.hta
                next
                edit *.ppt
                next
                edit *.rar
                next
                edit *.scr
                next
                edit *.tar
                next
                edit *.tgz
                next
                edit *.vb?
                next
                edit *.wps
                next
                edit *.xl?
                next
                edit *.zip
                next
                edit *.pif
                next
           end

        set action-default encrypt

        config  monitor

            edit 1

                set dictionary-profile credit_card_dictionary

                set action Encrypt_Pull_Outbound

                set scan-pdf enable

                set scan-msoffice enable

                set scan-archive enable

            next

        end

    next
end

Configuring Dictionary Profile:

config profile dictionary
    edit credit_card_dictionary
        config item
            edit 1
                set pattern-type CANSIN
                set pattern-max-limit enable
                set pattern-status disable
            next
            edit 2
                set pattern-type USSSN
                set pattern-max-limit enable
                set pattern-status disable
            next
            edit 3
                set pattern-type CreditCard
                set pattern-max-limit enable
            next
            edit 4
                set pattern-type ABAROUTING
                set pattern-max-limit enable
                set pattern-status disable
            next
            edit 5
                set pattern-type CUSIP
                set pattern-max-limit enable

                set pattern-status disable

            next
            edit 6

                set pattern-type ISIN

                set pattern-max-limit enable

                set pattern-status disable

            next

        end

    next
end

Configuring IP Policy:

config policy ip
    edit 1
        set profile-session Inbound_Session
        set profile-content outbound_credit_card
    next
end

Configuring Outgoing recipient policy:

config policy recipient
    edit 1
        set direction outgoing
        set profile-content outbound_credit_card
    next
end

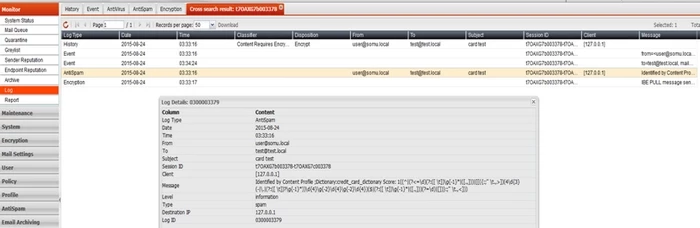

Now try to send a mail from user@somu.local to test@test.local with a credit card (fake) 4539665237127925 number in body of the email, when the logs are verified on the FortiMail the email can be seen to be encrypted.



If tested with .docx or zip/rar file with .docx inside, it should encrypt the emails.

To open the encrypted email, select https://172.31.19.177. A similar authentication prompt to the one shown below should be seen.
