Troubleshooting Tip: Webhooks troubleshooting on Security Fabric
Description
This article describes how to check webhooks functionality on the firewall.
Scope
FortiOS v6.0 and above.
Solution
The Webhooks feature was introduced in version 6.0 of FortiOS.
It represents an HTTP request to an endpoint as a result for a specific action. Effectively, they are callbacks for certain triggers. Usually, the content of these requests is a JSON document, but not necessarily.
If the payload is sent in JSON document, it will be required to specify the content-type:
content-type: application/json

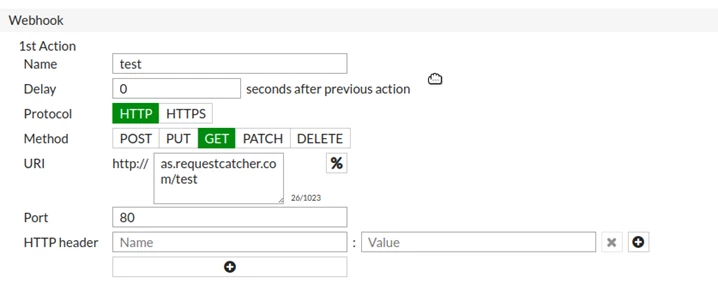

In the webhook configuration section, it is possible to customize the HTTP header, like JWT token for authentication.
Using an HTTP endpoint, give the control to sniff the outgoing interface and check the format and content of sending HTTP request.
In the GUI, there is context menu with option to run a stitch (in this case, with webhooks).
In the GUI, there is context menu with option to run a stitch (in this case, with webhooks).
For more information about what is done while the automation stitch runs, enable debugging on the 'autod' daemon:
diagnose debug application autod -1
diagnose debug en
To stop the debugging, run the following commands:
diagnose debug disable
diagnose debug reset
