Troubleshooting Tip: VPN IKEv2 SAML in FortiGate do not work with FortiClient version 7.4.3

  • Sep 28, 2026 7:56 AM UTC
  • 0 replies
  • 2782 views
  • Translate All

Description

This article describes a behavior where users correctly configured the Group ID for the SAML integration; however in the authentication does not work in IKEv2.

Scope

FortiGate v7.4.7, FortiClient v7.4.3.

Solution

Users configure a SAML integration with a specific group ID. Example configuration in the CLI below:



config system global
    set allow-traffic-redirect disable
    set auth-ike-saml-port 10428
end
config user saml
    edit "saml"
        set cert "Fortinet_Factory"
        set entity-id "http://x.x.x.x:10428/remote/saml/metadata/"
        set idp-entity-id "https://sts.windows.net/942b80cd-xxxx-42a1-8dcf-4b21dece61ba/"
        set idp-cert "REMOTE_Cert_1"
     next
end
config user group
    edit "azure_group"
        set member "saml"
            config match
                edit 1
                    set server-name "saml"
                    set group-name "c901e49d-3fff-41b5-910f-xxxxxxxx"
                next
            end
    next
end
config vpn ipsec phase1-interface
    edit "vpn_car"
        set type dynamic
        set interface "port1"
        set ike-version 2
        set mode-cfg enable
        set ipv4-dns-server1 8.8.8.8
        set eap enable
        set eap-identity send-request
        set assign-ip-from name
        set ipv4-split-include "10.0.2.0"
        set ipv4-name "IPSEC_aDD"
        set client-auto-negotiate enable
    next
end
config firewall policy
    edit 8
        set name "VPN Inbound"
        set srcintf "vpn_car"
        set dstintf "port2"
        set action accept
        set srcaddr "IPSEC_aDD"
        set dstaddr "10.0.2.0"
        set groups "azure_group"
    next
end
config system interface
    edit "port1"
        set ike-saml-server "saml"
    next
end



In the debug logs, the authentication process starts correctly, but it never finishes.



[authd_local_saml_auth:5778]: SAML login with UID 'DA715D9413064DD09C155EB6D427BC00'.
[authd_http_prepare_javascript_redir:3942]: https://x.x.x.x:10428/saml?070d048694950f1c
[545] __fnbamd_cfg_get_tac_plus_list_by_group-
[557] __fnbamd_cfg_get_tac_plus_list_by_group-Group 'azure_group'
[606] fnbamd_cfg_get_tac_plus_list-Total tac+ servers to try: 0
[840] fnbamd_cfg_get_ldap_list-
[456] fnbamd_rad_get-vfid=0, name='EAP_PROXY'
[911] fnbamd_cfg_get_radius_list-Loaded RADIUS server 'EAP_PROXY'
[918] fnbamd_cfg_get_radius_list-Total rad servers to try: 1
ep_fnbam_auth_wpa_user 401 -- svc_type='vpn-ikev2', user='DA715D9413064DD09C155EB6D427BC00', vdom='root', intf='FGVMXXXX'
fnbam_add_groups 304 -- Adding user usergroup azure_group
ep_fnbam_auth_wpa_user 500 -- auth_res=4.
ep_fnbam_auth_wpa_user 520 --auth sess added, ses_id=10204863078401


There is no output in the fnbamd debugs as explained in the following link, and authentication never works.

SAML-based authentication for FortiClient remote access dialup IPsec VPN clients



Solution:

Disable the feature 'use external browser as user-agent for SAML user authentication' in the FortiClient settings.

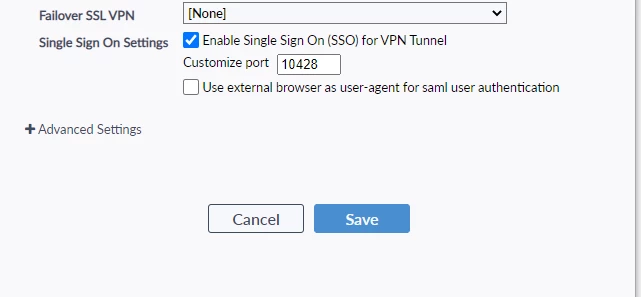

Open FortiClient, navigate to Remote Access -> Edit IPsec VPN -> Single Sign On Settings -> Disable. Use an external browser as the user-agent for SAML user authentication.



forticlient feature.png



Note:

Starting with FortiOS v7.4.9, SAML using an external browser for authentication is supported:

New features or enhancements
