Troubleshooting Tip: Verifying the Transfer of Public IP and Route Table Entry to the New Primary in FortiGate Azure HA

  • November 8, 2024
  • 0 replies
  • 895 views
Description This article describes how to verify that the Public IP and Route Table have successfully transferred to the new primary FortiGate in an Azure High Availability (HA) setup with SDN connector.
Scope FortiGate-VM in Azure
Solution

Assuming FortiGate HA has the following IP configuration:



Active FortiGate:



port1 (external) - 172.17.0.4 (primary IP) 172.17.0.6 (secondary IP) 172.17.0.7 (secondary IP)

port2 (internal) - 172.17.0.68

port3 (HASync) - 172.17.0.132

port4 (HAMgmt) - 172.17.0.196



Passive FortiGate:



port1 (external) - 172.17.0.5 (primary IP) 172.17.0.8 (secondary IP) 172.17.0.9 (secondary IP)

port2 (internal) - 172.17.0.69

port3 (HASync) - 172.17.0.133

port4 (HAMgmt) - 172.17.0.196



SDN configuration.

  • Primary:



config system sdn-connector

edit "AzureSDN"

    set type azure

    set use-metadata-iam disable

    set ha-status enable

    set tenant-id "XXXXXX"

    set client-id "XXXXXX"

    set client-secret XXXXX

    set subscription-id "XXXXX"

    set resource-group "SYAO-RG"

        config nic

         edit "FGT-FGT-A-Nic1"

          config IP

       edit "ipconfig1"

        set public-ip "YAOS-FGT-PIP"

    next

        edit "ipconfig2"

set public-ip "YAOS-FGT-PIP-2"

next

edit "ipconfig3"

set public-ip "YAOS-FGT-PIP-3"

next

end

next

end

config route-table

edit "FGT-RouteTable-ProtectedSubnet"

config route

edit "toDefault"

set next-hop "172.17.0.68"

next

end

next

end

end



Secondary:



config system sdn-connector

edit "AzureSDN"

set type azure

set use-metadata-iam disable

set ha-status enable

set tenant-id "XXXXXX"

set client-id "XXXXXX"

set client-secret XXXXX

set subscription-id "XXXXX"

set resource-group "SYAO-RG"

config nic

edit "FGT-FGT-B-Nic1"

config ip

edit "ipconfig1"

set public-ip "YAOS-FGT-PIP"

next

edit "ipconfig2"

set public-ip "YAOS-FGT-PIP-2"

next

edit "ipconfig3"

set public-ip "YAOS-FGT-PIP-3"

next

end

next

end

config route-table

edit "FGT-RouteTable-ProtectedSubnet"

config route

edit "toDefault"

set next-hop "172.17.0.69"

next

end

next

end

end





Run the following debug commands in Secondary FortiGate:


diagnose debug application azd -1

diagnose debug application azd-ha -1

diagnose debug console timestamp enable

diagnose debug enable



  1. FortiGate identifies itself as the Primary node in the cluster.
  2. The SDN connector searches for resources within the SYAO-RG resource group.
  3. It examines the public IP resources and retrieves their IP configuration IDs.



FGT-FGT-B # 2024-11-06 19:07:18 HA event
2024-11-06 19:07:21 HA state: primary
2024-11-06 19:07:21 AzureSDN: resourcegroup: SYAO-RG, sub: <--your subscription ID-->
2024-11-06 19:07:21 get pubip YAOS-FGT-PIP in resource group SYAO-RG
2024-11-06 19:07:21 found pub ip YAOS-FGT-PIP in resource group SYAO-RG
2024-11-06 19:07:21 ipconfig id: /subscriptions/<--your subscription ID-->/resourceGroups/SYAO-RG/providers/Microsoft.Network/networkInterfaces/FGT-FGT-A-Nic1/ipConfigurations/ipconfig1
2024-11-06 19:07:21 get pubip YAOS-FGT-PIP-2 in resource group SYAO-RG
2024-11-06 19:07:21 found pub ip YAOS-FGT-PIP-2 in resource group SYAO-RG
2024-11-06 19:07:21 ipconfig id: /subscriptions/<--your subscription ID-->/resourceGroups/SYAO-RG/providers/Microsoft.Network/networkInterfaces/FGT-FGT-A-Nic1/ipConfigurations/ipconfig2
2024-11-06 19:07:21 get pubip YAOS-FGT-PIP-3 in resource group SYAO-RG
2024-11-06 19:07:21 found pub ip YAOS-FGT-PIP-3 in resource group SYAO-RG
2024-11-06 19:07:21 ipconfig id: /subscriptions/<--your subscription ID-->/resourceGroups/SYAO-RG/providers/Microsoft.Network/networkInterfaces/FGT-FGT-A-Nic1/ipConfigurations/ipconfig3
2024-11-06 19:07:21 Disable interface: port1
2024-11-06 19:07:22 Disable interface: port2



  1. Detach the public IPs from FGT-FGT-A-NIC1.
  2. Attach the public IPs to FGT-FGT-B-NIC1.



2024-11-06 19:07:22 removing pubip
2024-11-06 19:07:22 query nic FGT-FGT-A-Nic1
2024-11-06 19:07:22 query nic FGT-FGT-A-Nic1, rc: 0
2024-11-06 19:07:22 remove public ip YAOS-FGT-PIP in ipconfig ipconfig1 of nic FGT-FGT-A-Nic1
2024-11-06 19:07:22 remove public ip YAOS-FGT-PIP-3 in ipconfig ipconfig3 of nic FGT-FGT-A-Nic1
2024-11-06 19:07:22 remove public ip YAOS-FGT-PIP-2 in ipconfig ipconfig2 of nic FGT-FGT-A-Nic1
2024-11-06 19:07:22 updating nic: FGT-FGT-A-Nic1
2024-11-06 19:07:24 updating nic: FGT-FGT-A-Nic1, rc: 0
2024-11-06 19:07:24 operation: "updating nic: FGT-FGT-A-Nic1", status: InProgress
2024-11-06 19:07:30 operation: "updating nic: FGT-FGT-A-Nic1", status: InProgress
2024-11-06 19:07:35 operation: "updating nic: FGT-FGT-A-Nic1", status: InProgress
2024-11-06 19:07:40 operation: "updating nic: FGT-FGT-A-Nic1", status: InProgress
2024-11-06 19:07:45 operation: "updating nic: FGT-FGT-A-Nic1", status: InProgress
2024-11-06 19:07:50 operation: "updating nic: FGT-FGT-A-Nic1", status: InProgress
2024-11-06 19:07:55 operation: "updating nic: FGT-FGT-A-Nic1", status: Succeeded
2024-11-06 19:07:55 adding pubip
2024-11-06 19:07:55 query nic FGT-FGT-B-Nic1
2024-11-06 19:07:56 query nic FGT-FGT-B-Nic1, rc: 0
2024-11-06 19:07:56 add public ip YAOS-FGT-PIP in ipconfig ipconfig1 of nic FGT-FGT-B-Nic1
2024-11-06 19:07:56 add public ip YAOS-FGT-PIP-3 in ipconfig ipconfig3 of nic FGT-FGT-B-Nic1
2024-11-06 19:07:56 add public ip YAOS-FGT-PIP-2 in ipconfig ipconfig2 of nic FGT-FGT-B-Nic1
2024-11-06 19:07:56 updating nic: FGT-FGT-B-Nic1
2024-11-06 19:07:57 updating nic: FGT-FGT-B-Nic1, rc: 0
2024-11-06 19:08:03 operation: "updating nic: FGT-FGT-B-Nic1", status: InProgress
2024-11-06 19:08:08 operation: "updating nic: FGT-FGT-B-Nic1", status: InProgress
2024-11-06 19:08:13 operation: "updating nic: FGT-FGT-B-Nic1", status: Succeeded



  1. Update the Default route entry in the route table with a next hop IP of 172.17.0.69.
  2. Display the latest interface configuration of the VM (note: the other two public IPs are not shown here;  it is possible to use the command 'diag test app azd 6' for details).


2024-11-06 19:08:13 query route table FGT-RouteTable-ProtectedSubnet in resource group SYAO-RG of subscription <--your subscription ID-->
2024-11-06 19:08:13 route table query, rc: 0
2024-11-06 19:08:13 matching route:toDefault:toDefault
2024-11-06 19:08:13 set route toDefault nexthop 172.17.0.69
2024-11-06 19:08:13 updating route table FGT-RouteTable-ProtectedSubnet in resource group SYAO-RG of subscription <--your subscription ID-->
2024-11-06 19:08:14 updating route table FGT-RouteTable-ProtectedSubnet in resource group SYAO-RG of subscription <--your subscription ID-->, rc: 0
2024-11-06 19:08:14 operation: "updating route table FGT-RouteTable-ProtectedSubnet in resource group SYAO-RG of subscription <--your subscription ID-->", status: Succeeded
2024-11-06 19:08:14 Enable interface: port1
2024-11-06 19:08:14 Enable interface: port2
2024-11-06 19:08:14 refreshing public IP in interface config
2024-11-06 19:08:14 azd getting instance metadata
2024-11-06 19:08:15 NIC: 172.17.0.5, public IP: 52.187.167.185
2024-11-06 19:08:15 NIC: 172.17.0.69
2024-11-06 19:08:15 NIC: 172.17.0.133
2024-11-06 19:08:15 NIC: 172.17.0.197, public IP: 13.76.31.34



It is also possible to check the changes from the Azure activity event log-change analysis:

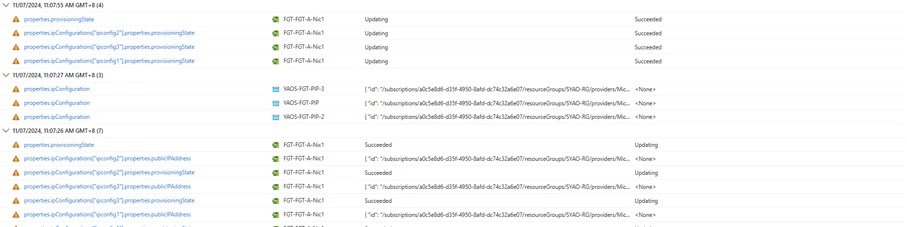

Removing public IP from the Primary FortiGate:

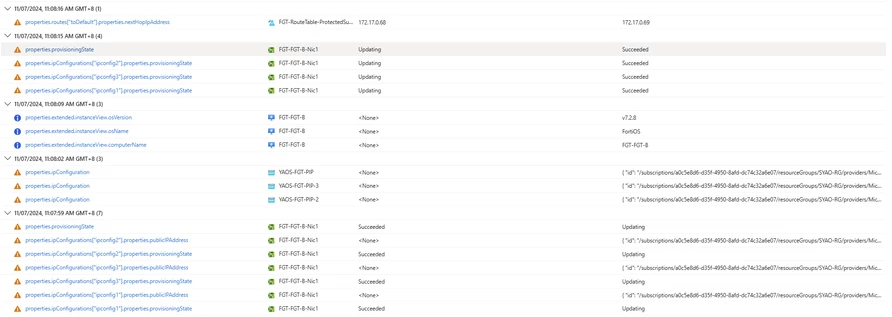

Attaching the public IP to the Secondary FortiGate and updating the route entry:
