Troubleshooting Tip: Users cannot see checksum for all VDOM
| Description | This article describes how to troubleshoot when the admin user cannot see the checksum of all VDOMs when HA is out of sync. |
| Scope | FortiGate. |

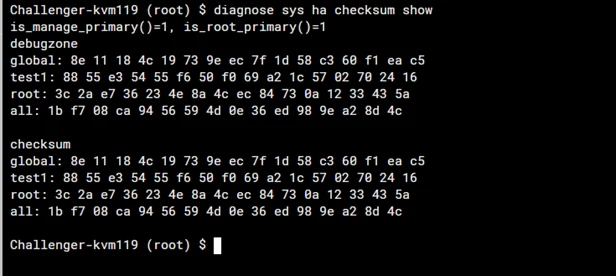

| Solution | The admin user can only see 2 VDOM checksums with global checksum. Run the Checksum command on FortiGate:
diag sys ha checksum cluster
There are 3 VDOMs configured on FortiGate.
Challenger-kvm119 # config vdom Challenger-kvm119 (vdom) # edit <vdom> Virtual Domain Name root test1 test2
Check if users have permission for all VDOM. If not, users will not be able to see the checksum of all VDOM:
To see all VDOM checksum users need to log in through an account that has global access.
Related article: |
