Troubleshooting Tip: Unable to select address object in policy

Description

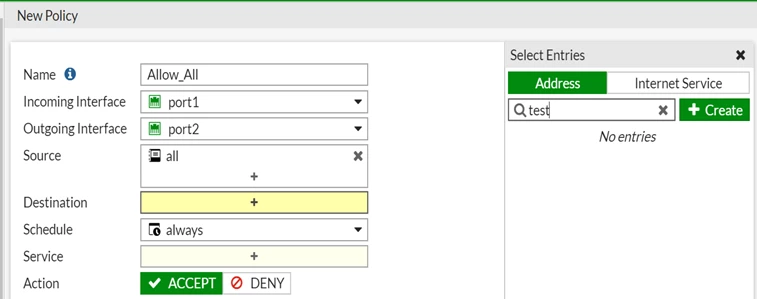

This article provides a solution for cases where the user is not able to select the address object in the policy.

Scope

FortiGate.

Solution

From the GUI:

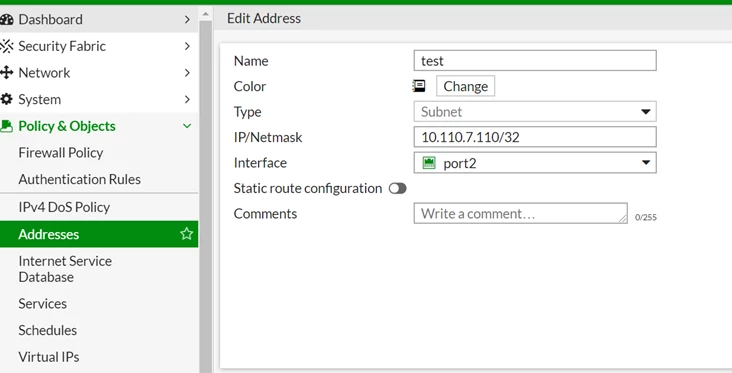

Go to Policy & Objects ->Addresses and navigate to the corresponding object.
Verify if there is interface reference.
Ensure the selected interface is the same as the destination interface, or 'any', as per policy requirements.

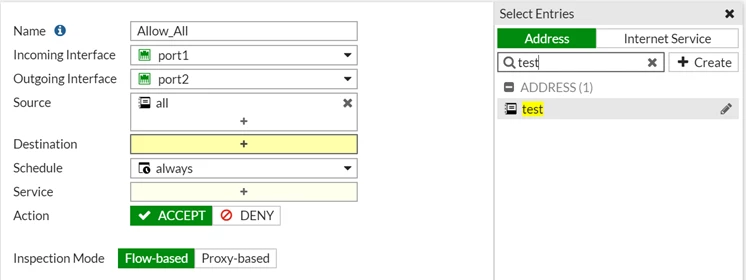

After the change, the user will be able to select the address object in the policy.





From the CLI:

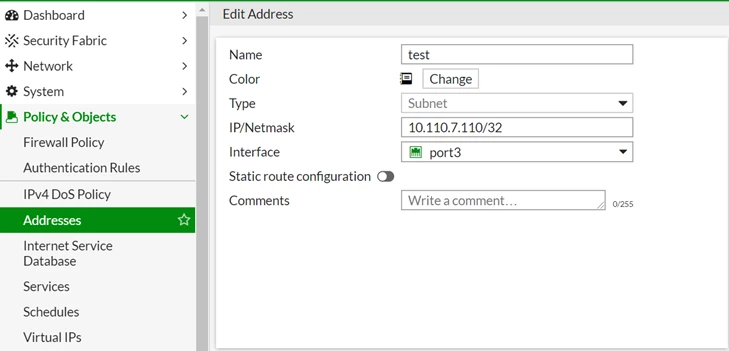

Change the associated-interface as per the policy configured.



config firewall address

    edit "test"

        set uuid a62ac3ba-8bb1-51ea-6cf5-d31b1879bf3c

        set associated-interface "port3"

        set subnet 10.110.7.110 255.255.255.255

    next
end



It may be easier to create an address object with any interface set.

It will then be possible to use it in a policy with any interfaces.

It may be more convenient to create an address object with the interface set to 'any', which will allow it to be used in a policy with any interfaces.



For example:

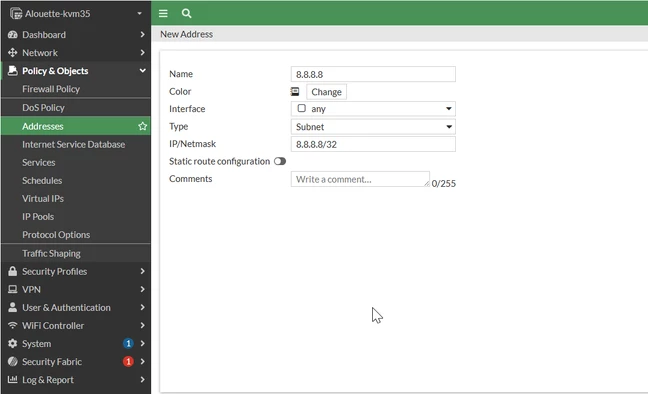

To create an address object in the FortiGate GUI:

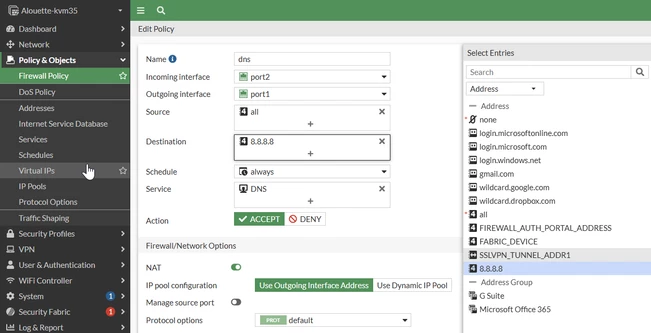

To add the address object to the policy GUI:

To create an address object in the FortiGate CLI:

config firewall address

    edit "8.8.8.8"

        set subnet 8.8.8.8 255.255.255.255

    next
end

To add the address object to the policy CLI:

config firewall policy
    edit 2

        set dstaddr "8.8.8.8"

    next
end
