Troubleshooting Tip: The constraint on the BGP neighbor group name

  • October 3, 2024
  • 0 replies
  • 724 views
Description This article describes the constraint on the BGP neighbor group name.
Scope FortiGate.
Solution
  1. While using a neighbor group in BGP configuration if there is any space between the neighbor group name BGP neighbor connection will not be established.

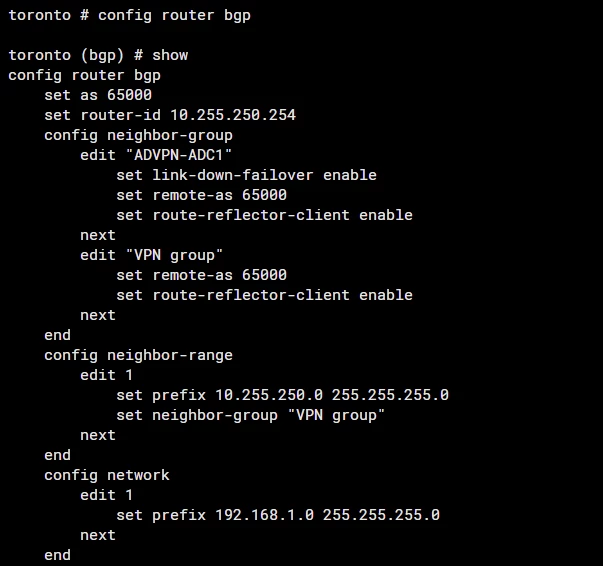

  1. Check BGP neighbors. BGP connection is not established:

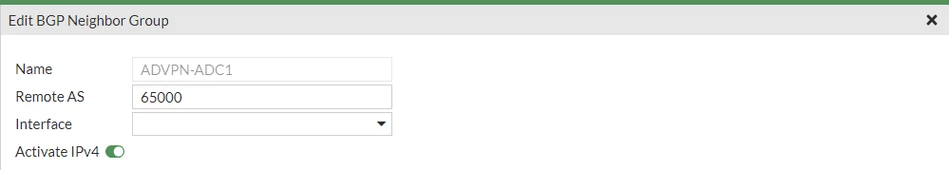

  1. Configure the neighbor group name without any space:

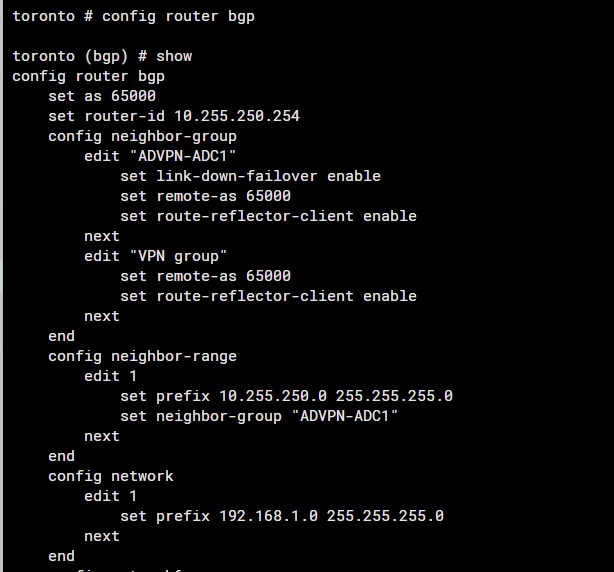

  1. Add the group to the BGP neighbor range:

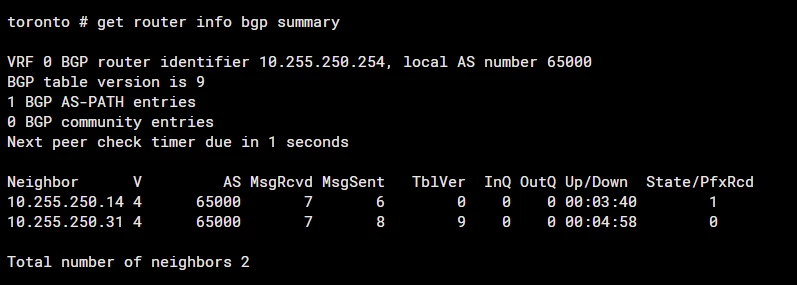

  1. Check the BGP neighbors. BGP connection is established with the neighbor group:
