Troubleshooting Tip: SAML mismatch Group error although Group ID is correctly configured in FortiGate

Description

This article describes a behaviour where users correctly configured the Group ID for the SAML integration, however in the debugs the error 'Failed group matching' is shown.

Scope

FortiGate with Azure SAML integration in v7.2.10, v7.4.4 or lower versions.

Solution

Users configure a SAML integration with a specific group ID.

config user saml
    edit "VPN_SAML"
        set cert "OWN_Cert"
        set entity-id "http://vpn.test.co:8443/remote/saml/metadata/"
        set single-sign-on-url "https://vpn.test.co:8443/remote/saml/login"
        set single-logout-url "https://vpn.test.co:8443/remote/saml/logout"
        set idp-entity-id "https://sts.windows.net/343543534/"
        set idp-single-sign-on-url "https://login.microsoftonline.com/343543534-46ea-bd8e-04ae5bf545a8/saml2"
        set idp-single-logout-url "https://login.microsoftonline.com/343543534-04ae5bf545a8/saml2"
        set idp-cert "REMOTE_Cert_1"
        set user-name "username"
        set group-name "group"
        set digest-method sha1
    next
 end

config user group
    edit "MFA_VPN"
        set member "VPN_SAML"
            config match
                edit 1
                    set server-name "VPN_SAML"
                    set group-name "343543534-3fdc-4566-8cf2-gtyh54663"
                next
            end
    next

In the SAML debug outputs, the following error is shown:

samld_send_common_reply [95]: Attr: 10, 49, 'username' 'test@vpn.test.co'
samld_send_common_reply [95]: Attr: 10, 51, 'group' '343543534-3fdc-4566-8cf2-gtyh54663' --> FortiGate correctly recollect the Group Object

2024-12-06 09:10:40 [1041] fnbamd_saml_auth_cache_lookup-Authentication passed.
2024-12-06 09:10:40 [234] __clear_one_entry-'635DDD39A3D747CE811D354D1F9E0DCF' is cleared.
2024-12-06 09:10:40 [1950] handle_req-r=0
2024-12-06 09:10:40 [1623] fnbam_user_auth_group_match-req id: 2065206618, server: VPN_SAML, local auth: 0, dn match: 0
2024-12-06 09:10:40 [1592] __group_match-Group 'MFA_VPN' passed group matching --> Validates user belongs to the group.
2024-12-06 09:10:40 [1595] __group_match-Add matched group 'MFA_VPN'(18)
2024-12-06 09:10:40 [1750] __radius_decode_mppe_key-Key len after decode 16
2024-12-06 09:10:40 fnbamd_dbg_hex_pnt[48] EAP msg from server (4)-03 A1 00 04
2024-12-06 09:10:40 [1548] fnbamd_auth_handle_radius_result-->Result for radius svr 'eap_proxy' 127.0.0.1(1) is 0
2024-12-06 09:10:40 [1573] fnbamd_auth_handle_radius_result-RADIUS auth succeeds with server 'VPN_SAML'
2024-12-06 09:10:40 [1623] fnbam_user_auth_group_match-req id: 2065206617, server: VPN_SAML, local auth: 0, dn match: 0
2024-12-06 09:10:40 [295] find_matched_usr_grps-Failed group matching --> Finally although the FortiGate already matches the user with the Group ID MF_VPN, it now shows a Failed group error.
2024-12-06 09:10:40 [209] fnbamd_comm_send_result-Sending result 1 (nid 0) for req 2065206617, len=2540

Workaround:

Remove Group ID and allow every group from IDP.

This can be done from the CLI or from the GUI:

From the CLI:

config user group
    edit "MFA_VPN"
        set member "VPN_SAML"
    next
end

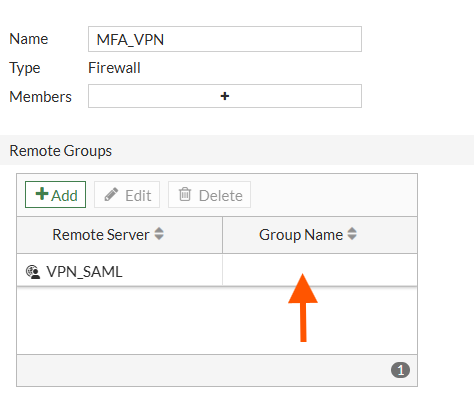

From the GUI:

Final fix:

Upgrade FortiGate to v7.2.11, v7.4.5, v7.6.1.
