Troubleshooting Tip: RADIUS server stuck at 'connecting' state when configuring a RADIUS server on GUI

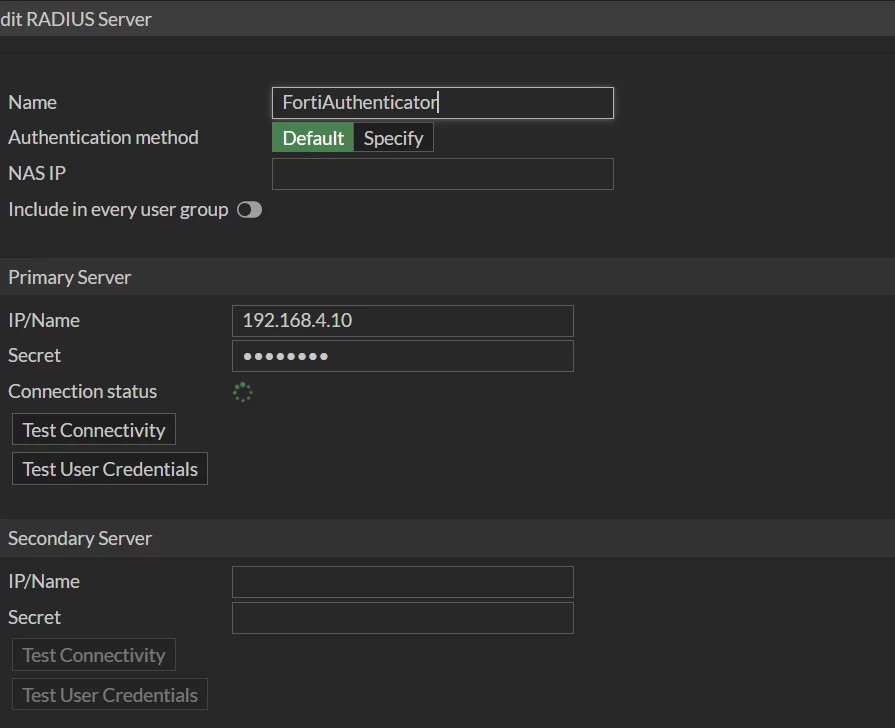

After configuring a RADIUS server on the FortiGate, the connection status is stuck at pending, and no errors are presented.

Troubleshooting further using a packet sniffer on port 1812 or 1813, as well as the fnbamd debug using the following command, there is no output observed.

Packet capture:

diagnose sniffer packet any "port 1812 or port 1813" 4 0 l

To start debugging:

diagnose debug reset
diagnose debug application fnbamd -1
diagnose debug enable

To stop debugging:

diagnose debug reset
diagnose debug disable

This issue can be caused by the 'fnbamd' daemon when it's displaying signs of high CPU utilization and could be stuck as a result. Verify the 'fnabmd' CPU usage using the following command:

FGT1 # diagnose sys top

Run Time:  5 days, 23 hours and 1 minutes
3U, 0N, 0S, 97I, 0WA, 0HI, 0SI, 0ST; 15554T, 12216F
         fnbamd    31318      R      98.0     0.2    6
           node    19006      S       2.5     0.5    7
       bcm.user     1778      S <     2.5     0.2    4
         lnkmtd     2218      S       0.5     0.4    5
         newcli    31308      S       0.5     0.0    5
         httpsd    31310      Z       0.5     0.0    2
            wad     2327      S       0.0     0.8    2
            wad     2328      S       0.0     0.8    4
            wad     2326      S       0.0     0.8    1
            wad     2322      S       0.0     0.8    0

Restarting the 'fnbamd' daemon can help to recover the daemon from its stuck state.

Steps to restart the 'fnbamd' process:

1. First, confirm the process ID of the fnbamd daemon:

FGT1 # diagnose sys process pidof fnbamd

4225

2. Restart the daemon:

FGT1 # fnsysctl killall fnbamd

3. Confirm if the process ID has changed:



FGT1 # diagnose sys process pidof fnbamd

4247

Refer to this article for instructions on how to find and restart the process: Technical Tip: How to view, verify and kill the processes consuming more memory in the GUI.

Note:
This is just a temporary fix to recover the service, root cause of high CPU usage for the specific process must be investigated for a permanent solution. Possible scenarios can include brute force attacks using login to the SSL VPN service, but circumstances may vary.
