Troubleshooting Tip: RADIUS Configuration Purged When Pushing Policy Package to FortiGate Devices via FortiManager

2 replies
521 views

Description

This article describes an issue where RADIUS configurations on newly added FortiGate devices are removed after pushing a policy package from FortiManager.

Scope

FortiGate, FortiManager.

Solution

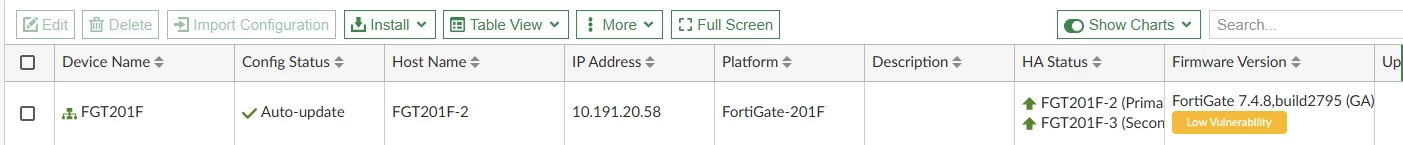

FortiGate is added in FortiManager, andthe connection status is up:

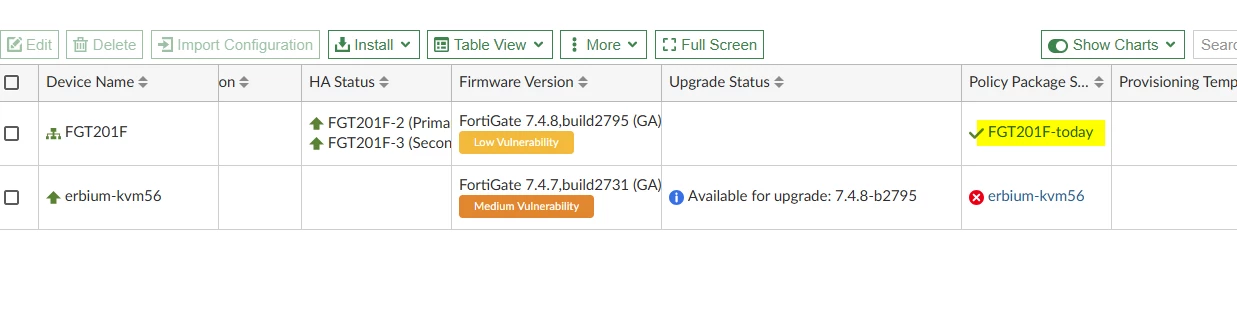

Policy package assigned to the device:

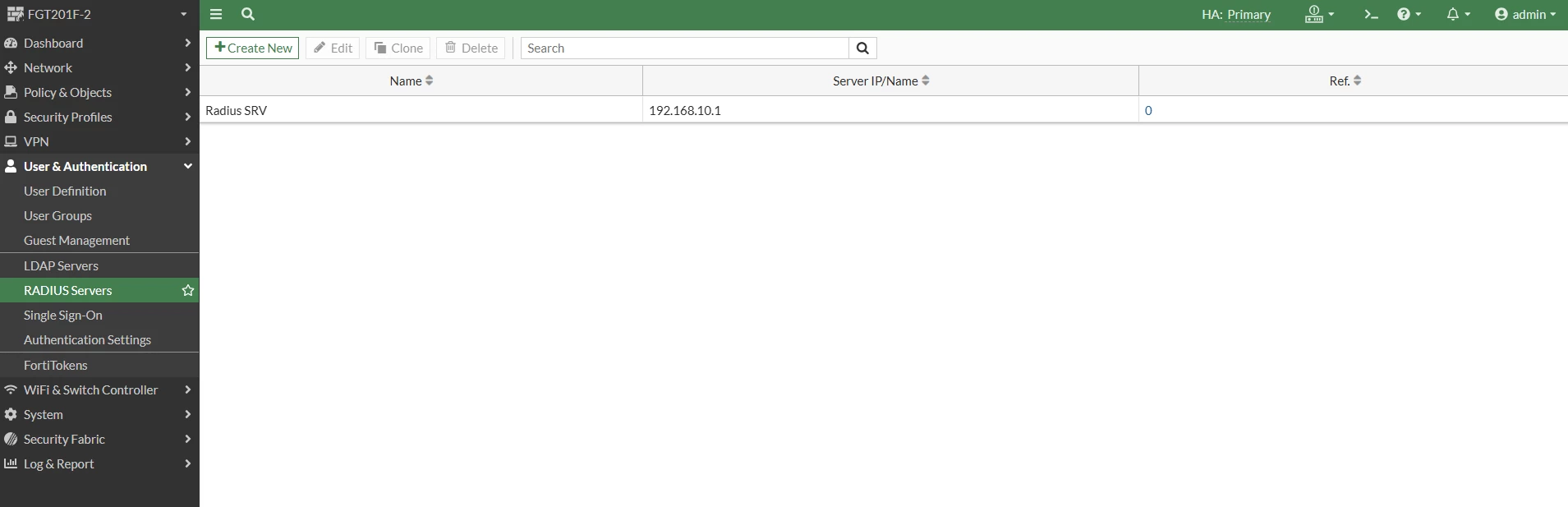

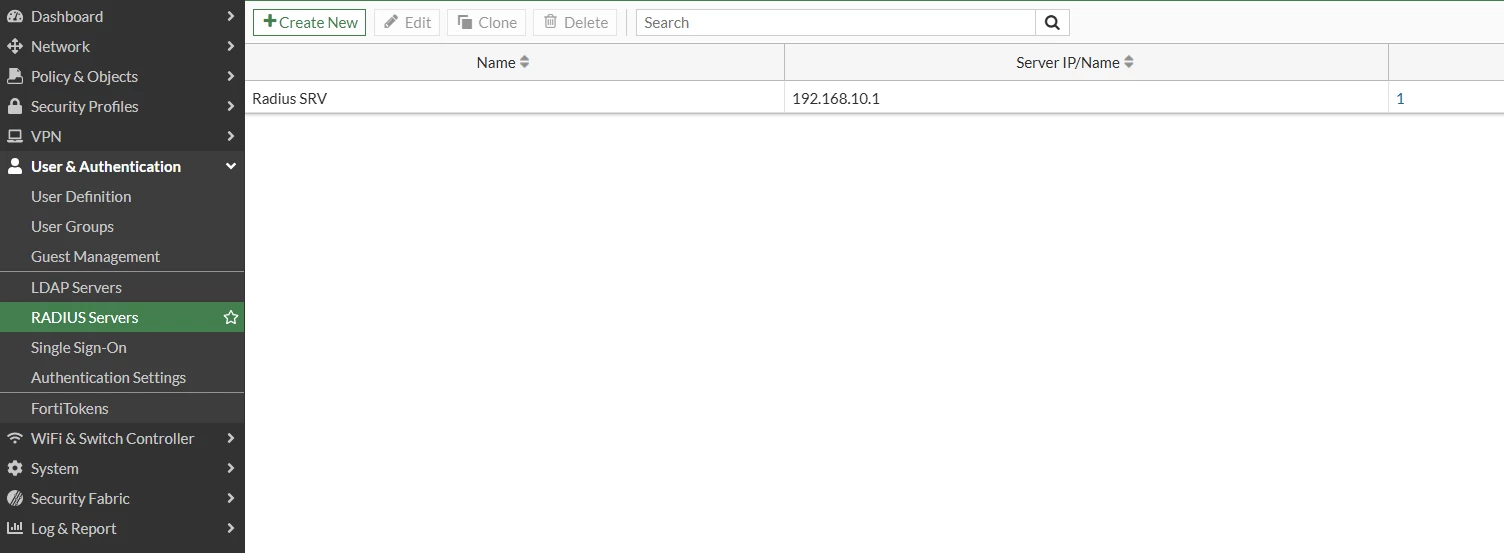

Radius Config present on the FortiGate before policy package push:

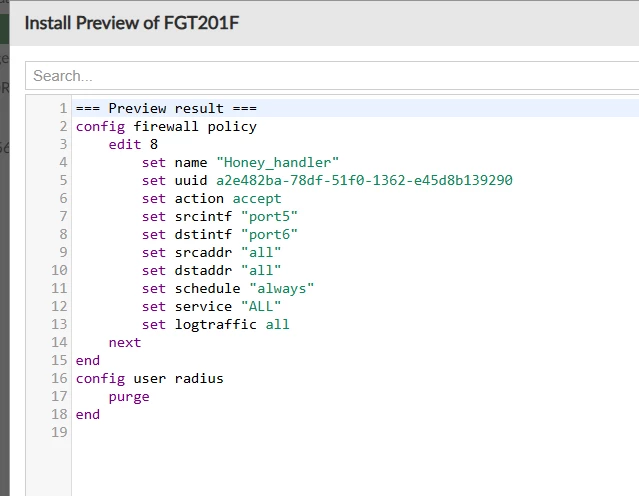

The policy package is pushed by creating a new policy, and the installation preview logs clearly show that the RADIUS server configuration is being purged:

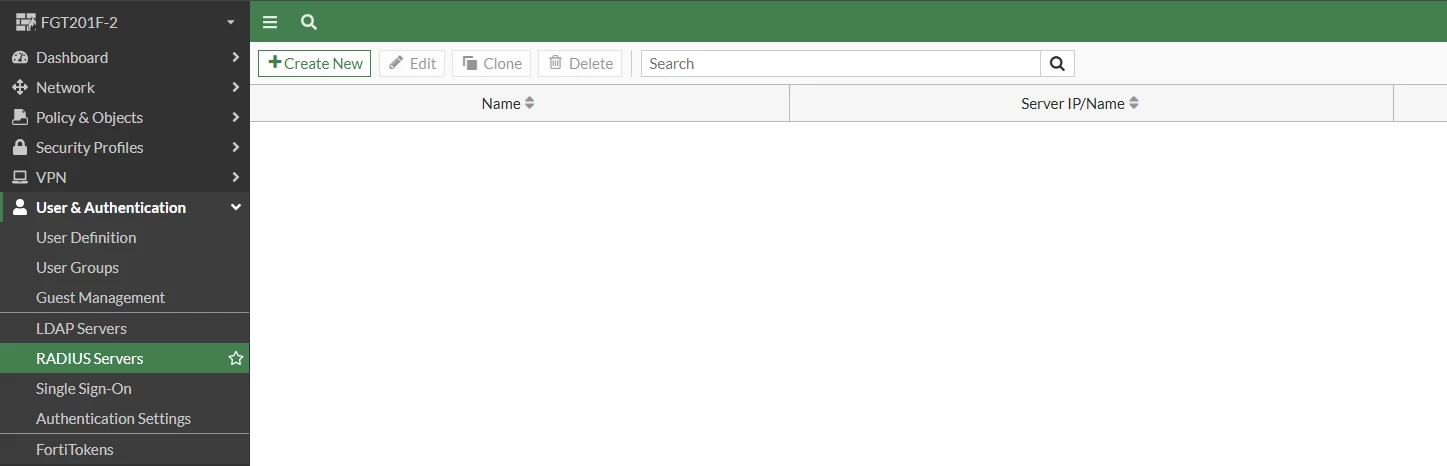

On the FortiGate, the RADIUS configuration is no longer visible as it has already been removed.

FortiManager purges the RADIUS server configuration because it is not referenced in any firewall policy. During a policy package installation, FortiManager is expected to remove radius configurations that have zero references.

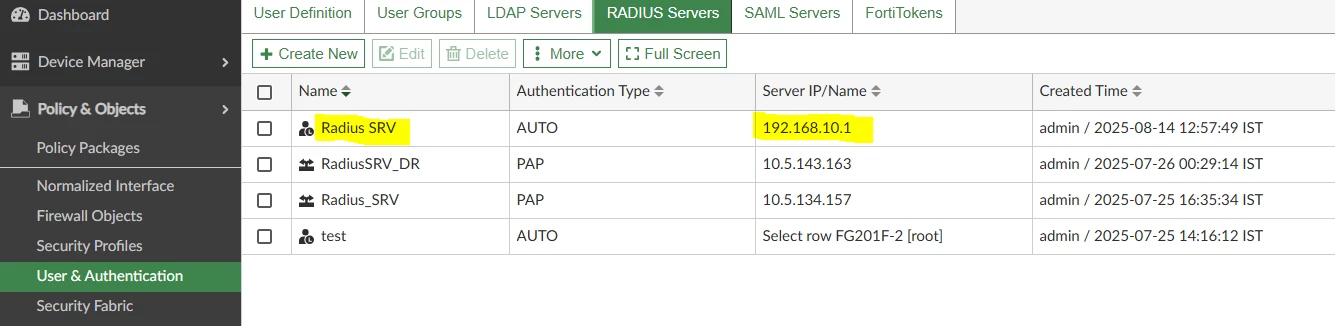

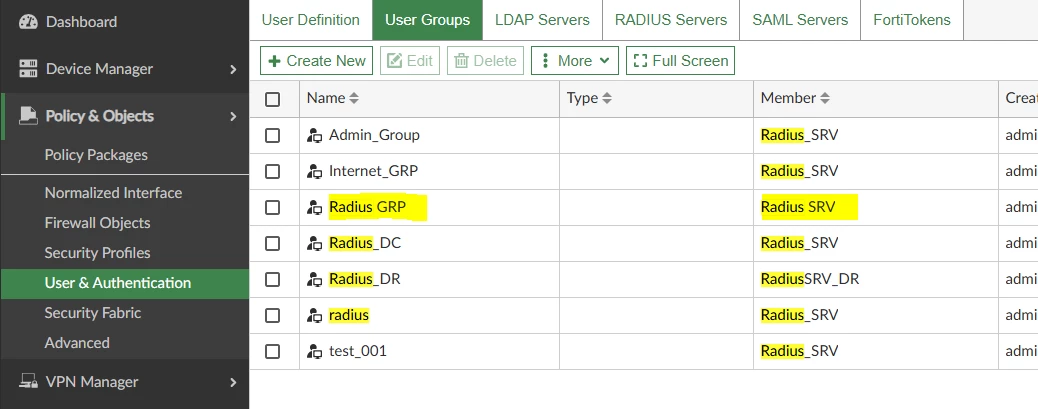

The recommended approach is to create the RADIUS server configuration directly in FortiManager, include it in the relevant policy package, and then use the Install Wizard to deploy the package to the FortiGate.

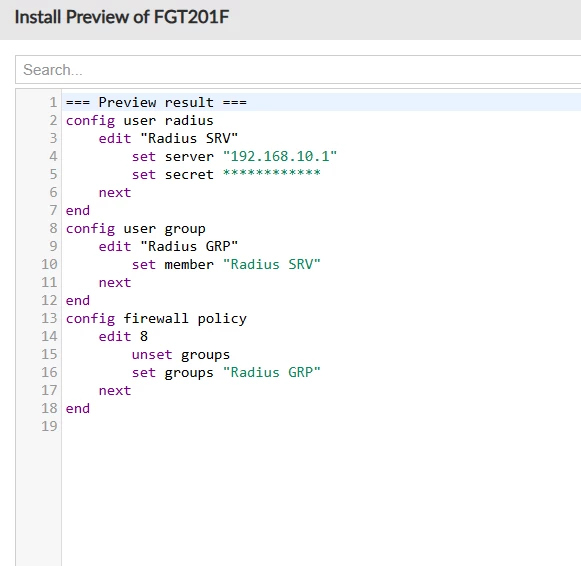

When the policy package is pushed, FortiManager installs the RADIUS configuration, and this time the configuration is not purged.

After the policy package is installed, the RADIUS configuration is present on the FortiGate.

FranFisc1

Visitor III

We have a RADIUS Server defined in FMG.
It is required by the the FGT integrated switch controller
to do RADIUS based NAC/802.1X with FortiSwitches in a MultiVendor environment.

When defining advanced settings like CoA on the Gate, the Config DB is auto.upated correctly on the FMG.
On the next install:
Not the RADIUS server itself, but its advanced settings like accounting servers, CoA enabled etc. are purged
The server is referenced as member of firewall group in Switch Controller Port policies.

Here is the log from an install
Starting log (Run on device)

Start installing
XXX-Y-01(Primary) config user radius
XXX-Y-01(Primary) (radius) edit "ISE01_wired_dotX"
XXX-Y-01(Primary) (ISE01_wired_dotX) config accounting-server
XXX-Y-01(Primary) (accounting-server) purge
XXX-Y-01(Primary) (accounting-server) end
XXX-Y-01(Primary) (ISE01_wired_dotX) unset acct-interim-interval
XXX-Y-01(Primary) (ISE01_wired_dotX) unset radius-coa
XXX-Y-01(Primary) (ISE01_wired_dotX) unset radius-port
XXX-Y-01(Primary) (ISE01_wired_dotX) unset auth-type
XXX-Y-01(Primary) (ISE01_wired_dotX) next
XXX-Y-01(Primary) (radius) end

---> generating verification report
<--- done generating verification report

install finished

FranFisc1

Visitor III

Found the root cause:
When creating the RADIUS Server, FMG creates a “per device mapping” for each managed firewall.
Looks like the Per-Device-mapped settings i.e. “radius-coa” “auth-type” etc. are not inherited initially from the RADIUS Server definition.
