Troubleshooting Tip: Problem when connecting to an application in icloud with deep inspection enabled

Description
This article describes the steps to resolve problem when connecting to an application in icloud with deep inspection enabled.

Useful links:

Fortinet Documentation
https://help.fortinet.com/fos50hlp/54/Content/FortiOS/fortigate-authentication-54/Certificates.htm

External
https://www.ssllabs.com/ssltest/
https://www.digicert.com/help/
https://www.fortinetguru.com/2016/06/installing-a-ca-root-certificate-and-crl-to-authenticate-remote-clients/
https://www.apple.com/certificateauthority/

Solution
Troubleshooting Steps

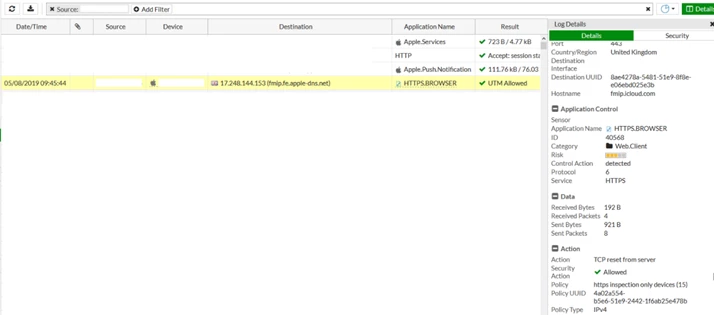

Verify the traffic log to understand why traffic is blocked/dropped.

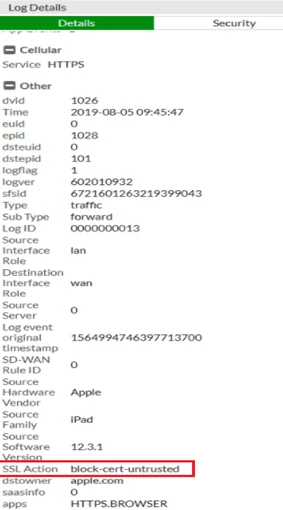

Go to Log & Report -> Forward Traffic and check the Details tab for the corresponding traffic.

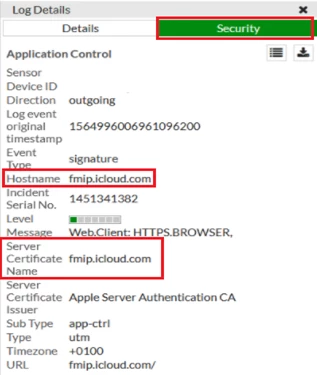

Check the Security tab for information on hostname matched.







Verify the host (fmip.icloud.com) on https://www.ssllabs.com/ssltest/ or https://www.digicert.com/help/
The Apple Root CA (Self-signed) who signed fmip.icloud.com is not trusted by any browsers except Apple.





Solution:



Download the 4 Apple Root CA certificates from https://www.apple.com/certificateauthority/ and install on FortiGate by following How to install CA Root Certificate.





Workaround:

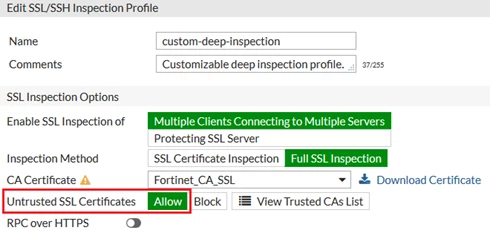

Allow ‘Untrusted SSL Certificates’ and enable ‘Allow Invalid SSL Certificates’ under SSL/SSH Profile used in the policy. However, this is not recommended.
