Troubleshooting Tip: NPU Info Flag Field in FortiOS Sessions

This Article provides some explanations for the NPU flag field in the FortiOS session list.

FortiGate 6.2.x, 6.4.x, 7.0.x, 7.2.x

Below, an example output of the session list for a session captured in FortiOS:

# diagnose sys session list

session info: proto=6 proto_state=01 duration=34 expire=3565 timeout=3600 flags=00000000 sockflag=00000000 sockport=0 av_idx=0 use=3

origin-shaper=

reply-shaper=

per_ip_shaper=

ha_id=0 policy_dir=0 tunnel=/

state=may_dirty npu

statistic(bytes/packets/allow_err): org=295/3/1 reply=60/1/1 tuples=2

orgin->sink: org pre->post, reply pre->post dev=48->6/6->48 gwy=10.1.100.11/11.11.11.1

hook=pre dir=org act=noop 172.16.200.55:56453->10.1.100.11:80(0.0.0.0:0)

hook=post dir=reply act=noop 10.1.100.11:80->172.16.200.55:56453(0.0.0.0:0)

pos/(before,after) 0/(0,0), 0/(0,0)

misc=0 policy_id=1 id_policy_id=0 auth_info=0 chk_client_info=0 vd=4

serial=0000091c tos=ff/ff ips_view=0 app_list=0 app=0

dd_type=0 dd_mode=0

per_ip_bandwidth meter: addr=172.16.200.55, bps=393

npu_state=00000000

npu info: flag=0x81/0x81, offload=4/4, ips_offload=0/0, epid=1/23, ipid=23/1, vlan=32779/0

Flag field here shows a value of 0x81.

If it is converted to binary, 0x81 = 1000 0001 will be get.

Bit 7 and bit 0 are flagged in this example.

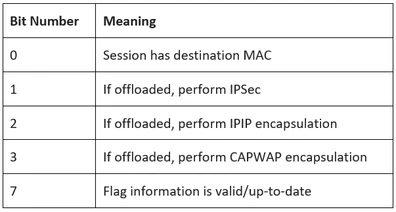

The bit and meaning can be identified with the below table:

In this example, it is possible to refer to bit 7 and bit 0.
