Troubleshooting Tip: L2TP in IPsec connectivity issues

Forum|Forum|4 years ago
August 30, 2021
1 reply
20394 views

Description

This article describes possible issues when trying to establish L2TP in IPsec with a Windows VPN client.

When ike debug is running while trying to connect and the Windows VPN client sends a request to delete IPsec SA and ISAKMP SA, below are possible causes.

diagnose debug reset

diagnose debug application ike -1

diagnose debug application l2tp -1
diagnose debug enable
……
ike 0: comes 10.109.20.8:500->10.109.17.18:500,ifindex=44....
ike 0: IKEv1 exchange=Informational id=0bff1eef8377cfc7/89fa3fd20f302705:bd169de3 len=76
ike 0: in 0BFF1EEF8377CFC789FA3FD20F30270508100501BD169DE30000004CF088093033BB59FC176A7AA54D4905EA1721DE822191D71538384A368B2EC28AB181D9481591DA1AD4FF002B07FBFC48
ike 0:L2TP_0:0: dec 0BFF1EEF8377CFC789FA3FD20F30270508100501BD169DE30000004C0C0000189E219D6874BF26E2C12DE4528A20E7FC4FDD7041000000100000000103040001B08931860000000000000000
ike 0:L2TP_0:0: recv IPsec SA delete, spi count 1
ike 0:L2TP_0: deleting IPsec SA with SPI b0893186
ike 0:L2TP_0:L2TP-p2: deleted IPsec SA with SPI b0893186, SA count: 0
ike 0:L2TP_0:0: del route 10.109.20.8/255.255.255.255 oif L2TP_0(51) metric 15 priority 0
ike 0:L2TP_0: sending SNMP tunnel DOWN trap for L2TP-p2
ike 0:L2TP_0:L2TP-p2: delete
ike 0: comes 10.109.20.8:500->10.109.17.18:500,ifindex=44....
ike 0: IKEv1 exchange=Informational id=0bff1eef8377cfc7/89fa3fd20f302705:ff7eeb85 len=84
ike 0: in 0BFF1EEF8377CFC789FA3FD20F30270508100501FF7EEB8500000054119E5FB03F125032AB31EB8634042BB841775170B47EFAC547A2307D538EA4A3B64CAD7359271F396E82245CC0CE78D370C66A0E778FED66
ike 0:L2TP_0:0: dec 0BFF1EEF8377CFC789FA3FD20F30270508100501FF7EEB85000000540C0000189794A5DA2B604D6F53536810F0CAF564F0CB0FE80000001C00000001011000010BFF1EEF8377CFC789FA3FD20F30270500000000
ike 0:L2TP_0:0: recv ISAKMP SA delete 0bff1eef8377cfc7/89fa3fd20f302705
ike 0:L2TP_0: deleting
ike 0:L2TP_0: flushing
ike 0:L2TP_0: sending SNMP tunnel DOWN trap
ike 0:L2TP_0: flushed
ike 0:L2TP_0: delete dynamic
ike 0:L2TP_0: deleted

For disabling the debugging processes above:

diagnose debug disable

diagnose debug reset

Scope

FortiGate.

Solution

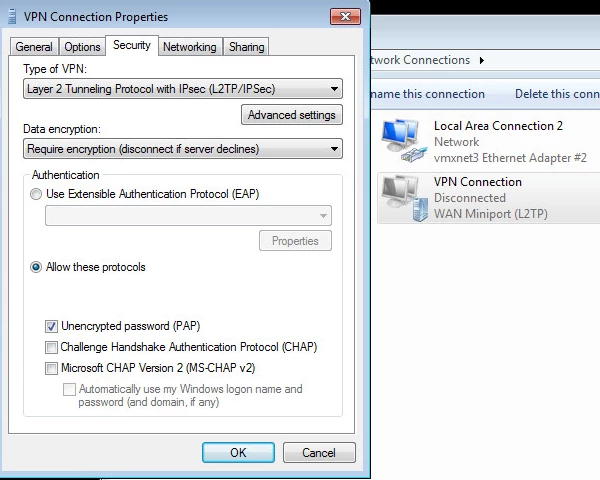

L2TP does not support CHAP or MSCHAP, as a result, it is necessary to only enable PAP in VPN properties:

Windows registry missing: Select 'Start' and type regedit, then navigate to: HKEY_LOCAL_MACHINE -> SYSTEM -> CurrentControlSet -> Services -> PolicyAgent, find 'AssumeUDPEncapsulationContextOnSendRule', select it, and set its value to 2.

If it does not exist, create a new DWORD (32-bit) and name it exactly like this (with caps): 'AssumeUDPEncapsulationContextOnSendRule' then set it to 2 (after creation it is set to 0).

Similarly, create a new key under HKEY_LOCAL_MACHINE -> SYSTEM -> CurrentControlSet -> Services -> RasMan -> Parameters, find 'ProhibitIpSec', select it, and set its value to 0

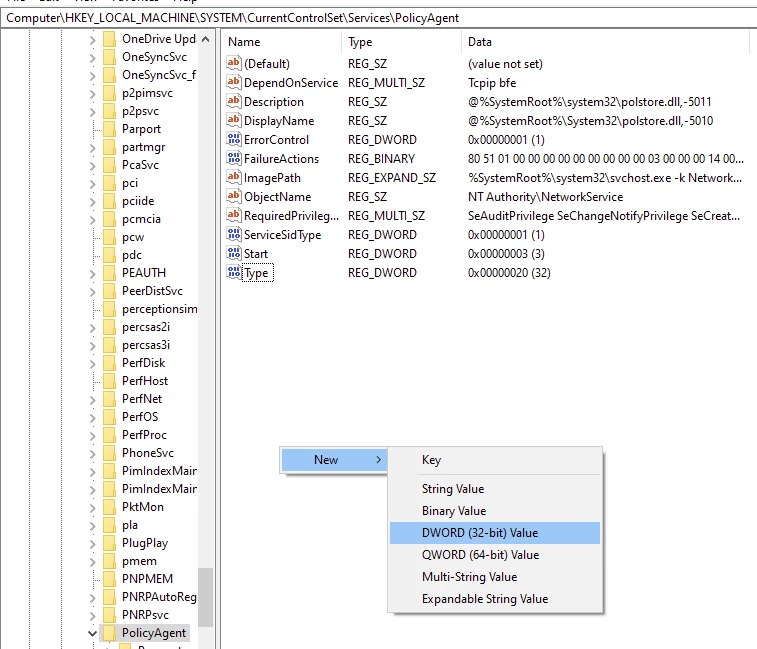

If it does not exist, create a new DWORD (32-bit) and name it exactly like this (with caps): 'ProhibitIpSec' then set it to 0. To create a new DWORD, select a blank white space and select New -> DWORD (32 bit) Value.

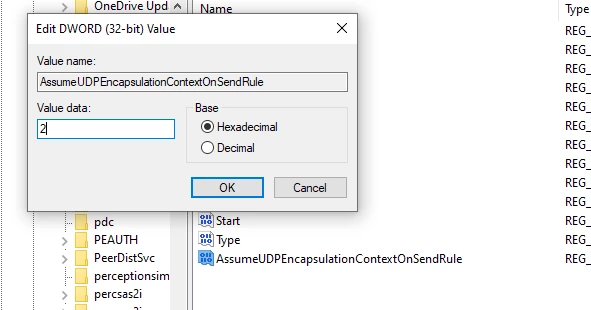

To change the value to 2, 'right-click' on the newly created DWORD and select modify:

After this, reboot the machine:

Incorrect firewall policy in FortiGate, in a case where a GUI template for Dialup, Windows (Native L2TP/IPsec) was not used:

config firewall policy
    edit 1
        set name “L2TP access to LAN”
        set srcintf "L2TP"
        set dstintf "Lan"
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "ALL"
    next

No L2TP traffic or hit count: In a scenario where the IPsec tunnel is being established and IKE negotiations are successfully progressing, but L2TP traffic is seen or the L2TP tunnel is failing after a few seconds, this would happen because of the missing policy.

It is better to run the L2TP debug only at this stage.

diagnose debug application l2tp -1

diagnose debug enable

    edit 2
        set name “activate L2TP”
        set srcintf "L2TP" <--- This is the interface for the IPsec tunnel.
        set dstintf "Internet" <--- Interface for the WAN connection.
        set srcaddr "all"
        set dstaddr "all"
        set action accept
        set schedule "always"
        set service "L2TP"
        set nat enable
    next

Test the connection after disabling NPU offload under VPN tunnel settings by running the following commands:

config vpn ipsec phase1-interface

edit "Tunnel"

set npu-offload disable

end

Enter the username with the correct case as it is case-sensitive.
Windows operating systems do not support IPSec NAT-T security associations to servers that are located behind a NAT device.

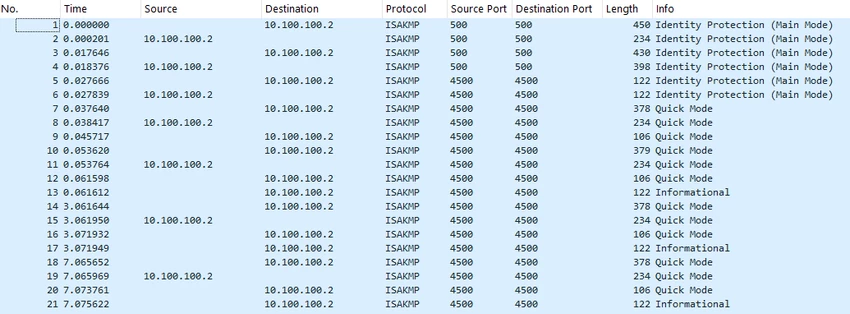

Therefore, if the VPN server is behind a NAT device, a Windows VPN client computer cannot make an L2TP/IPSec connection to the VPN server. With a packet capture filtered with the remote IP address (redacted in this example), only ISAKMP packets are exchanged, and there are no L2TP or ESP packets.

This issue can be solved by creating and configuring the AssumeUDPEncapsulationContextOnSendRule registry value.
Refer to the Microsoft documentation linked in the Related document down this page.

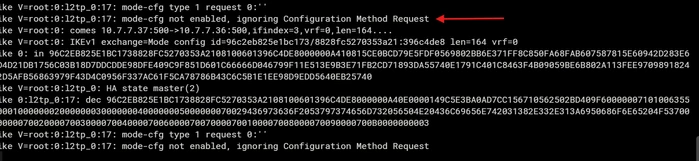

If an IOS device is used to connect and the error 'mode-cfg not enabled, ignoring Configuration Method Request' was observed, make sure the type of VPN on the IOS device is 'L2TP' and not 'IPsec'.

Screenshot 2025-02-19 103821.png
