Troubleshooting tip: IPAM Configuration Issues with DHCP Server on FortiGate

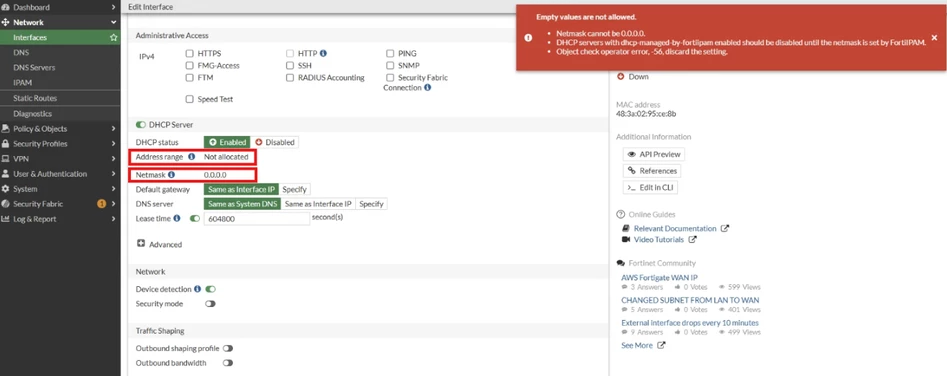

When configuring the IPAM feature on FortiGate system interfaces, the DHCP server settings may not automatically be assigned based on the IPAM configuration for the Security Fabric root FortiGate. The DHCP server address range may remain in a 'not allocated' state, and the netmask may display as '0.0.0.0/0'. If the DHCP server status is enabled manually, an error message stating 'empty values are not allowed' will be displayed.

The IPAM daemon debugs will mention that it fails to create a DHCP server for the configured IPAM interface:

diagnose debug application ipamd -1

diagnose debug enable

Review the debug output for errors such as:

<2247> 08 ipam_set_interface_ip()-251: Setting interface port4 to IP 172.31.0.254 netmask 255.255.255.0
<2247> 08 ipam_prepare_initial_intf_dhcp()-539: Created DHCP server for interface port4
<2247> 02 ipam_dhcp_set_table_to_one_range()-717: Could not clear ip-range table for dhcp server
<2247> 02 ipam_set_interface_ip()-304: Failed to set interface DHCP for port4
<2247> 02 ipam_intf_subnet_request_rh()-204: Failed to apply interface settings, forcing an update for port4
<2247> 04 ipam_send_all_needed()-328

This issue is resolved in FortiOS versions 7.4.10, 7.6.0, and above (known issue ID 1037480).
