Troubleshooting Tip: Inline mode not available as 'fortisandbox-mode' in Antivirus profile

An inline scan strategy in an Antivirus profile can be configured once the antivirus profile is set to proxy-based.

CLI:

config antivirus profile
      edit av-test
           set feature-set proxy
           set fortisandbox-mode inline
          ..
        end

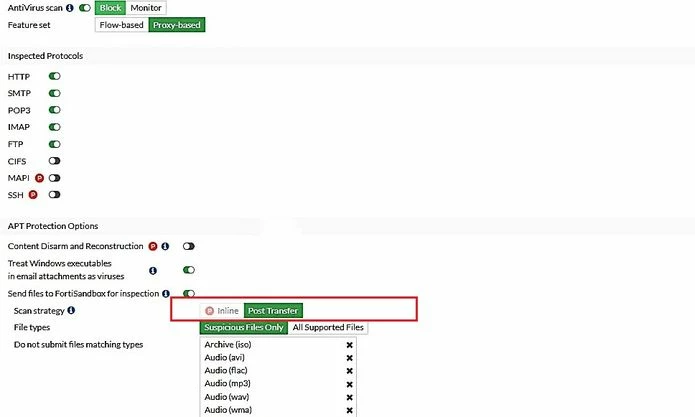

Even after setting up the Antivirus profile in proxy mode, the inline feature may be grayed out.

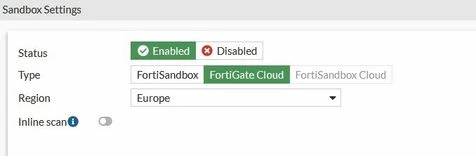

This can happen if the inline scan option is disabled which is default setup in FortiSandbox configuration. Once enabled the inline scan strategy will be enabled in Antivirus profile.

config system fortisandbox
         set status enable
         set inline-scan enable
     end

The inline scanning can be configured with FortiGuard AI-Based Sandbox Service or FortiSandbox with FortiGate Cloud.

config system fortiguard
      set sandbox-region <region>
      set sandbox-inline-scan enable
  end

Once enabled, the inline scan strategy can be used from the Antivirus profile.
