Troubleshooting Tip: How to automate FortiGate IPSEC VPN script using FortiLightHouse
Description
This article describes how to automate IPsec VPN troubleshooting command on FortiGate devices using FortiLightHouse.
Scope
FortiGate.
Solution
FortiLightHouse CLI (FlhCli) is a monitoring utility designed to collect critical outputs from FortiGate firewalls. It gathers the necessary debug information to assist Fortinet TAC and Engineering teams in performing in-depth analysis.
Download the FlhCli tool on the system from the link below:

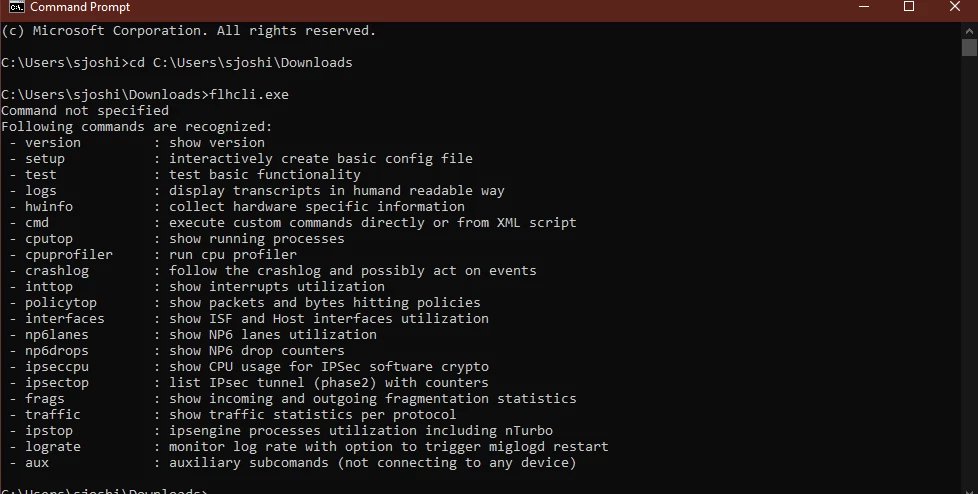

Once the binary file has been downloaded, open the Command Prompt by typing the commands in the search bar. Navigate to the download directory from the Command Prompt & execute flhcli.exe to start the application.

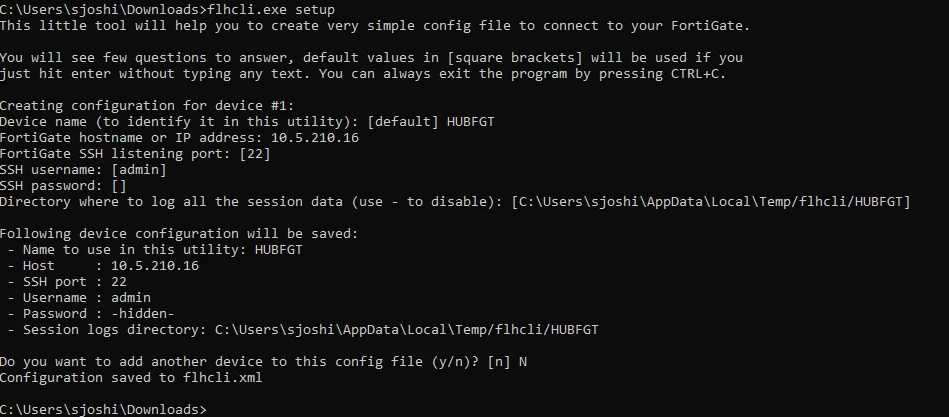

Run the command flhcli.exe setup to create the required XML configuration file.
A monitoring script is required to run against the predefined device.
A sample IPSEC VPN script. It can be adjusted as per the requirement.
<flhscript version="1">
<parameters name="default">
<list name="status">
<query type="pids">
<option name="process">cpu</option>
</query>
</list>
</parameters>
<settings name="default">
<ics>100ms</ics>
<cycleDuration>30s</cycleDuration>
</settings>
<cycle name="performance" parameters="default" settings="default">
<command context="global">get vpn ipsec tunnel summary</command>
<command context="global">diagnose vpn tunnel list</command>
<command context="global">diagnose vpn ike gateway list</command>
<command context="global">diagnose debug console timestamp enable</command>
<command context="global">diagnose debug duration 0</command>
<command context="global">diagnose debug application ike -1</command>
<command context="global">diagnose debug enable</command>
</cycle>
</flhscript>

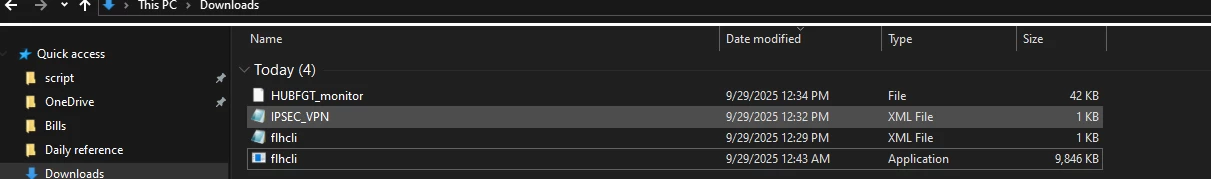

Ensure that the monitoring script and the flhcli XML files are stored in the same directory.
The script output is saved in a file named HUBFGT_monitor.txt. The script is configured with a 30-second cycle interval, which can be adjusted as required.

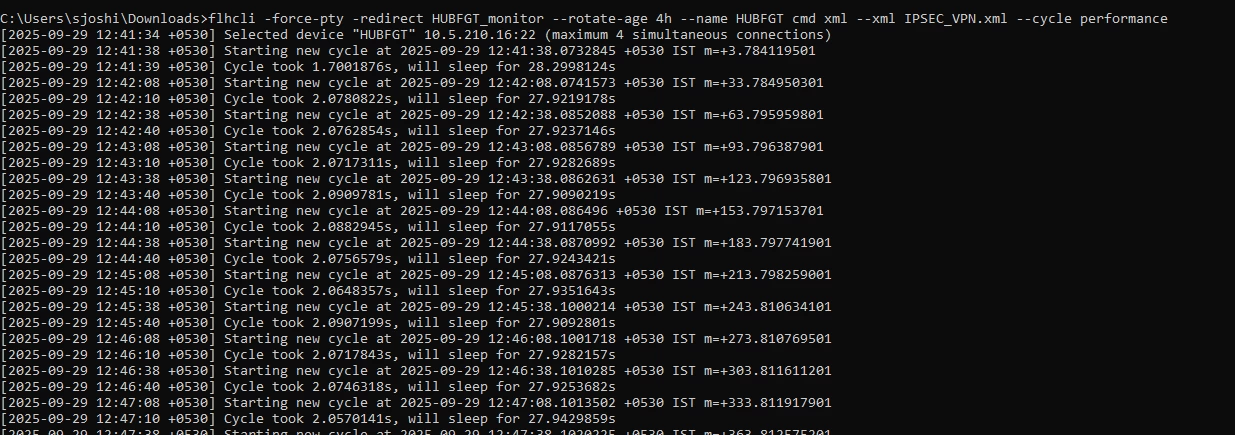

Execute the command below to run the script.
flhcli -force-pty -redirect <<<device_name>>>_monitor --rotate-age 4h --name <<<device_name>>> cmd xml --xml <<script name>> --cycle performance
For example:
flhcli -force-pty -redirect HUBFGT_monitor --rotate-age 4h --name HUBFGT cmd xml --xml IPSEC_VPN.xml --cycle performance
