Troubleshooting Tip: FortiGate is using management interface IP to NAT outgoing traffic via internet interface

When an interface is selected as the exit interface for the traffic, and 'Use Outgoing Interface Address' is used as the NAT behavior in the policy:

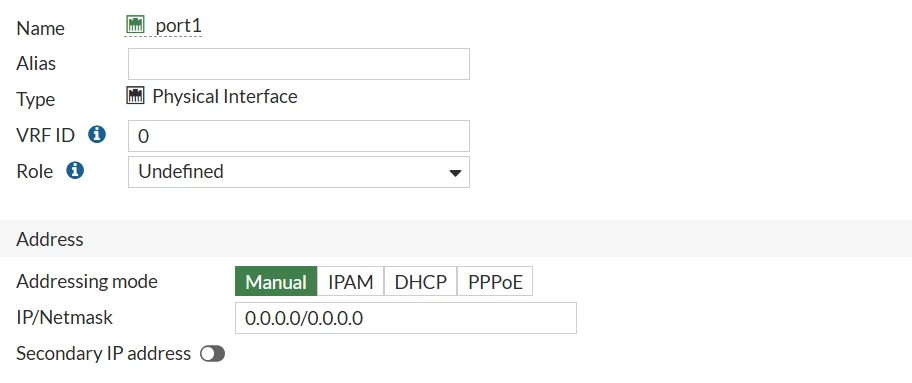

But the interface does not have an assigned IP address:

2026-01-07 18:45:08 id=65308 trace_id=102 func=__ip_session_run_tuple line=3406 msg="SNAT 10.176.22.31->192.168.1.99:62099"
2026-01-07 18:45:08 id=65308 trace_id=101 func=get_new_addr line=1205 msg="find SNAT: IP-192.168.1.99(from IPPOOL), port-62
114"
2026-01-07 18:45:08 id=65308 trace_id=101 func=fw_forward_handler line=979 msg="Allowed by Policy-9: SNAT"
2026-01-07 18:45:08 id=65308 trace_id=101 func=__ip_session_run_tuple line=3406 msg="SNAT 10.176.22.31->192.168.1.99:62114"

In this case, the IPPOOL IP-192.168.1.99 is from the default addressing of the management interface, but in case the management interface is configured without an IP address (0.0.0.0/0), the next interface will be used.

It is possible to verify the interface selection order using the command: diagnose netlink interface list.

FG200F-7 # diagnose netlink interface list

if=lo family=00 type=772 index=1 mtu=16436 link=0 master=0
ref=10 state=present fw_flags=0 flags=loopback

if=dummy0 family=00 type=1 index=2 mtu=1500 link=0 master=0
ref=7 state=present fw_flags=0 flags=broadcast noarp

if=mgmt family=00 type=1 index=3 mtu=1500 link=0 master=0
ref=71 state=start present fw_flags=0 flags=up broadcast run multicast

if=ha family=00 type=1 index=4 mtu=1500 link=0 master=0
ref=19 state=start present no_carrier fw_flags=0 flags=up broadcast multicast

if=nturbo_rx family=00 type=1 index=5 mtu=1500 link=0 master=0
ref=7 state=present fw_flags=0 flags=up broadcast multicast

if=nturbo_tx family=00 type=1 index=6 mtu=1500 link=0 master=0
ref=7 state=present fw_flags=0 flags=up broadcast multicast

if=port1 family=00 type=1 index=7 mtu=1500 link=0 master=0
ref=62 state=start present fw_flags=73800 flags=up broadcast run multicast

Excluding the software interfaces, the first in selection order is mgmt, thus the IP of the mgmt interface will be used.

A similar behavior and example of this is when the traffic is traversing through an IPsec tunnel. By default, the overlay interface of the IPsec VPN has no assigned IP interface. Further discussion and samples can be found in the articles below:

Technical Tip: Implement Source-NAT for IPsec interface

Technical Tip: Source IP for self-originating IPsec tunnel traffic
