Troubleshooting Tip: FortiGate GUI shows 'unrated' category and is blocked by the Web Filter profile

Description

This article describes an issue that occurs when end-users behind FortiGate try to access the FortiGate GUI or other websites using an IP address such as https:10.1.x.x:9443 where the applied security profile has a Web Filter and the website is categorized as unrated.

Scope

FortiOS.

Solution

There are a few solutions to overcome this issue with an unrated category for IP address based access.

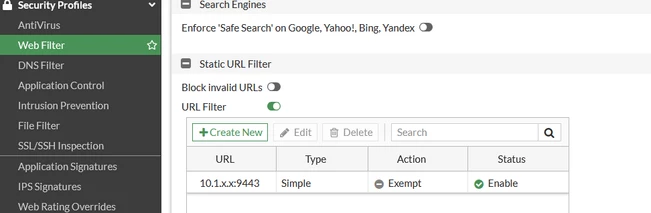

1. Create a static URL filter to exempt that particular URL, as follows: Web Filter -> Default (relevant profile that applied to policy) -> Static URL Filter -> URL Filter.

To configure URL filters in the CLI:

config webfilter urlfilter
 edit <ID>
        config entries
            edit 1
                set url <url>
                set referrer-host <url>
                set type {simple | regex | wildcard}
                set action {block | allow | monitor | exempt}
                set status {enable | disable}
         end
    end
end

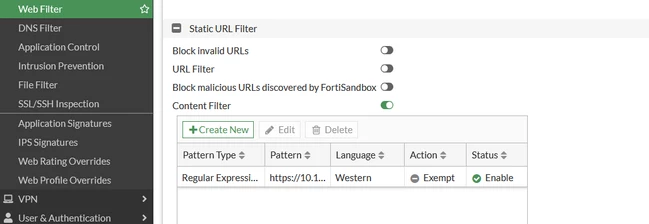

2. Create a regular expression and exempt that URL if the static URL filter does not work: Web Filter -> Default(relevant profile that applied to policy) -> Static URL Filter -> Content Filter.

To configure web content filter in the CLI:

config webfilter content
 edit <ID>
      set name "webfilter"
      config entries
         edit <URL Name>
           set pattern-type regexp
           set status enable
           set lang western
           set score 10
           set action exempt
         next
      end
   next
end

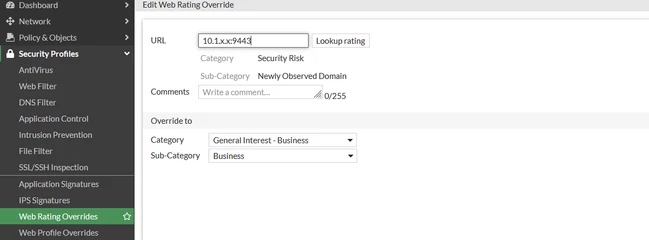

3. Move the URL to another category that allows connection (such as moving the URL to General Interest -> Business -> Business-> Web rating Override -> create new -> paste URL in lookup rating and override to relevant allowed category.
