Troubleshooting Tip: FortiGate does not send the Certificate chain (Handshake_Type=Certificate) on connection to VIP in FlowMode

Forum|Forum|7 months ago
February 9, 2026
0 replies
444 views

Description

This article describes the use of multiple certificates in an SSL profile in replace mode, allowing multiple sites to be deployed on the same protected server IP address.

The SSL inspection is going to be based on matching the SNI in the certificate.

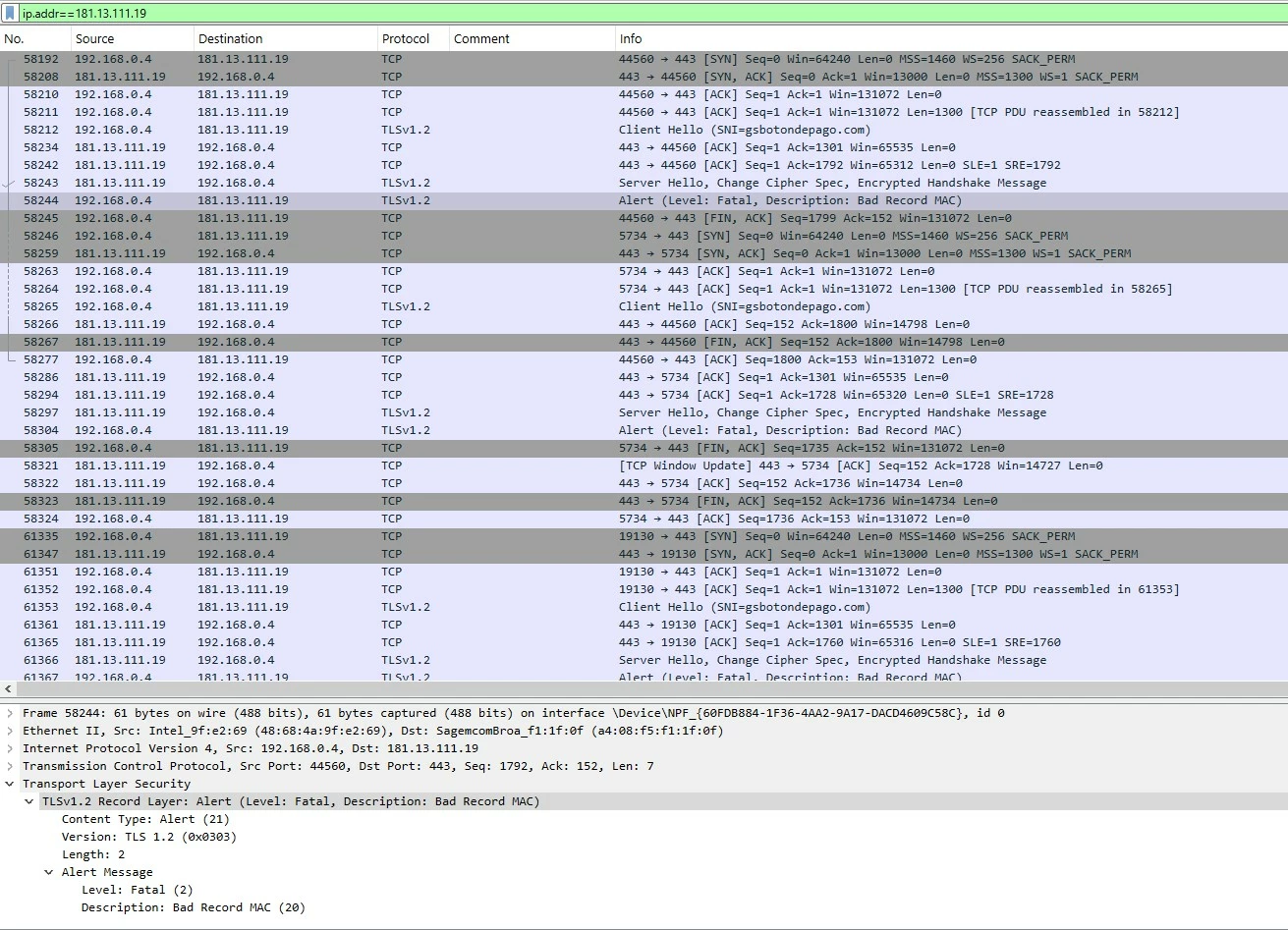

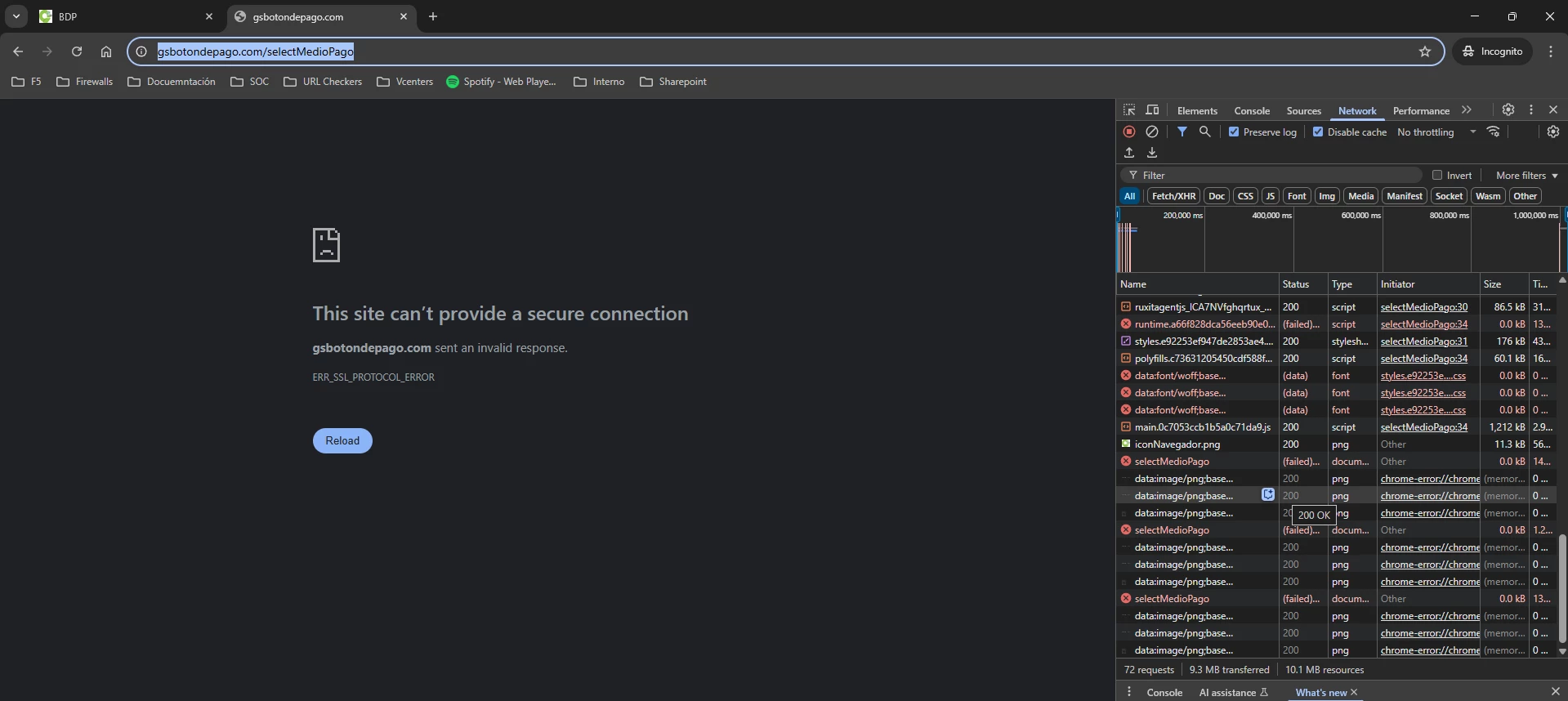

But in this scenario, most of the TLS/SSL connection fails against a VIP ('NAT-181.13.111.19:443/TCP').

Scope

FortiOS v7.2.10,build1706.

IPS Attack Engine 7.00356.

Solution

Configuration:

config firewall vip
edit "NAT-181.13.111.19:443/TCP"
set comment "VS-PCI"
set extip 181.13.111.19
set mappedip "172.16.0.111"
set extintf "Vlan 150"
set nat-source-vip enable
set portforward enable
set extport 443
set mappedport 443
next
end

config firewall ssl-ssh-profile
edit "SSL Inspection test"
set comment "SD-120582"
config https
set ports 443
set status deep-inspection
end
...
set server-cert-mode replace <------
set server-cert "pagar.rapipago.com.ar" "tokenizacion_gire_com" "star_api_gire_com" "gsbotondepago_com" <------
set ssl-negotiation-log enable
set ssl-server-cert-log enable
set ssl-handshake-log enable
next
end

config firewall policy
edit 637
set name "PCI"
set srcintf "virtual-wan-link"
set dstintf "Vlan 60"
set action accept
set srcaddr "IPs-DYNATRACE" "BORRAR-IPPUBLICA" "borrar-ippulboca02" "borrar-03"
set dstaddr "NAT-181.13.111.19:443/TCP"
set schedule "always"
set service "HTTPS" "HTTP"
set utm-status enable
set ssl-ssh-profile "SSL Inspection test"
set ips-sensor "IPS_PCI-SIGNS"
set logtraffic all
set auto-asic-offload disable
set np-acceleration disable
next
end
