Troubleshooting Tip: FortiGate configuration to allow EMS to import a Web Filter profile from FortiOS

This article explains a case where, after configuring the FortiClient EMS to import a Web Filter profile from FortiOS, the traffic is dropped by the local-in policy.

FortiGate and EMS FortiClient

Importing a Web Filter profile from FortiOS requires HTTPS access on the FortiGate interface.

In cases where trusted hosts are configured for the user, it is necessary to add the EMS IP to the trusted host list.

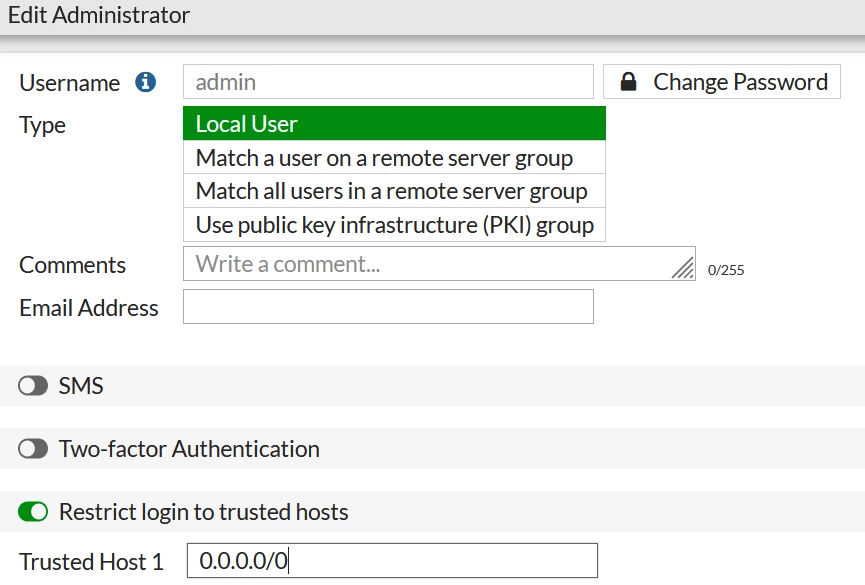

To identify the trusted hosts, go to System -> Administrators, select the administrator account to edit, check Restrict login to trusted hosts is enabled, and add, if it's necessary, the EMS IP addresses.

To do this in the CLI, run the following:

# config system admin

edit <administrator-name>

set trustedhost1 <ip and subnet>

end

The EMS FortiClient is using the HTTPS admin port configured on the FortiGate to import the profile.

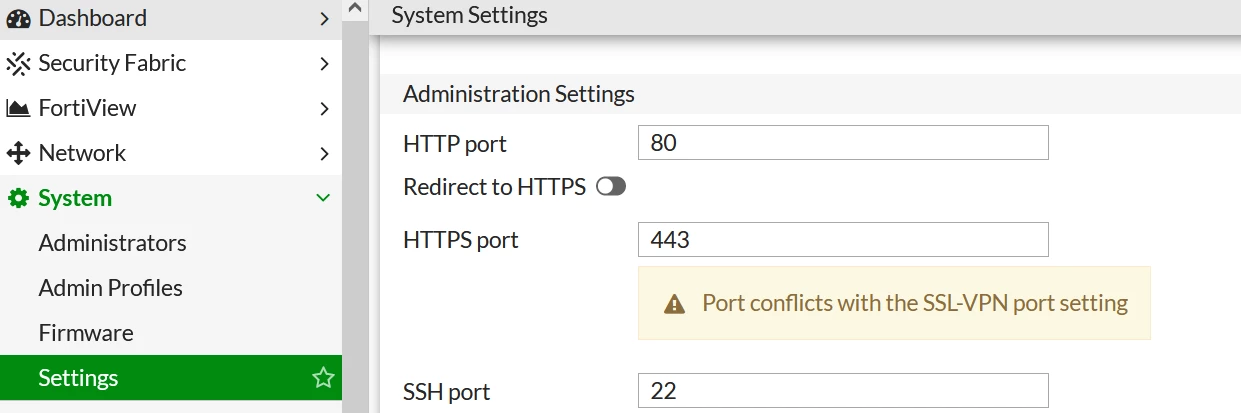

Go to System -> Settings -> Administrator Settings and check the HTTPS port.

To do this in the CLI, run the following:

# config system global

set admin-sport <port>

Related article:

https://docs.fortinet.com/document/forticlient/7.0.1/ems-administration-guide/455661/importing-a-web-filter-profile-from-fortios-or-fortimanager
