Troubleshooting Tip: FortiGate changing SDP media IP & port randomly when SIP-ALG is enabled

It has been observed that when SIP-ALG is enabled and SIP traffic passes through FortiGate firewall, the SDP media IP & port information is altered if the destination port is other than 5060.

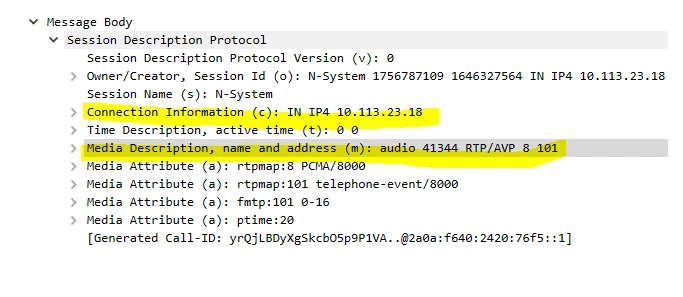

Ingress SDP packet:

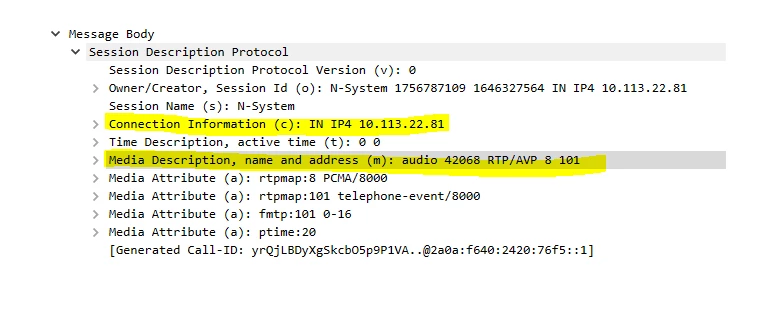

Egress SDP packet:

This happens because SIP-ALG only listens on destination port 5060. For SIP traffic on ports other than 5060, SIP ALG does not handle it, even if a VOIP-profile is configured for that policy.

When 'set helper sip' is configured under the service, SIP traffic is also not handled by SIP-ALG but by SIP kernel helper, which is no longer supported.

edit "SIP_5060-5100"

    set helper sip

    set udp-portrange 5060-5100

next

Currently, FortiGate firewall SIP-ALG supports two ports at maximum. This can be configured with the following command:

config system settings

    set sip-udp-port 5060 5070

    set gui-voip-profile enable

end
