Troubleshooting Tip: FortiGate and FortiAnalyzer Connectivity Issues with Error ‘Failed to Get FAZ's Status - Hostname Resolution Failed’

In this scenario, FortiGate and FortiAnalyzer firmware versions are compatible.

When testing the connectivity between FortiGate and FortiAnalyzer, the following errors may occur:

CLI:

execute log fortianalyzer test-connectivity

Unknown host:

Failed to get FAZ's status. Hostname resolution failed. (-21)

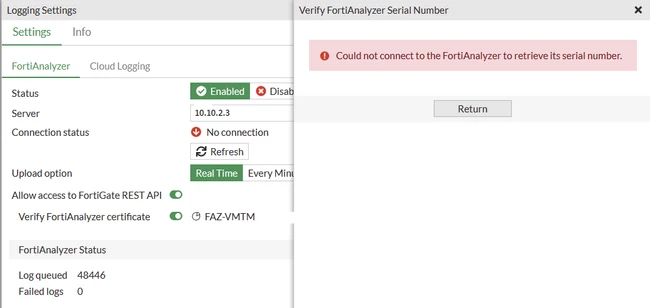

GUI:

The following errors are seen in the fgtlogd debug output:

2024-09-04 09:10:20 <21994> __faz_open_oftp()-315: Failed to get faz address for

2024-09-04 09:10:20 <21994> fgtlog_start_rmt_conn()-1849: could not create oftp connection for remote server global-faz

This issue has been resolved in FortiOS version 7.4.9 and 7.6.1.

Logs required by FortiGate TAC for Investigation:

Debugs:

diagnose debug application fgtlogd 255

diagnose debug application miglogd 255

diagnose debug application oftpd 8 X.X.X.X   <- X.X.X.X is the FortiGate IP. Alternatively, a device name can be used, but an IP is preferred.

diagnose sniffer migsock filter name=global-faz

diagnose sniffer migsock ssl-trace enable

diagnose sniffer migsock start

diagnose debug console timestamp enable

diagnose debug enable

execute log fortianalyzer test-connectivity

diagnose test application fgtlogd 1

diagnose test application fgtlogd 2

diagnose test application fgtlogd 4

diagnose test application fgtlogd 9

To disable the debugs, use the command 'diag debug disable'.

Sniffers:

diag sniffer packet any "host <Fortianaylzer_IP>" 6 0 l

TAC Report:

execute tac report

The configuration file of the FortiGate.

Workaround:

Reboot the FortiGate affected.
