Troubleshooting Tip: Fortigate 6000F GUI Interface Bandwidth displays accumulated instead of real-time utilization after an upgrade
| Description | This article describes an issue with the GUI interface Bandwidth widget after an upgrade to v7.2.12, v7.4.11, and v7.6.6. |
| Scope | FortiGate 6000F. |

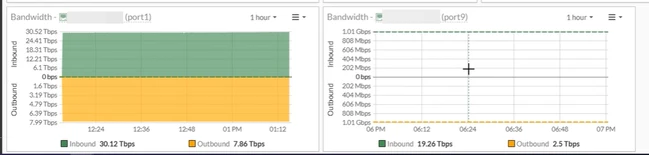

| Solution | Access the FortiGate 6000F via Master FIM and navigate to VDOM -> Select VDOM -> Dashboard -> Status. Interface Bandwidth shows it exceeds the maximum physical link speed of the interface and instead shows cumulative values.    Workaround: Individual Interface Bandwidth can still be viewed when accessing a specific FPC. Follow the steps in the Technical Tip: Managing Specific FPC on FortiGate 6000F.
This is a known issue with ID 1251014. It will be resolved on v7.4.12, v7.6.7, and v8.0. |
