Troubleshooting Tip: FIPS-CC mode enabled, secondary VM Checksum empty after serial number and HA Page fails to load in GUI

Description

This article describes an issue where, with FIPS-CC mode enabled in FortiGate HA, the System -> HA page fails to load in the GUI on both primary and secondary devices.

Scope

FortiGate 7.6.

Solution

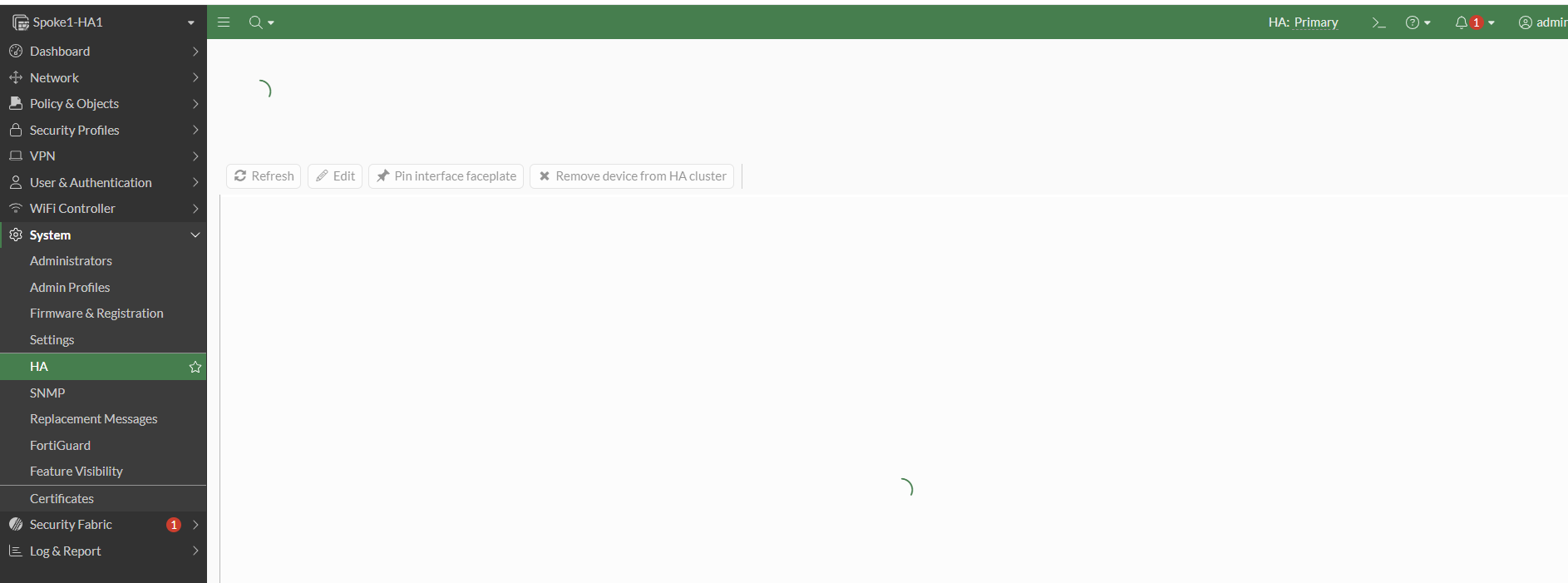

With FIPS-CC mode enabled on FortiGate HA, the System -> HA page fails to load in the GUI on both primary and secondary devices.

Spoke1-HA1 # get system  ha status
HA Health Status: OK
Model: FortiGate-VM64-KVM
Mode: HA A-P
Group Name: fortinet
Group ID: 10
Debug: 0
Cluster Uptime: 0 days 0h:47m:32s
Cluster state change time: 2026-05-18 06:15:32
Primary selected using:
    <2026/05/18 06:15:32> vcluster-1: FGVMxxxxxxxxx049 is selected as the primary because its uptime is larger than peer member FGVMxxxxxxxxx556.
    <2026/05/18 05:30:30> vcluster-1: FGVMxxxxxxxxx049 is selected as the primary because it's the only member in the cluster.
ses_pickup: disable
override: disable
Configuration Status:
    FGVMxxxxxxxxx049(updated 3 seconds ago): in-sync
    FGVMxxxxxxxxx049 chksum dump: 11 5c b7 7c 24 35 a0 ee 4d 22 b5 70 c2 11 68 a8
    FGVMxxxxxxxxx556(updated 1 seconds ago): out-of-sync
    FGVMxxxxxxxxx556 chksum dump: 48 3c 3d 0e b8 49 67 01 b5 50 ec a8 7c 6a 49 74

The HA checksum cluster on the primary unit shows checksum verification missing for the secondary unit, and vice-versa.

Spoke1-HA1 # diagnose  sys  ha  checksum cluster
================== FGVMxxxxxxxxx049 ==================
is_manage_primary()=1, is_root_primary()=1
debugzone
global: 26 5e e1 6c 43 5c 1d 19 de d0 46 25 c2 2b fa f8
root: 86 e7 80 c2 8e c6 b7 29 1b 93 34 b6 af 3e b7 30
all: 11 5c b7 7c 24 35 a0 ee 4d 22 b5 70 c2 11 68 a8
checksum
global: 26 5e e1 6c 43 5c 1d 19 de d0 46 25 c2 2b fa f8
root :

This is due to a known issue reported under ID 1215724 where the IPsec tunnel (enabled automatically for FIPS-CC mode) protecting the HA links fails to establish when one firewall is in FIPS-CC mode. This is caused by the hardcoded DH groups (31 or 32) in the automatic configuration.

This issue is resolved in FortiOS version 8.0 and FortiOS 7.6.7.
