Troubleshooting Tip: FGSP cluster sandwiched between two cloud routers: achieving full ECMP load sharing across all members

Observed behavior (before the fix):

• ECMP hashed traffic to only 1 FortiGate consistently.
• New TCP sessions were unknown to the other members for the first ~30 seconds (visible in flow traces).
• Asymmetric return traffic during that window hit a member that had no session yet → drops or incorrect handling.

Fix: The root cause is that the session-pickup-delay is enabled. Disable the delay on all four cluster members:

Topology:

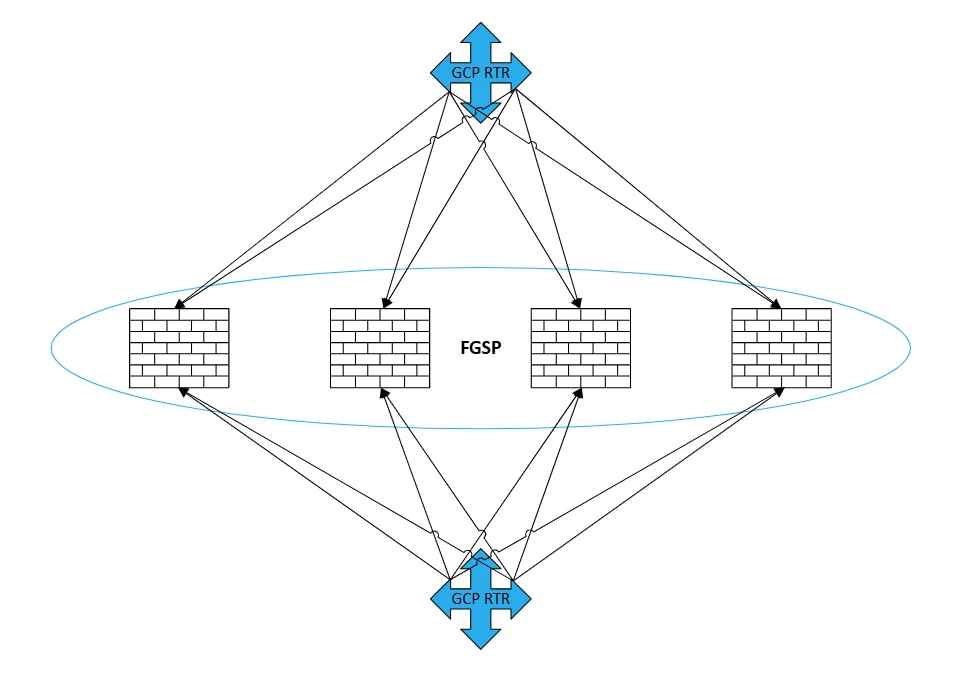

FGSP active-active cluster sandwiched between two cloud routers

Non-working scenario (with session-pickup-delay enabled).

1. New connection arrives → hashed to FortiGate #1.
2. FortiGate #1 creates the session but waits 30 seconds before syncing to the cluster.
3. Reply traffic returns → hashed to FortiGate #3 (normal ECMP).
4. FortiGate #3 has no session yet → packet is dropped or handled incorrectly until the 30-second sync arrives.



Working scenario (after session-pickup-delay disable).

1. New connection arrives → hashed to FortiGate #1.
2. FortiGate #1 creates the session and syncs it immediately (first packet) to all other members.
3. Reply traffic returns → hashed to FortiGate #3 (still normal ECMP).
4. FortiGate #3 already knows the session → forwards correctly, no blind window.

After this change, asymmetric paths no longer cause drops, even if load distribution remains uneven due to ECMP hashing.

Note:

The session-pickup-delay option exists to reduce sync overhead for short-lived sessions. When enabled, the FortiGate that receives the first packet waits 30 seconds before syncing the TCP session. Short sessions that expire before 30 seconds are never synced.
