Troubleshooting Tip: Error 'SSL-VPN slow file transfer issue'

After verifying the compatibility between FortiGate and FortiClient, look at some recommendations to improve file transfer when connected to SSL VPN:

1. Verify that DTLS is enabled both on FortiGate and FortiClient.

On FortiGate:

config vpn ssl settings
    set dtls-tunnel enable
end

On FortiClient:

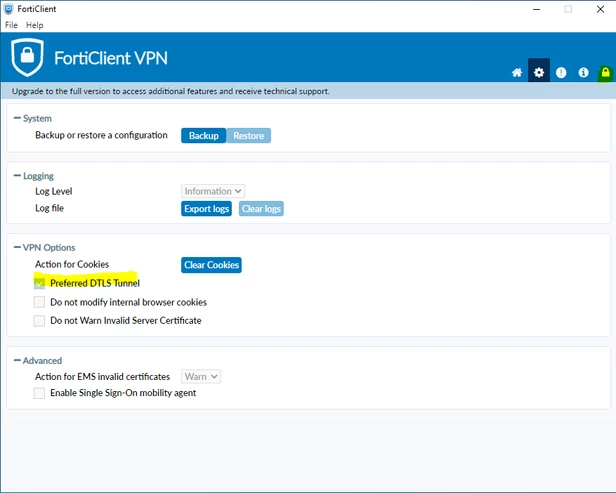

If the Preferred DTLS option is greyed out and unable to enable the checkbox, the lock icon (highlighted) needs to be selected to unlock the settings.

After unlocking the settings, the Preferred DTLS Tunnel option should be able to select.

When FortiClient is managed by FortiClient EMS, the DTLS option cannot be enabled directly on the FortiClient console. Changes need to be pushed by the administrator from FortiClient EMS: Technical Tip: How to enable DTLS option from FortiClient EMS.

If the user(s) are still using TCP, check FortiClient settings to ensure that the option 'Preferred DTLS Tunnel' is checked in the settings.

2. Make sure there is no packet loss between sites.

3. Make sure SSL VPN policies do not have any UTM/security profiles.

   If there is any, then test it without them.

4. Verify the transfer speed after disabling NPU-offloading using the related VPN policy.



config firewall policy

    edit (id)

        set auto-asic-offload disable

end

5. Perform the iPerf test on the host machine, which is connected to the SSL VPN:

All the iPerf tests will be performed using an internal server as the iPerf server, which will be used for file transfer.

Try to generate traffic using parallel sessions to the server using the following command:

iperf3 -c x.x.x.x -P 10

Here, P stands for --parallel # number of parallel client streams to run.

Try to increase TCP Window size using the following commands to monitor the bandwidth if the amount of data being transferred is larger:

iperf3 -c  x.x.x.x -w 8KB

iperf3 -c  x.x.x.x -w 64KB

iperf3 -c  x.x.x.x -w 8MB

iperf3 -c  x.x.x.x -w 16MB

Here, w stands for --window #[KMG] TCP window size (socket buffer size).

To circumvent TCP limitations on the client host, it is possible to try the UDP test with the desired bandwidth using the following command:

    Iperf3 -c x.x.x.x -u -b 50M

Here 'u' stands for UDP traffic and -b stands for --bandwidth #[KMG][/#] target bandwidth in bits/sec (0 for unlimited).

6. Changing the TLS protocols being used on FortiGate for SSL VPN is possible.

config vpn ssl settings

    set ssl-min-proto-ver tls1-1

end

Disconnect from the VPN, shut down the FortiClient application, open it, and connect to the VPN again.

7. Try changing the MSS value on the related VPN policy.

config firewall policy

    edit (id)

        set tcp-mss-sender <>

        set tcp-mss-receiver <>

end

8. Try lowering TCP MSS/MTU on the end PC, changing MTU is easier, but it will cause network troubles to the user with other services:

Note: Depending on the privileges the PC user has, it may be necessary to open the Command Prompt in Administrator Mode.

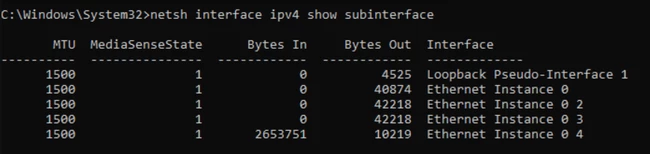

C:\Windows\System32>netsh interface ipv4 show subinterface

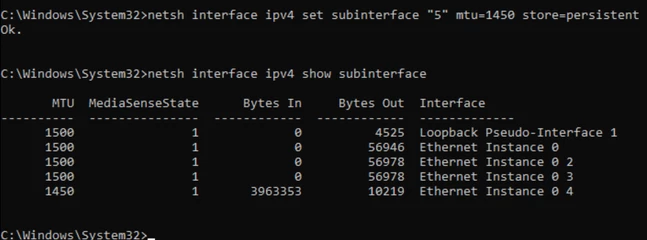

C:\Windows\System32>netsh interface ipv4 set subinterface “interface_name or index” mtu=<value> store=persistent

After changing the value, restart the machine. Revert the change if it is not making any impact.

9. Change the port number of the SSL VPN. The default port is 443. It is possible to change to another port if there is latency on that port because of the ISP.

config vpn ssl settings

    set port <port-number>

end

On FortiClient:

Change the customized port to match.

If the above steps do not make any improvement, the following counters and interface stats can be collected to investigate further.

10. Check whether Tx drops are increasing or not on the SSL VPN interface while doing file transfer.

FortiGate # fnsysctl ifconfig ssl.root
ssl.root                      Link encap:Unknown
                        UP POINTOPOINT RUNNING NOARP MULTICAST MTU:1500 Metric:1
                        RX packets:0 errors:0 dropped:0 overruns:0 frame:0
                        TX packets:0 errors:0 dropped:3 overruns:0 carrier:0
                        collisions:0 txqueuelen:1000
                        RX bytes:0 (0 Bytes) TX bytes:0 (0 Bytes)

Note: A few TX drops is expected. When the tunnel is torn down, the server/peer side may briefly continue to send traffic, and those packets will be dropped by FortiGate and counted as TX drops.

11. Check SSL VPN mux-stats frequently while doing the file transfer.

FortiGate # diagnose vpn ssl mux-stat
name=ssl.root id=0x1
mux count = 0x1
mux dat count = 0
tx dropped = 3
queue dropped = 0
unwanted dropped = 1
multicast dropped = 2
addr not found = 0
max queue length observed = 0
total queue length observed = 0

If the 'queue dropped' counter is increasing continuously while doing a transfer, it indicates slowness in SSL VPN performance.

If there is DTLS enabled:

dtls found = 65747132
dtls pkt length err = 4786
dtls pkt decrypt err = 0
dtls pkt encrypt err = 0
dtls pkt framing err = 0
dtls non-ip payload = 0
dtls multiple payload = 0
dtls src-ip spoofing = 0

The DTLS-enabled VPN may observe the above errors, which usually indicate packet corruption, fragmentation, or network instability, which can reduce throughput.

12. Try to restart the SSL VPN daemon with the following command:

fnsysctl killall sslvpnd

Note:

Restarting the SSL VPN daemon will disconnect the users currently connected.

Too many SSL VPN requests can degrade the performance of traffic over SSL VPN. Configure local-in-policy to block SSL VPN brute force attacks: Technical Tip: Restrict unauthorized access on the SSL VPN service.
