Troubleshooting Tip: Dialup IPsec VPN user-info not displaying in 'Assets & Identities'

  • March 28, 2025
  • 0 replies
  • 3112 views
Description This article explains how to troubleshoot and display dialup IPsec VPN user identities in the 'Firewall Users' widget within the 'Assets & Identities' dashboard.
Scope FortiGate.
Solution

When a client authenticates to a dialup IPsec tunnel, it may be necessary and useful to display their session information in the 'Firewall Users' widget.



IPsec VPN authentication itself does not create an entry in the firewall user list.



To display this information, the user group must be configured in the firewall policy rather than the IPsec VPN phase1 interface.


The same applies to both IPsec IKEv1/IKEv2 connections and is relevant for local and remote user groups.

Additionally, the identity can be displayed for Entra ID SAML-authenticated users and clients who are using the auto-connect to IPsec VPN feature with Entra ID logon session information through the msgraph API.



If the user group is configured in both IPsec VPN phase 1 and the firewall policy, traffic will stop flowing through the IPsec VPN tunnel. As no entry is created under the 'diagnose firewall auth list', any firewall policy that uses authentication groups (set groups 'yyyy') will not be matched.



Starting with v7.4 and later, this widget is located in the 'Assets & Identities' dashboard. In the v7.2 branch, it can be found under 'Users & Devices'.

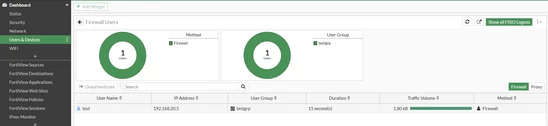

Firewall Users.png



Configuration of a user and user-group:

config user local
  edit "test"
    set type password
    set passwd fortinet
  next
end
config user group
  edit "testgrp"
    set member "test"
  next
end

IPsec VPN IKEv2 configuration:

config vpn ipsec phase1-interface
    edit "TestIKEv2"
        set type dynamic
        set interface "wan1"
        set ike-version 2
        set peertype any
        set net-device disable
        set mode-cfg enable
        set proposal aes128-sha1 aes256-sha256
        set dpd on-idle
        set dhgrp 5
        set eap enable
        set eap-identity send-request
        set ipv4-start-ip 192.168.30.5
        set ipv4-end-ip 192.168.30.20
        set dns-mode auto
        set client-auto-negotiate enable
        set client-keep-alive enable
        set psksecret fortinet
        set dpd-retryinterval 60
    next
end

config vpn ipsec phase2-interface
    edit "TestIKEv2P2"
        set phase1name "TestIKEv2"
        set proposal aes128-sha1 aes256-sha256
        set dhgrp 5
    next
end

config firewall policy
    edit 101
        set name "TestIKEv2"
        set srcintf "TestIKEv2"
        set dstintf "LAN"
        set action accept
        set srcaddr "all"
        set dstaddr "LAN address"
        set schedule "always"
        set service "ALL"
        set logtraffic all
        set groups "testgrp"
    next
end

IPsec VPN IKEv1 configuration:

config vpn ipsec phase1-interface
    edit "TestIKEv1"
        set type dynamic
        set interface "wan1"
        set mode aggressive
        set peertype any
        set net-device disable
        set mode-cfg enable
        set proposal aes128-sha256 aes256-sha256
        set xauthtype auto
        set ipv4-start-ip 192.168.20.5
        set ipv4-end-ip 192.168.20.20
        set dns-mode auto
        set client-keep-alive enable
        set psksecret fortinet
    next
end

config vpn ipsec phase2-interface
    edit "TestIKEv1P2"
        set phase1name "TestIKEv1"
        set proposal aes128-sha256 aes256-sha256
    next
end

config firewall policy
    edit 100
        set name "TestIkev1"
        set srcintf "TestIKEv1"
        set dstintf "LAN"
        set action accept
        set srcaddr "all"
        set dstaddr "LAN address"
        set schedule "always"
        set service "ALL"
        set logtraffic all
        set groups "testgrp"
    next
end
