Troubleshooting Tip: DHCP Request from PC is not received when switch-controller-dhcp-snooping is enabled on FortiLink VLAN interface

Description

The article describes how to fix DHCP when switch-controller-dhcp-snooping is enabled on a VLAN FortiSwitch interface. DHCP snooping can be used to prevent rogue DHCP servers.

Scope

FortiGate, FortiSwitch

Solution

On CLI:

FGT-NAT # show sys int VLAN_20
    config system interface
        edit "VLAN_20"
            set vdom "root"
           set ip 10.10.11.1 255.255.255.0
           set allowaccess ping
            set device-identification enable
            set role lan
            set snmp-index 34
            set switch-controller-dhcp-snooping enable
            set interface "fortilink"
            set vlanid 20
         next
    end

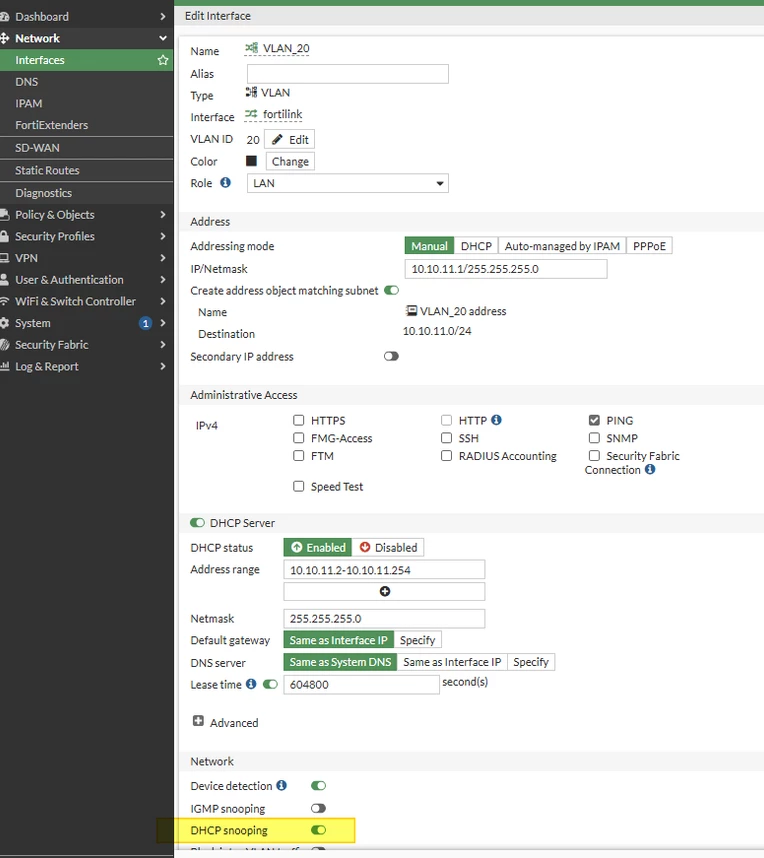

On GUI:

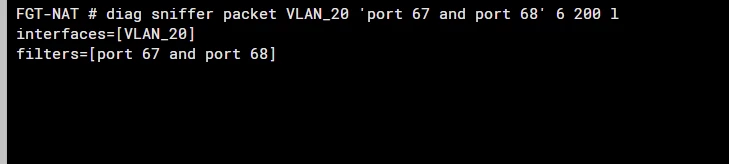

DHCP request is not received on the FortiGate.

Access FortiSwitch from FortiGate under WIFI & Switch Controller -> Managed FortiSwitches -> 'Right-Click' a FortiSwitch -> Connect to CLI -> Enter password.

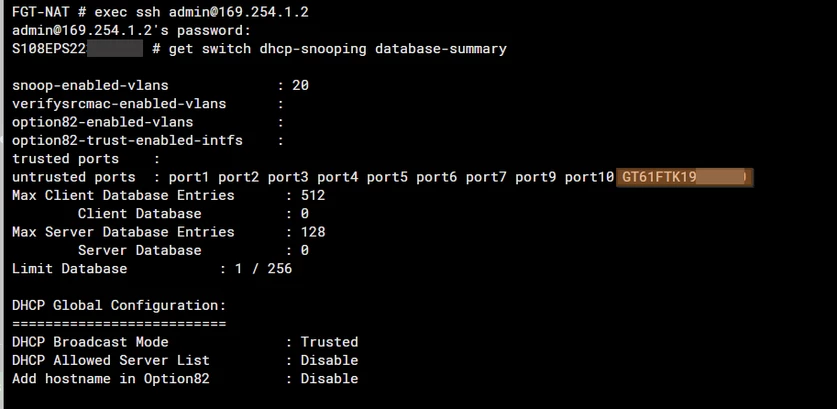

Enter the command 'get switch dhcp-snooping database-summary'. FortiSwitch trunk is showing on untrusted ports.

S108EPS223XXXXXX # get switch dhcp-snooping database-summary

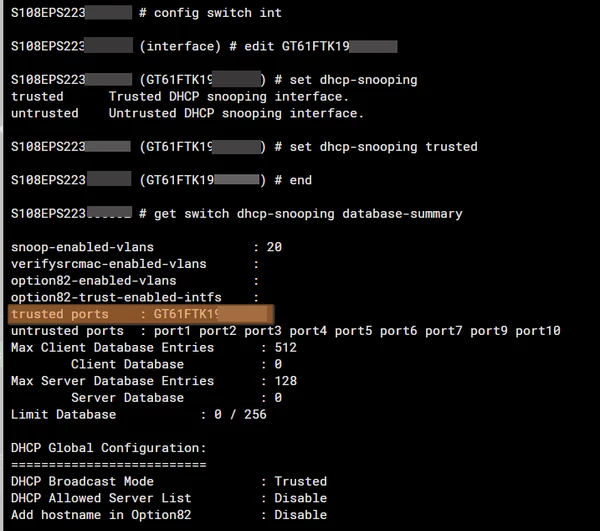

Configure FortiSwitch trunk to 'dhcp-snooping: trusted'.

S108EPS223XXXXXX # config switch int

S108EPS223XXXXXX (interface) # edit GT61FTK19XXXXXX

S108EPS223XXXXXX (GT61FTK19XXXXXX) # set dhcp-snooping
trusted Trusted DHCP snooping interface.
untrusted Untrusted DHCP snooping interface.

S108EPS223XXXXXX (GT61FTK19XXXXXX) # set dhcp-snooping trusted

S108EPS223XXXXXX (GT61FTK19XXXXXX # end

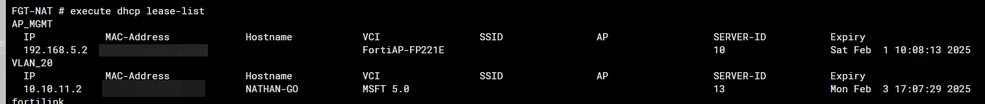

Verify on the FortiGate that the PC received an IP address.
