Troubleshooting Tip: Default FortiLink interface has no member in FortiGate-100F/101F
| Description | This article describes an issue where the default FortiLink interface has no member in FortiGate-100F/101F on v7.2.7. |
| Scope | FortiGate-100F/101F v7.2.7. |

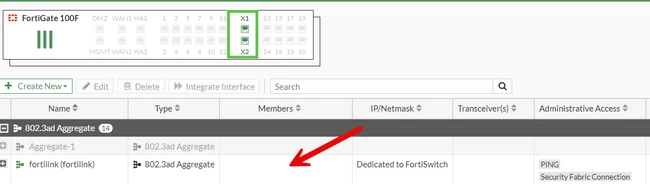

| Solution | After connecting a FortiSwitch to the FortiLink interface of the FortiGate, the FortiLink interface is shown below:
In the above screenshot, the physical interface members: x1 and x2 are missing on the FortiLink aggregate interface.

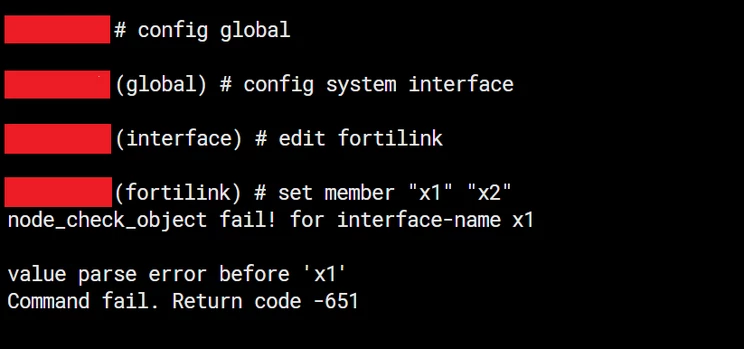

When trying to add the physical interface members x1 and x2 from CLI, is received: 'node_check_object fail! for interface-name x1', as shown in the below screenshot:
When FortiGate is newly deployed directly with v7.2.7, a possible solution is to perform a downgrade to v 7.2.6 and then upgrade to v7.2.7.
This problem is solved on v7.2.11 and v7.4.6. |
