Troubleshooting Tip: Debug flow messages 'iprope_in_check() check failed, drop' - 'Denied by forward policy check' - 'reverse path check fail, drop' - 'iprope_in_check() check failed on policy 0, drop'

Description

This article describes how to fix errors that occur when obtaining a debug flow for connectivity issues.

Scope

FortiGate.

Solution

When troubleshooting connectivity problems to or through a FortiGate with the 'diagnose debug flow' commands, the following messages may appear:

• 'iprope_in_check() check failed, drop'.
• 'Denied by forward policy check'.
• 'reverse path check fail, drop'.
• 'iprope_in_check() check failed on policy 0, drop'.

See the following article for more details about troubleshooting with the 'diagnose debug flow' command:
Troubleshooting Tip: First steps to troubleshoot connectivity problems through a FortiGate with sniffer, debug flow, session list, routing table

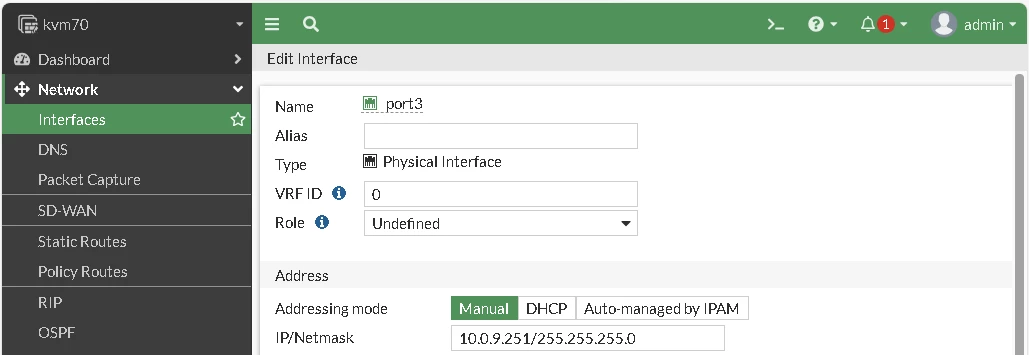

1. When accessing the FortiGate for remote management (ping, telnet, SSH...), the service that is being accessed is not enabled on the interface.

For example, pinging or telnetting the DMZ interface of a FortiGate, IP address 10.50.50.2, where ping and telnet are not enabled.

diagnose debug reset

diagnose debug flow filter daddr 10.50.50.2
diagnose debug console timestamp enable
diagnose debug flow show iprope enable

diagnose debug flow show function-name enable
diagnose debug flow trace start 100
diagnose debug enable

id=36870 pri=emergency trace_id=1 msg="vd-root received a packet(proto=1,10.50.50.1:4608->10.50.50.2:8) from dmz."
id=36870 pri=emergency trace_id=1 msg="allocate a new session-0000d5ad"
id=36870 pri=emergency trace_id=1 msg="iprope_in_check() check failed, drop"
id=36870 pri=emergency trace_id=8 msg="vd-root received a packet(proto=6, 10.50.50.1:1160->10.50.50.2:23) from dmz."
id=36870 pri=emergency trace_id=8 msg="allocate a new session-0000d96a"
id=36870 pri=emergency trace_id=8 msg="iprope_in_check() check failed, drop"

2. When accessing the FortiGate for remote management (ping, telnet, SSH, ...), the service that is being accessed is enabled on the interface, but there are trusted hosts configured that do not match the source IP of the incoming packets.

Example: Pinging the DMZ interface of a FortiGate with IP address 10.50.50.2 from source IP 10.50.50.1 with trusted hosts configured as follows:

The 'show system admin' command will show all the available administrator configurations. In the command below, an administrator named admin is used as an example.

FGT # show system admin <username>

FGT # show system admin admin
    config system admin
        edit "admin"
            set trusthost1 10.20.20.0 255.255.255.0
[...]

id=36870 pri=emergency trace_id=26 msg="vd-root received a packet(proto=1, 10.50.50.1:5632->10.50.50.2:8) from dmz."
id=36870 pri=emergency trace_id=26 msg="allocate a new session-0000da15"
id=36870 pri=emergency trace_id=26 msg="iprope_in_check() check failed, drop"

FortiGate# diagnose sys tcpsock
FortiGate# diagnose sys udpsock

3. When accessing a FortiGate interface for remote management (ping, telnet, SSH, ...) through another interface of the same FortiGate, no firewall policy is present. Example: pinging wan2 at the IP address 10.70.70.1 through DMZ, but there is no firewall policy from DMZ to wan2.



4. Make sure that the remote management is through the customs port, the customs port should be added to the service, and the firewall policy should have the service added.

5. The issue may also be due to the local-in policy, which can be verified with show full firewall local-in-policy.

Starting from v7.6.0, it is possible to view/check the local-in-policy via the GUI:

• Technical Tip: Creating a Local-In policy (IPv4 and IPv6) on GUI
• GUI support for local-in policies

6. A VIP parameter must be set as detailed in the Configuration Example: Using VIP (Virtual IP) for Port Translation only.


7. An improper error can also be thrown if the default admin ports for SSH or HTTPS/HTTP are modified to custom ports and the admin is trying to access on a different port other than the configured custom port.



config system global

    set admin-sport 443

    set admin-port 80

    set admin-ssh-port 22

end

The values shown above are the default. Cross-verify whether an attempt is being made to access the correct port.

8. If it is using the interface IP address as the gateway in a policy route (by mistake), FortiGate will try to send it to the gateway IP (which belongs to the FortiGate root VDOM). This will trigger an 'iprope_in_check() check failed, drop' message. Also, if the gateway is set to 0.0.0.0, the FortiGate will look for a route via the same interface in the routing table. In other words, it gives preference to the Interface.


9. Iprope Check Failure can be observed due to Geo-Location restrictions on SSL VPN settings. When trying to use SSL VPN from a country not included in the Geo restriction on the SSL VPN settings of FortiGate, the connection will not be successful. This is because the connection is being attempted from a different region than the one being allowed, and the debug flow will show the 'iprope_in_check() check failed on policy 0, drop' message.



  10. In case of a static route, if the gateway IP is used in a VIP/IP-Pool configuration, then FortiGate will identify the gateway as a local IP         address. The traffic will be denied with the error 'iprope_in_check() check failed, drop'. Remove any such

       wrong configuration as it is not correct logically.

See this article for more information: Technical Tip: Iprope Check Failure observed due to Geo-Location restriction on SSL VPN settings.

Possible root cause for 'iprope_in_check() check failed on policy 0, drop'.

1. When trying to access the FortiGate for remote management through a dial-up IPsec, and it fails due to the 'iprope_in_check() check failed on policy 0, drop' message appearing on the debug flow, it means that it cannot match a policy for this incoming traffic.
   If the rest of the IPSec configuration (policies, selectors) looks fine, the issue might be in the user group authentication.


When configuring authentication for the dial-up tunnel on FortiGate, there are two ways to match the users with the proper groups:

• Match the group on the phase 1 setting with the 'set authusrgrp'.
• Match the groups on the firewall policies for the IPsec tunnel created.



The 'iprope_in_check() check failed on policy 0, drop' message appears if the user group is configured both in the phase 1 settings and the corresponding policy.

Therefore, the authentication needs to take place only in one of these two ways.

The key point of the second way is that the authentication of the users can be more flexible depending on different policies, and therefore different ways of handling/inspecting them.

2. When connecting to SSL VPN on FortiGate and the FortiClient's public IP address is not in the SSL VPN 'source-address' list, or it is in the source-address list but 'source-address-negate' is enabled. The FortiGate will drop the connection and also show the  'iprope_in_check() check failed on policy 0, drop' message on the flow debug.



config vpn ssl settings

    set source-address <address>
    set source-address-negate [enable|disable]

end

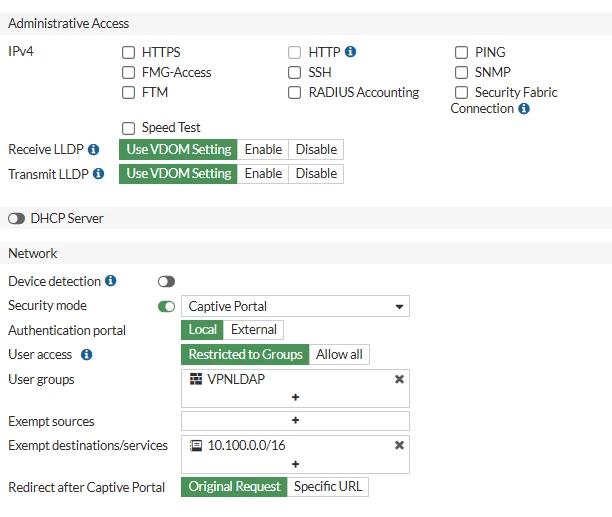

3. Another reason for this error is the captive portal settings at the interface level.

diagnose debug reset

diagnose debug flow filter addr <IP Address>
diagnose debug flow show iprope enable

diagnose debug flow trace start 5
diagnose debug enable

id=65308 trace_id=11 func=iprope_policy_group_check line=4892 msg="after check: ret-matched, act-drop, flag-00000020, flag2-00000000"
id=65308 trace_id=11 func=iprope_fwd_auth_check line=902 msg="iprope_auth_portal_check() result: ret-matched, act-drop"
id=65308 trace_id=11 func=fw_forward_handler line=830 msg="Denied by forward policy check (policy 0)"

The workaround is to remove the captive portal or add exemptions in settings.

Root causes for 'Denied by forward policy check'.

1. There is no firewall policy matching the traffic that needs to be routed or forwarded by the FortiGate (traffic will hit the Implicit Deny rule).

2. The traffic matches a DENY firewall policy.
3. The traffic matches an ALLOW firewall policy, but a DISCLAIMER is enabled. Consequently, traffic will not be accepted unless the end user accepts the HTTP disclaimer proposed by FortiGate while browsing an external site. This is usually encountered on IOT devices that are unable to select the disclaimer 'Yes, I agree' option, causing all access to be denied.

For example (messages are similar for both root causes):

id=36870 pri=emergency trace_id=19 msg="vd-root received a packet(proto=1, 10.50.50.1:7680->10.60.60.1:8) from dmz."
id=36870 pri=emergency trace_id=19 msg="allocate a new session-0000007d"
id=36870 pri=emergency trace_id=19 msg="Denied by forward policy check"

The root cause for 'reverse path check fail, drop.'

This is detailed in the related article at the end of this page: 'Technical Tip: Details about FortiOS RPF (Reverse Path Forwarding), also called Anti-Spoofing'.
