Troubleshooting Tip: Connection reset while accessing SSL VPN web mode

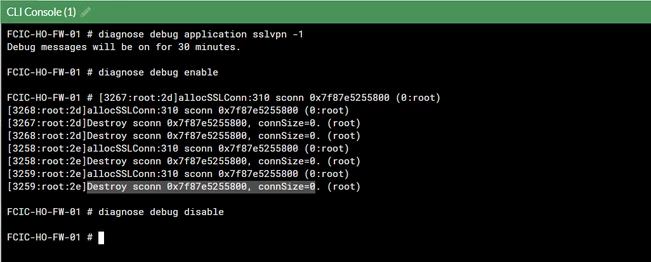

When running an SSL VPN debug, the following errors are observed:

Checking SSL VPN config shows that the option 'source-interface' is set under the SSL VPN setting authentication rule:


config vpn ssl settings

set servercert "FCIC"

set tunnel-ip-pools "SSL-VPN-Pool"

set source-interface "port1"

set source-address "all"

set source-address6 "all"

set default-portal "tunnel-access"

config authentication-rule

edit 1

set source-interface "port2"

set source-address "all"

set groups "IFRS17-Grp"

set portal "tunnel-access"

end


When this option enabled, it will override the global setting and port 1 will never listen for connections: only port 2 will. Unset this option to allow port1 to listen and establish a new connection.

Related article:
Technical Tip: SSL VPN source-interface setting in authentication rule taking precedence
