Troubleshooting Tip: Cannot create access profile entries on FortiGate based on the maximum value table

  • December 3, 2024
  • 0 replies
  • 352 views
Description

This article describes on FortiGate, access profile entries are not created based on the maximum value table

Scope

FortiOS 6.4.x, 7.2.x, 7.4.x and 7.6.x

Solution
  1. system.accprofile has a maximum value table of 10 on the FortiGate-40F.

Max Table Value.png



  1. There is an issue where the user cannot create the admin profile based on the FortiGate maximum value.
  2. Creating the admin profiles, the user gets the error 'reached the maximum number of entries'.

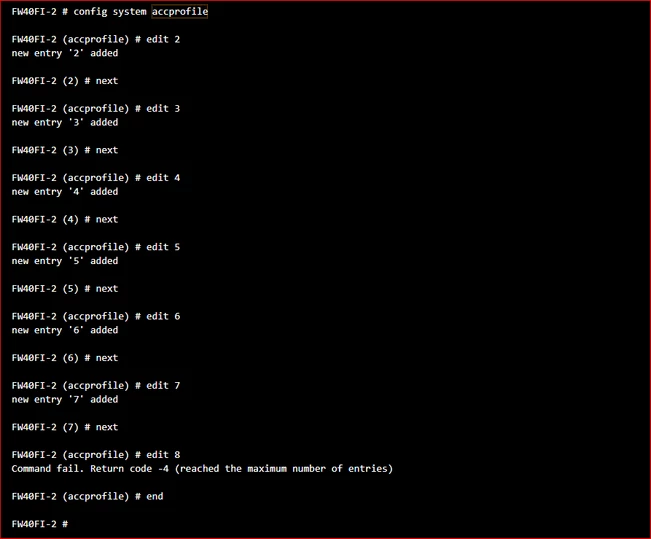

  3. Below is the attached screenshot of the error:




  1. The user is not able to create the 8th admin profile because there are already two default admin profiles: 'prof_admin' and 'super_admin' on the FortiGate. These are also counted in the maximum value database.

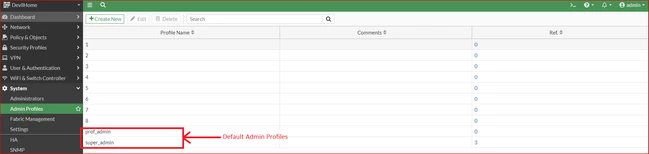

See the following screenshot of the default admin profile:



defff profile.png



For checking the FortiGate maximum values table, refer to the technical tip below for further information on the particular device maximum values table: Technical Tip: FortiGate maximum values table
