Technical Tip: Web server authentication with FortiAuthenticator 2FA on VIP Policy

FortiGate Configuration:

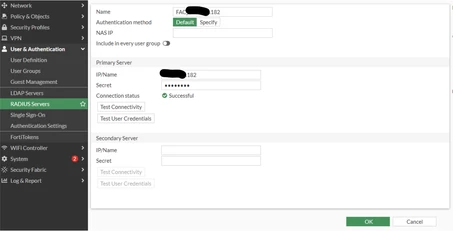

1) Configure Radius server (FortiAuthenticator IP).

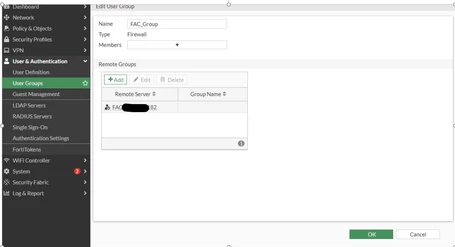

2) Configure group.

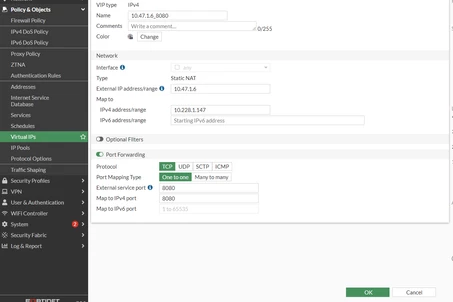

3) Configure VIP.

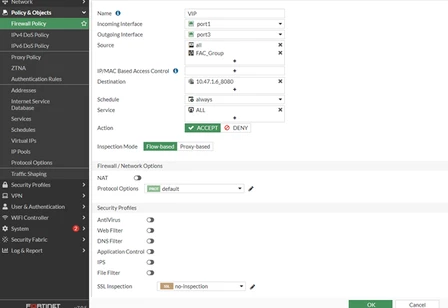

4) Configure firewall policy.

5) Configure on the CLI.

# config user setting

# config auth-ports

    edit 1

        set port 8080 # <----- Port should match the External service port on VIP.

    next

end

end

# config system global

    set remoteauthtimeout 60

end

FortiAuthenticator configuration:

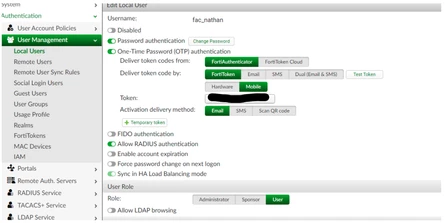

1) Create user on FortiAuthenticator with 2FA enabled.

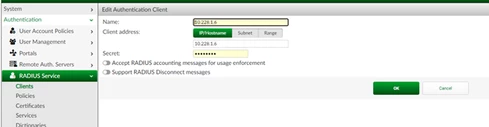

2) Configure Radius Client (FortiGate IP).

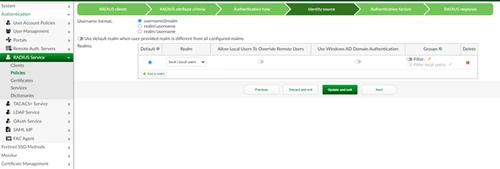

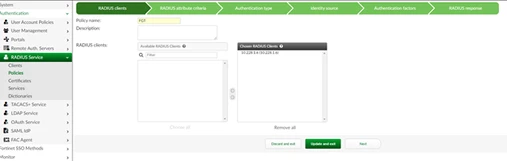

3) Configure Radius policy.

Testing.

1) Access using the VIP External IP. Login with username and password.

2) Enter the FortiToken.

3) Successful login.

Logs.

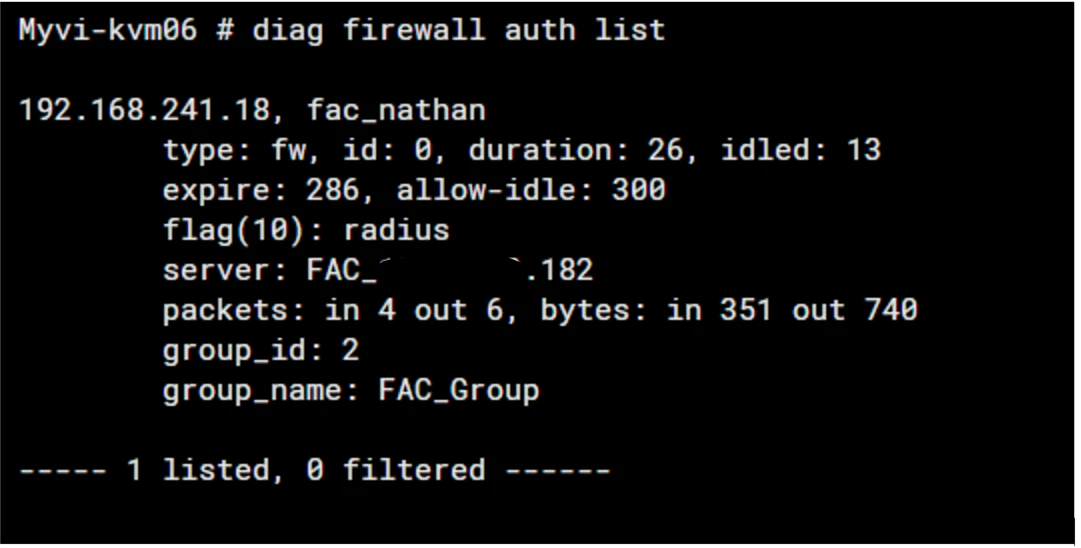

 FortiGate:

FortiAuthenticator:
