Technical Tip: Web Server authentication from external network on VIP policy

Description
This article describes how to authenticate Web server from external network on VIP policy.
Scope

Solution
Access the Internal Web server hosted internally after authentication from external network.

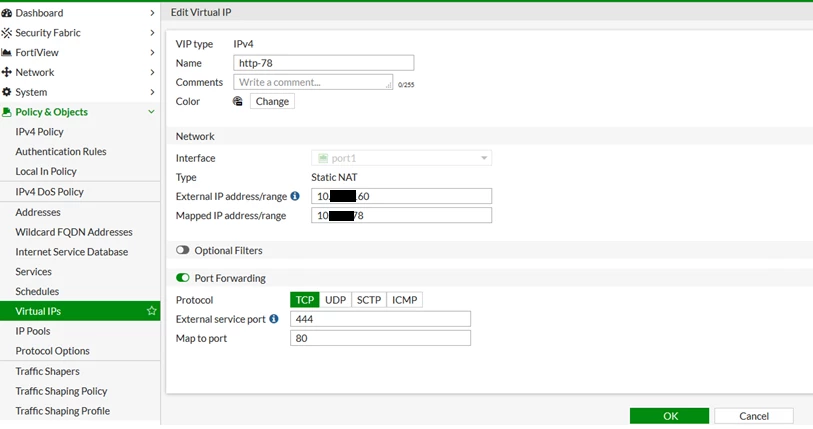

Internal Hosted web server (10.40.9.78), configured a VIP to access the same from external network on external port 444 and mapped to 80.

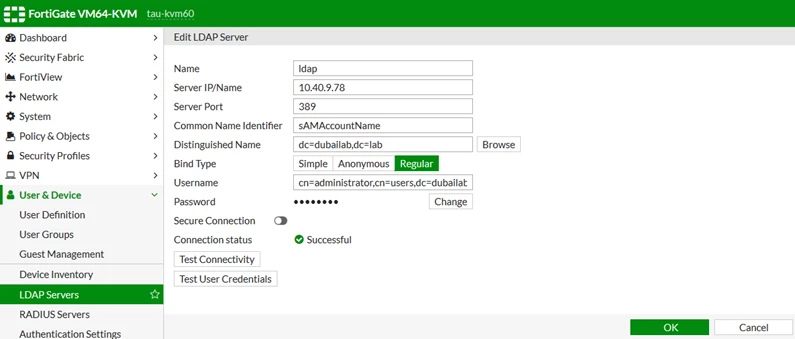

Configured LDAP config and a LDAP user group:

...
