Technical Tip: VNC entry does not show as an option on SSL-VPN Web mode

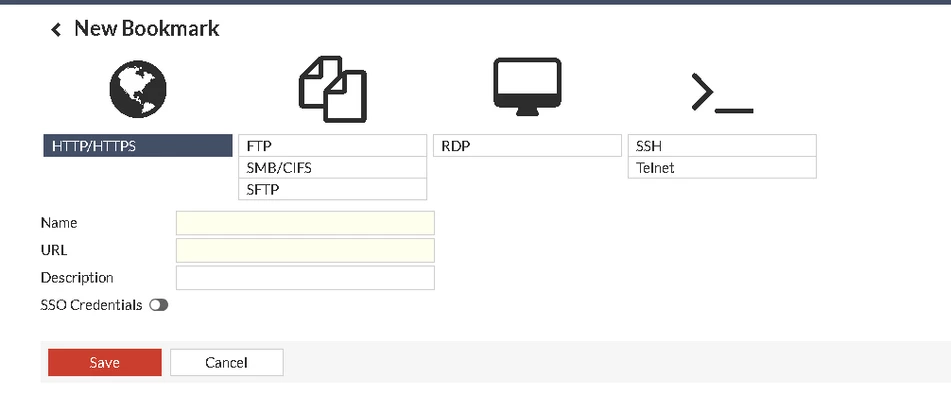

There are cases when one or a few protocols are pre-defined to be used under New Bookmark when the user connects to the SSL-VPN Web mode, as seen below:

As noticed, the VNC protocol is not part of the protocols available. The configuration for this portal (full-access in our case) on FortiGate is as follows:

FortiGate # config vpn ssl web portal

FortiGate (portal) # show
config vpn ssl web portal
       edit "full-access"
            set tunnel-mode enable
            set ipv6-tunnel-mode enable
            set web-mode enable
            set ip-pools "SSLVPN_TUNNEL_ADDR1"
            set ipv6-pools "SSLVPN_TUNNEL_IPv6_ADDR1"
        next

end

Note:

If an option is not available under the CLI configuration for different settings, always check with 'show full-configuration'.

In this case, as seen, the protocol options are not part of the configuration, after executing 'show full':

FortiGate (full-access) # show full-configuration
config vpn ssl web portal
       edit "full-access"
            set tunnel-mode enable
            set ipv6-tunnel-mode enable
            set web-mode enable
            set allow-user-access web ftp smb sftp telnet ssh rdp ping
            set limit-user-logins disable

            ......

       next

end

Here, only the following protocols are allowed for the user to access: web ftp smb sftp telnet ssh rdp ping

To resolve the issue, the VNC protocol should be included in the configuration:

FortiGate # config vpn ssl web portal

FortiGate (portal) # edit full-access

FortiGate (full-access) # set allow-user-access web ftp smb sftp telnet ssh rdp ping vnc

FortiGate (full-access) # end

The configuration now will look as follows:

FortiGate (full-access) # show full-configuration
config vpn ssl web portal
      edit "full-access"
           set tunnel-mode enable
           set ipv6-tunnel-mode enable
           set web-mode enable
           set allow-user-access web ftp smb sftp telnet ssh vnc rdp ping
           set limit-user-logins disable

           ........

      next

end

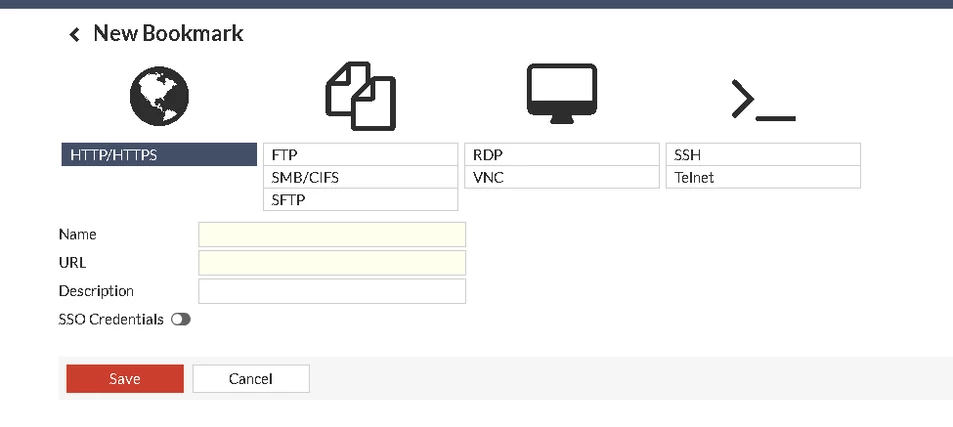

After logging out and logging in on the Web portal and selecting New Bookmark, the option will now be available for selection:
