Technical Tip: VIP creation with same external IP and mapped IP

  • September 4, 2019
  • 0 replies
  • 11801 views

Description



This article describes how, since FortiOS v5.6, it is possible to create a VIP with the same External IP and Mapped IP.
However, until firmware 6.0, creating a VIP with the same External IP and Mapped IP will throw an error in both CLI and GUI.

CLI Error:



Static NAT's extip should be different from mappedip.
object check operator error, -8, discard the setting
Command fail. Return code -8

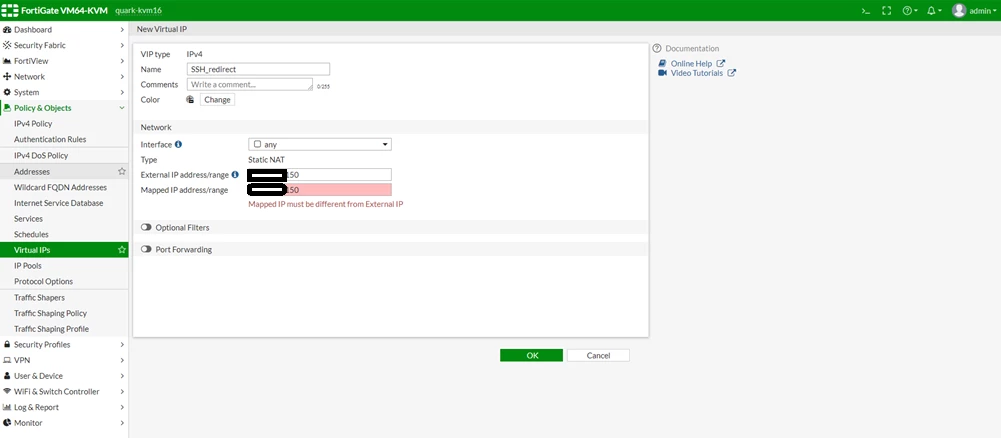

GUI Error:



Scope



FortiGate.


Solution


Change the VIP Type from static-nat to load-balanc while creating the VIP.
Disable the arp-reply, which is enabled by default.

Via CLI:



config firewall vip
    edit "SSH_redirect"
        set extip 10.50.50.150
        set extintf "any"
        set portforward enable
        set mappedip "10.50.50.150"
        set extport 666
        set mappedport 22
        set arp-reply disable
        set type load-balance

end

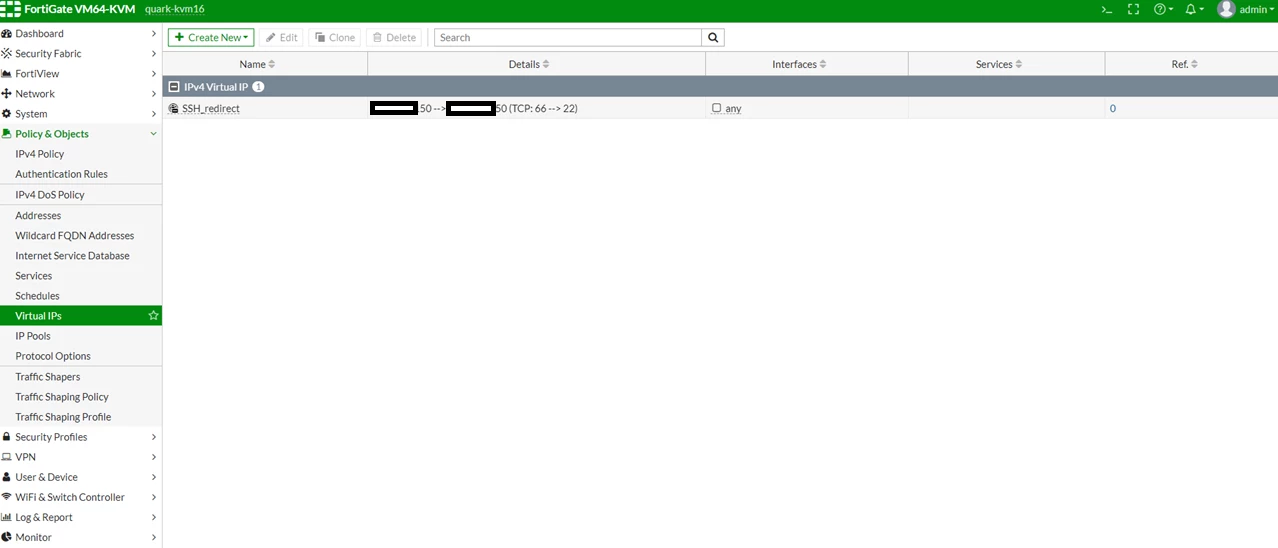

Via GUI:


Create a new VIP, because if the change is processed on an existing VIP's Type from static-nat to load-balance, an error will occur.

The difference between static-nat and load-balance is that load-balance is used to balance the traffic between different Servers behind a FortiGate.
But if only one-to-one DNAT mapping is used, it will work the same way.

Note: Starting FortiOS v7.2.0, FortiGate removes the overlap check for VIPs. No error message appears regarding the overlapping VIPs; instead of this warning, a security rating reports to the user any IP overlaps.
