Technical Tip: Verify SSL VPN split tunnel route on Windows and Linux

Description

This article describes how to verify the SSL VPN split tunnel route.

Scope

FortiGate v7.2 through v7.6.2.

Solution

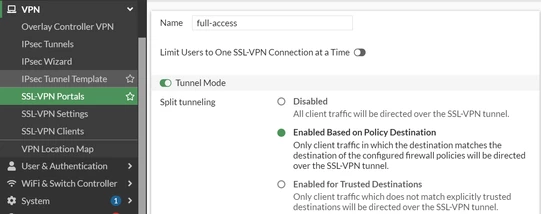

The SSL VPN split tunnel is configured to use the firewall policy destination in the SSL VPN portal.

In the SSL VPN policy, the destination address is 192.168.28.0/24, so traffic destined to this subnet will be sent to the SSL VPN tunnel. In this example, traffic destined for other addresses will not be sent to the tunnel:

config firewall policy
    edit 2
        set name "SSLVPN"
        set uuid 9601eebe-907a-51ef-7239-e297ccce9b9b
        set srcintf "ssl.root"
        set dstintf "port2"
        set action accept
        set srcaddr "all"
        set dstaddr "192.168.28.0"
        set schedule "always"
        set service "ALL"
        set nat enable
        set users "test-vpn"
    next
end

To verify the route on the split tunnel, run the following command if the client is a Windows device:

route print

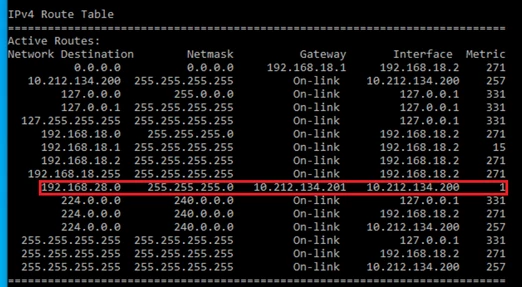

In the above routing table, the IP address 10.212.134.200 is assigned by the FortiGate to the FortiClient. In this example, the gateway 10.212.134.201 is the next IP address after the assigned IP 10.212.134.200. The routing table shows that the split tunnel has added a route to the client for the 192.168.28.0/24 subnet.

It is possible to run a similar command in Linux to list the routes provided by FortiClient. Use the following command in the terminal:

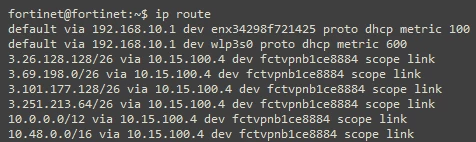

ip route

The routing table shows that some subnets use the tunnel interface 'fctvpnb1ce8884'
