Technical Tip: Use SD-WAN for local out traffic or Management traffic (DNS, NTP, sflow,netflow, LDAP, Radius etc)

• Traffic that originates from the FortiGate destined to external servers can be routed via SD-WAN rules as well
• By default, local out traffic is forwarded based on the routing table lookup
• Interface-select-method is available on multiple features:

config system dns | ntp | sflow | netflow

config system central-management

config system fortiguard

config user radius | ldap | fsso

config log fortianalyzer setting

config log syslogd setting

Note:
For central management, the local traffic is checked against SD-WAN logic only upon session creation. It is by design not to terminate the FortiManager-FortiGate tunnel if there is a change in SD-WAN SLA or logic.

Example:

***DNS***

config system dns
set interface-select-method sdwan
end

*** Central Management (fgfm tunnel) ***

config system central-management

set interface-select-method {auto |sdwan | specify}

set interface <interface>

end

*** NTP ***

config system ntp

config ntpserver

edit <id>

set interface-select-method {auto | sdwan | specify}

set interface <interface>

next

end

end

***DHCP Proxy, Relay***
config system settings
set dhcp-proxy-interface-select-method {auto | sdwan | specify}
set dhcp-proxy-interface <interface>
end

config system interface
edit <interface>
set dhcp-relay-interface-select-method {auto | sdwan | specify}
set dhcp-relay-interface <interface>

*** Authentication (TACACs+, RADIUS,LDAP) ***

config log tacacs+accounting
setting set interface-select-method {auto | sdwan | specify}
set source-ip <IP address>

*** Logging (syslog, sflow, netflow) ***

config system {netflow | sflow | vdom-netflow | vdom-sflow}
set interface-select-method {auto | sdwan | specify}
set interface <interface>

    ***FortiGuard, FortiSandbox***

config system fortiguard | fortisandbox
set interface-select-method sdwan
end

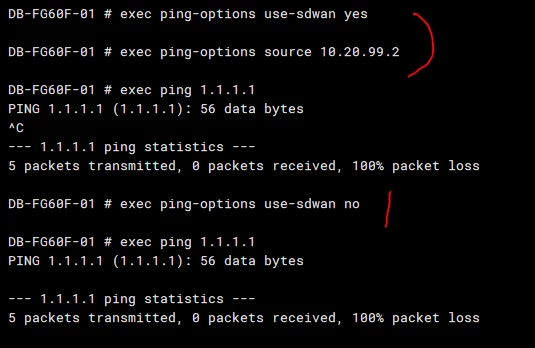

To enable SD-WAN for ping and traceroute:

execute ping-options use-sdwan yes

execute traceroute-options use-sdwan yes

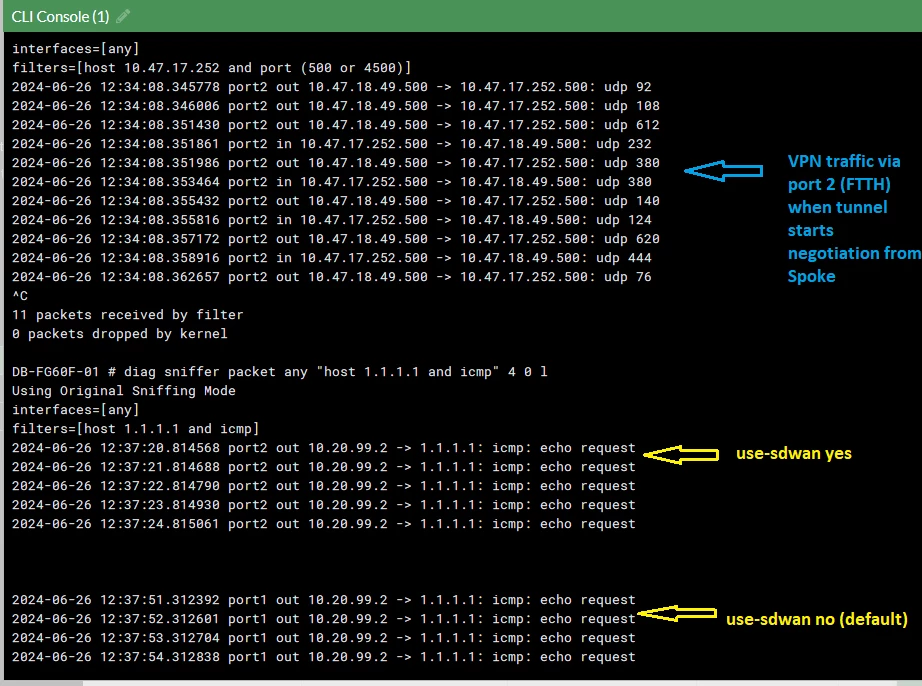

For example, 10.20.99.2 is the Firewall interface's IP address, traffic from it will be considered local-out traffic and by default, it does not follow the SD-WAN rule. If the 'use-sdwan' option is enabled, it will follow the SD-WAN rule:
