Technical Tip: Use LLDP on FortiGate to verify connected switches

Description

This article describes how to enable LLDP on FortiGate and verify connected Link Layer Discovery Protocol (LLDP) neighbors.

Scope

FortiGate.

Solution

By default, LLDP reception is enabled only on interfaces with the WAN role. See Leverage LLDP to Simplify Security Fabric Negotiation.

Depending on the role of the interface, LLDP reception is either enabled or disabled. In situations when multiple FortiSwitches connect to FortiGate using a FortiLink-enabled interface, it can be useful to have LLDP reception enabled to know which switch is connected to the physical FortiGate ports.

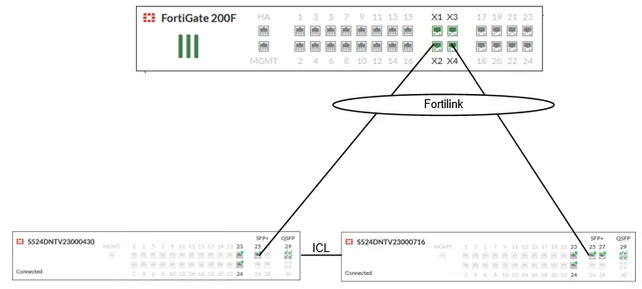

For example, in the following topology, a FortiGate-200F has two aggregation switches connected to ports x3 and x4.

Under normal and default circumstances, the FortiGate will not have any LLDP information about the neighboring devices, and the output of this command will be empty:

In FortiOS v7.4 or earlier:

diagnose lldprx neighbor

In FortiOS v7.6 or later:

diagnose lldp rx neighbor

If required, LLDP reception can be enabled for all interfaces or specific interfaces such as the default 'fortilink'.

Globally:

config system global
    set lldp-reception enable
end

Per-interface:

config system interface
    edit "fortilink"
        set lldp-reception enable
    next
end

For interfaces with LLDP reception enabled, the FortiGate will listen for incoming LLDP frames, and the 'diagnose lldprx neighbor' command shows output:

diagnose lldprx neighbor
1 port 'x2' 33 mac 84:39:8F:5E:F4:66 chassis 84:39:8F:5E:F4:4D port 'port25' system 'S524DNTVXXXXXXXX'
2 port 'x4' 34 mac 84:39:8F:5E:D0:A6 chassis 84:39:8F:5E:D0:8D port 'port25' system 'S524DNTVYYYYYYYY'

LLDP can also be used with third-party switches:

diagnose lldprx neighbor
1 port 'wan1' 5 mac 6C:41:6A:D8:CE:AF chassis 6C:41:6A:D8:CE:80 port 'Te1/0/1' system 'Switch'
2 port 'wan2' 6 mac 6C:41:6A:D8:CE:B0 chassis 6C:41:6A:D3:DE:80 port 'Te1/0/1' system 'Switch'

The command 'diagnose lldprx neighbor details' outputs the vendor platform and additional information, including the management IP address:

diagnose lldprx neighbor details
<output omitted>

lldprx.neighbor.1.port.desc.data: TenGigabitEthernet1/0/1
lldprx.neighbor.1.system.desc.data: Cisco IOS Software, C3750E Software (C3750E-UNIVERSALK9-M), Version 15.2(4)E3, RELEASE
lldprx.neighbor.1.address.1.addr: 172.19.254.254
lldprx.neighbor.2.port.desc.data: TenGigabitEthernet1/0/1
lldprx.neighbor.2.system.desc.data: Cisco IOS Software, C3750E Software (C3750E-UNIVERSALK9-M), Version 15.2(4)E3, RELEASE
<output omitted>
