Technical Tip: Understanding the Difference Between VLAN Protocols 802.1Q and 802.1AD (QinQ)

Description

This article describes that when configuring VLAN interfaces on FortiGate, it is possible to encounter two common VLAN protocols: 802.1Q and 802.1AD, also known as QinQ (Double VLAN and clarifies the differences between these VLAN protocols and how they are configured on FortiGate.

Scope

FortiGate.

Solution

VLAN Protocol 802.1Q:

• 802.1Q is the most widely used VLAN tagging protocol. It allows the insertion of a 4-byte VLAN tag (or VLAN header) within the Ethernet frame.

• The VLAN tag consists of a 12-bit VLAN ID (VID), which can represent up to 4096 unique VLANs. (Maximum value is 4094).

Key Characteristics:

• Tagging Method: 802.1Q tags are added to Ethernet frames to identify VLAN membership.

• Configuration: VLAN IDs are configured directly on network interfaces or sub-interfaces.

Use Cases:

• 802.1Q VLANs are commonly used to segment and isolate traffic in local area networks (LANs).

• They are ideal for organizing network traffic within an enterprise network, separating departments, or creating isolated guest networks.

VLAN Protocol 802.1AD (QinQ):

• 802.1AD, commonly referred to as QinQ or Double VLAN tagging, extends the capabilities of 802.1Q.

• It allows the nesting of VLAN tags within another VLAN tag. QinQ effectively creates a 'VLAN within a VLAN', allowing for more extensive network segmentation.

• Supports a large number of VLANs due to nesting.

• The outer and inner VLAN tags each have their own VLAN IDs.

Key Characteristics:

• Tagging Method: QinQ adds a 4-byte VLAN tag, creating a nested structure.

• Configuration: QinQ requires configuring two sets of VLAN IDs: one for the outer VLAN and another for the inner VLAN.

• QinQ (802.1ad) is not supported on top of hardware‑switch ports; it must be used on regular physical or virtual interfaces.

Use Cases:

• Service providers primarily use QinQ to offer Layer 2 services to multiple customers over a shared network infrastructure. It is also useful in scenarios where complex VLAN segmentation is required, such as in large-scale carrier networks.

Configuring VLAN Interfaces on FortiGate:

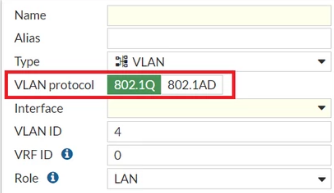

• When configuring VLAN interfaces on a FortiGate, it is possible to choose between 802.1Q and 802.1AD based on your specific networking requirements.

• FortiGate supports both VLAN protocols, allowing the creation of VLAN interfaces as needed for the network segmentation and isolation needs.
