Technical Tip: Unable to fetch user groups information on FSSO Collector agent

Fortinet Single Sign-On Collector Agent.

When there is a service account/administrator password getting expired/reset/renewed on the Active Directory results in the FSSO collector agent failing to get group information.

The collector agent debug shows the following messages, where the LDAP bind fails.

02/11/2022 11:47:58 [ 5152] ldaplib::ldap_bind_s failed, server:fermion-kvm52.rishi.com error code:0x31.
02/11/2022 11:47:58 [ 5152] ad_user_get_groups_str2_s():<NONE>

'LDAP error 0x31' = Invalid Credentials/Bind Failure.

This means that the Collector Agent is trying to authenticate to the domain controller, but the bind account is failing.

In most cases, it is caused by incorrect service account credentials. The FSSO LDAP account password may have changed or expired.

Quick Fix:

In the FSSO Collector Agent.

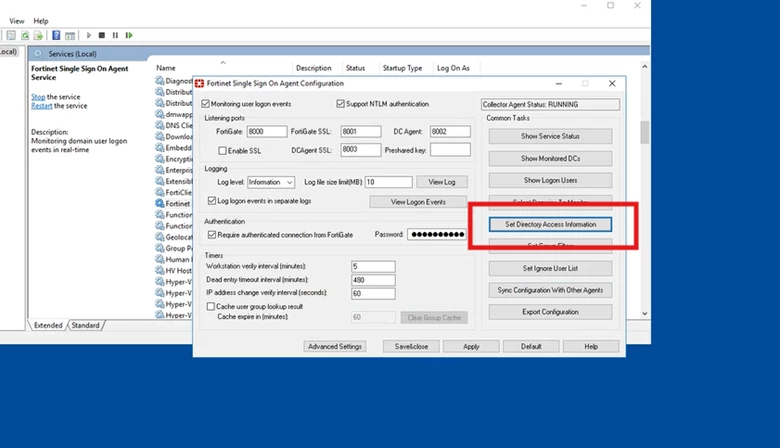

1. Open 'Set Directory Access Information'.

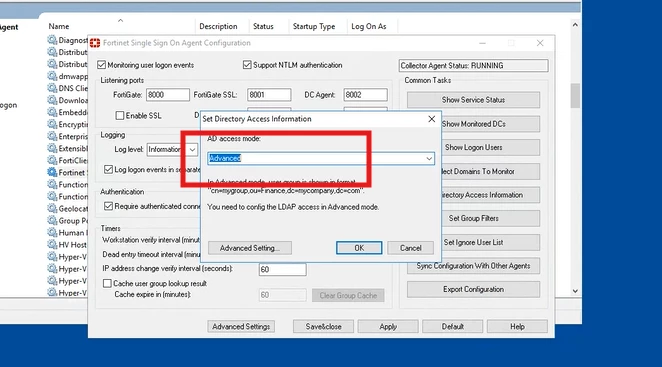

2. AD access mode setting: Advanced.

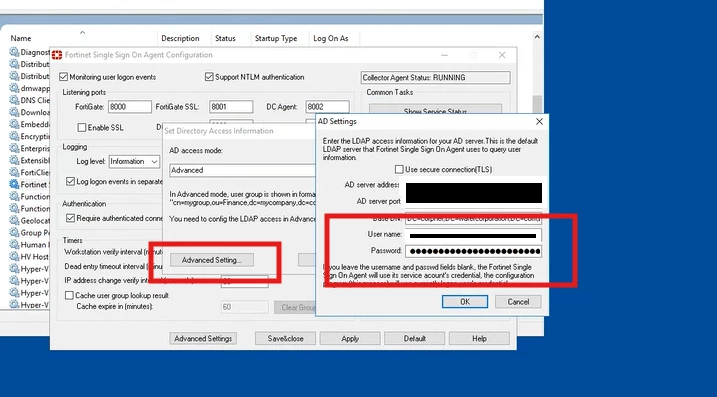

3. Go to Advanced Settings. Validate the correct username and password, then re-enter them in the field provided.





    



4. Select 'OK', 'Apply', 'Save&Close'.



5. After fixing, open 'Show logon users'. Users should be populated on the list. The same goes with the Firewall User Monitor; logged-on users should also be visible.



Note: If the Advanced setting shows blank for LDAP configuration, it means Fortinet Single Sign-On uses Service account credentials.

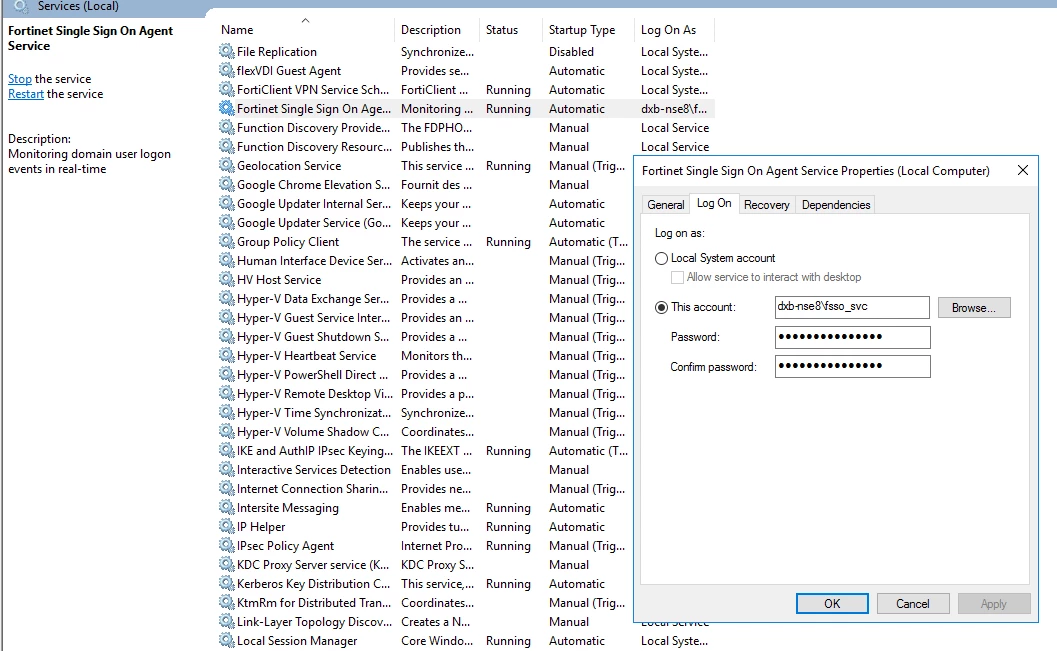

It can be validated under 'service.msc', Open services--Fortinet Single Sign-on Agent service--Properties--Logon, correct with credentials.
