Technical Tip: Unable to create a HUB template using IPSec Wizard

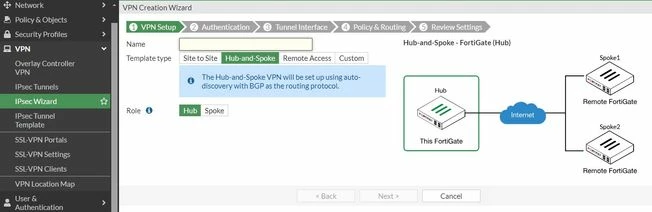

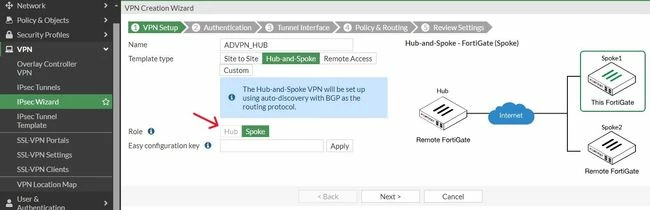

| Description | This article describes an issue where the HUB option is greyed out when creating an ADVPN setup using IPSec Wizard.
|
| Scope | FortiOS. |
| Solution | This is due to a Spoke configuration that is still present on the IPSec VPN configuration of the FortiGate.

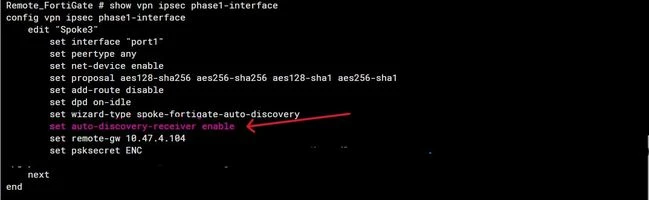

config vpn ipsec phase1-interface edit <VPN_Name> set auto-discovery-receiver disable end
Or:
Delete the whole IPSec VPN phase1-interface configuration.
Note: All the references of the IPSec Phase1-interface must be deleted first for us to be able to delete the whole IPSec Phase1-interface tunnel including the Firewall policies and Phase2-interface.
After doing one of the steps above, the HUB template can be selected again on the IPSec Wizard.
Related article: Troubleshooting Tip: 'Unable to setup VPN' error when using IPsec Wizard Hub-and-Spoke template |
