Technical Tip: Unable to connect to the iPerf server hosted by the FortiGate on v7.4.2+

In v7.4.2, there was a change made that requires authorization for each iPerf client when a test is attempted. This authorization check is proprietary and not currently supported by any iPerf client. More details on the authorization check can be seen here: SD-WAN hub and spoke speed test improvements 7.4.2

This is still possible to run between FortiGates, as the authorization check can be fulfilled. For instructions, see
Technical Tip: Solving authorization issue in speed-tests for SD-WAN BGP on loopback design 'free/no license' option.

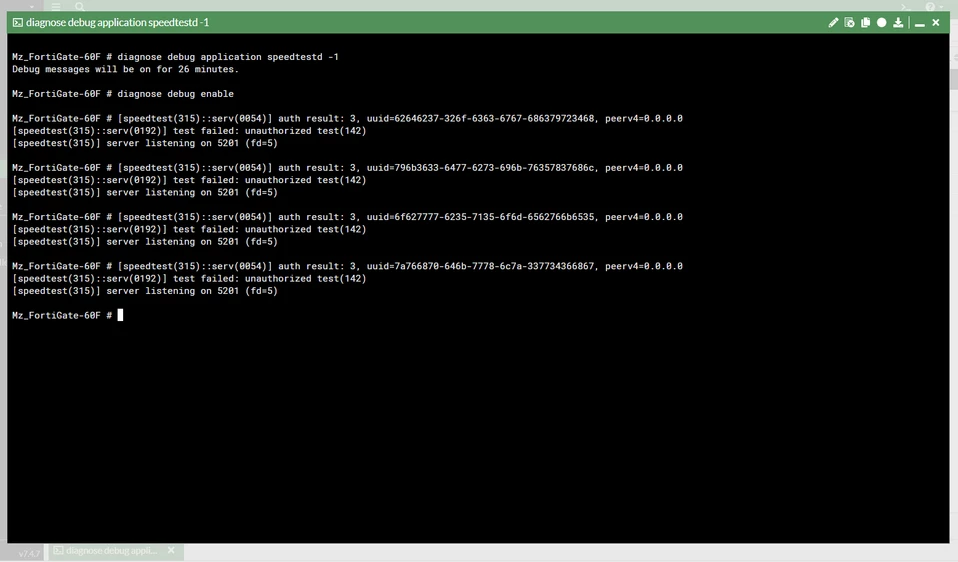

The FortiGate below is on a version above 7.4.2. When taking a 'speedtestd' debug, the error 'test failed: unauthorized test(142)' is visible.

Mz_FortiGate-60F # diagnose debug application speedtestd -1

Mz_FortiGate-60F # diagnose debug enable

Mz_FortiGate-60F # [speedtest(315)::serv(0054)] auth result: 3, uuid=74693337-3277-6877-7872-6e376761666a, peerv4=0.0.0.0
[speedtest(315)::serv(0192)] test failed: unauthorized test(142)
[speedtest(315)] server listening on 5201 (fd=5)

The test on the client side fails with 'error - control socket has closed unexpectedly':

.\iperf3.exe -c 100.64.0.1 --debug
Reading new State from the Server - current state is 0-Test reset
All threads stopped
iperf3: error - control socket has closed unexpectedly

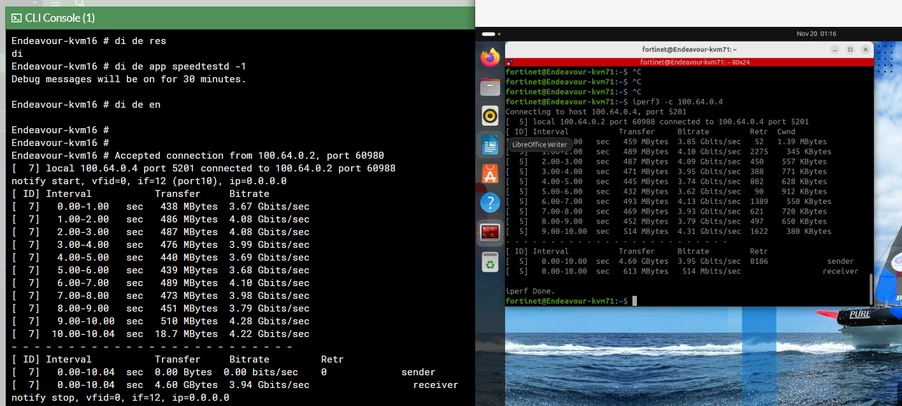

The FortiGate below is on v7.4.1. The 'speedtestd' debug shows the test succeeds, and the same is seen on the client side.
