Technical Tip: Unable to configure static routes for SD-WAN zone
| Description | This article describes how to mitigate error 'You cannot have duplicated routes on SD-WAN and non SD-WAN interfaces'. |
| Scope | FortiGate. |
| Solution | The error occurred only when there were existing static routes for non-SD-WAN interfaces. To mitigate the issue, it is recommended to establish a console connection on the FortiGate device first, as it needs to delete/remove all the existing static routes associated with the SD-WAN interfaces. To keep the FortiGate connection active, a console connection is required.
This is the actual error:

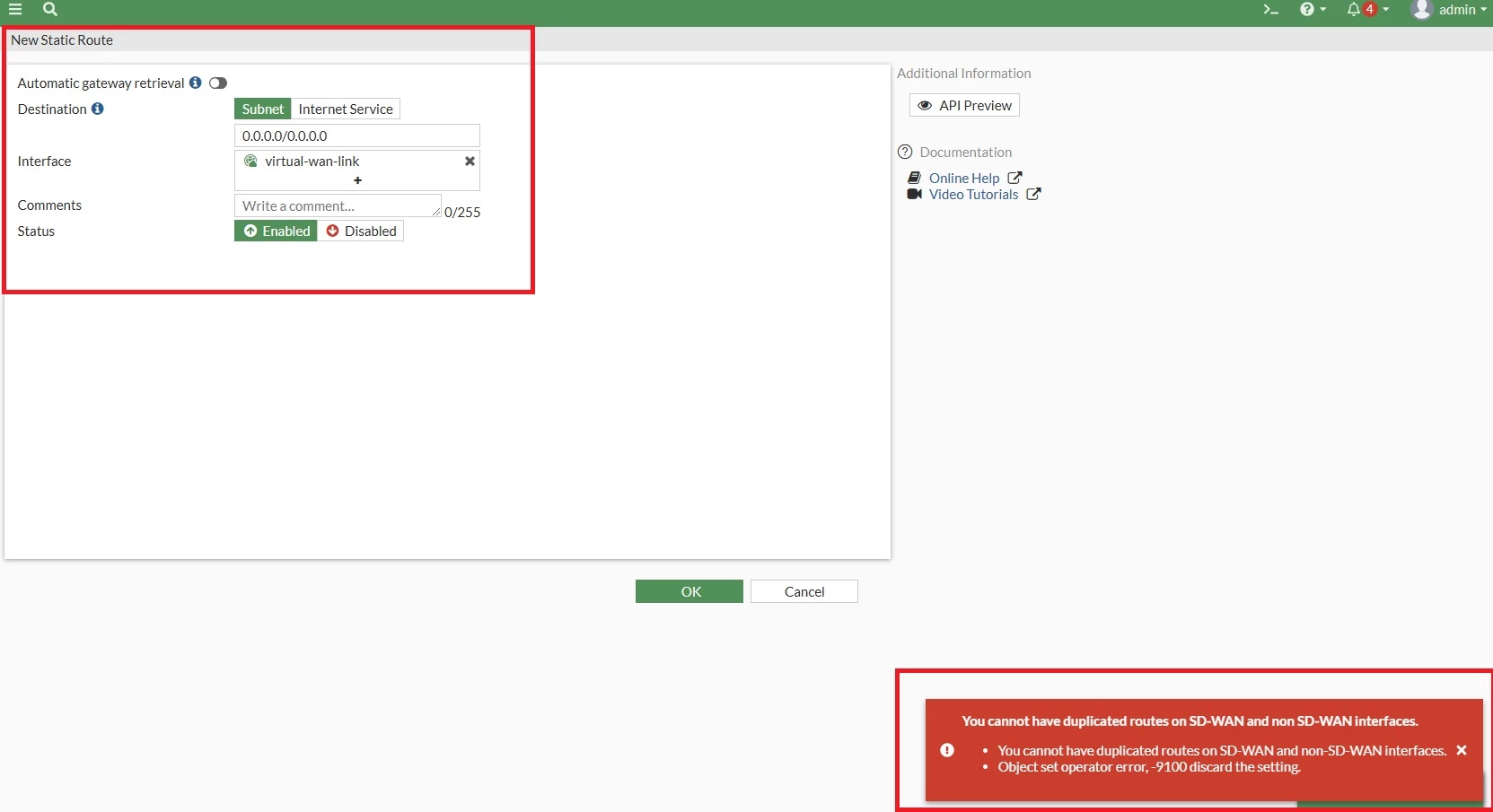

In GUI:

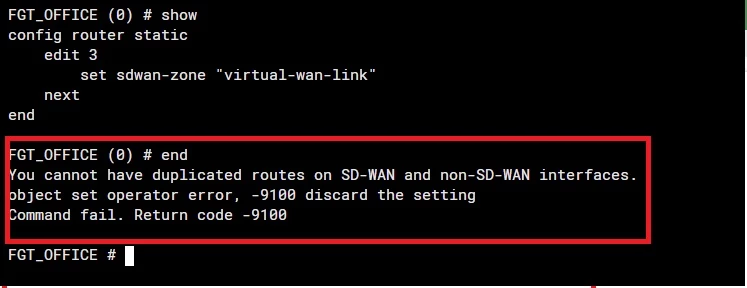

In the command line:

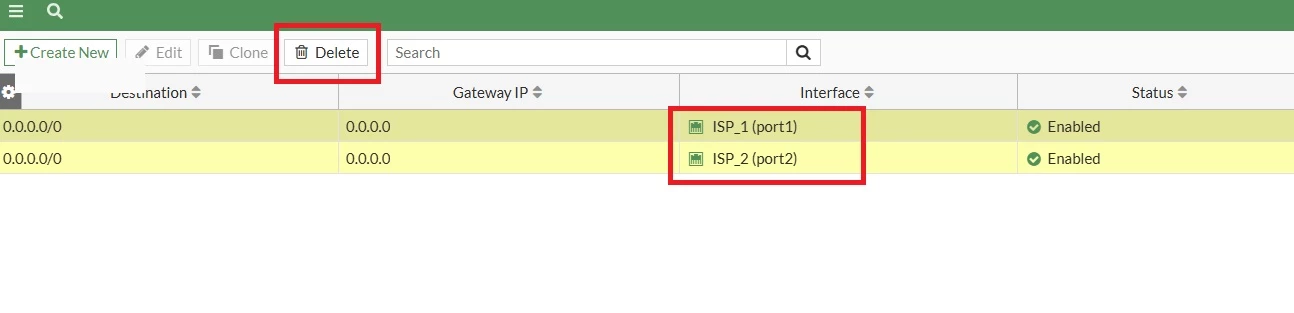

Delete all of the existing static routes linked with the SD-WAN interfaces:

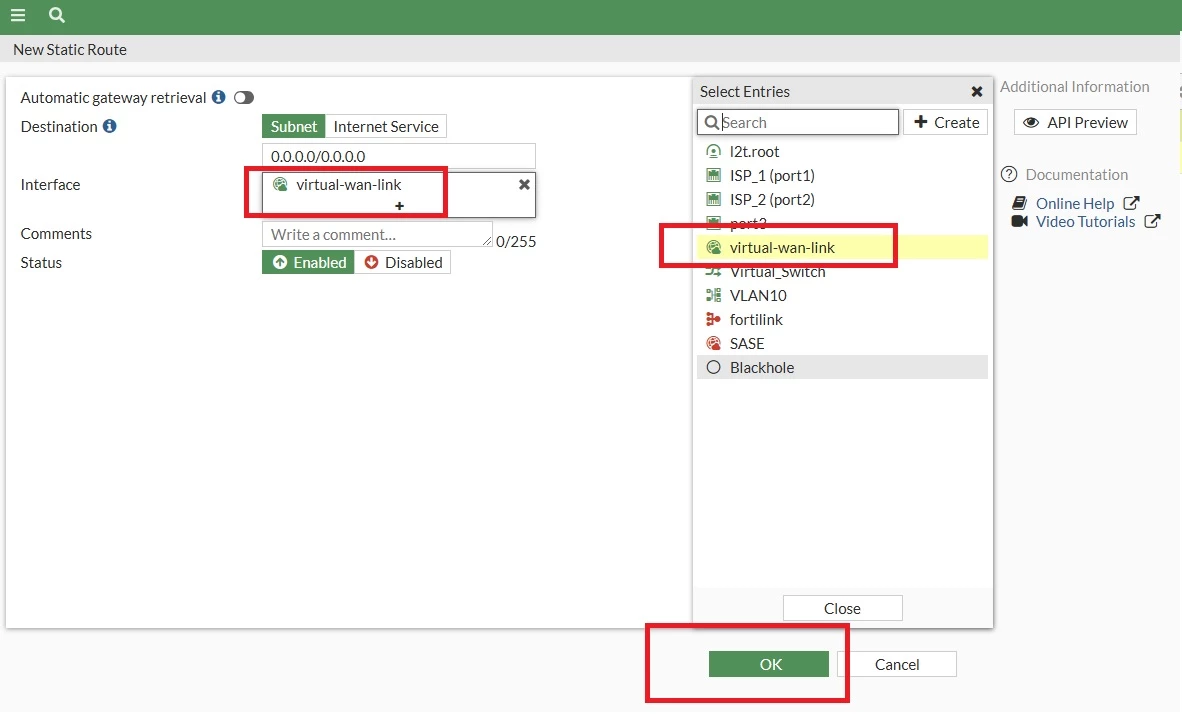

After being removed, routes on the SD-WAN zone can now be added:
In GUI:
In CLI:
Command 'get router info routing-table all' can be executed to verify if the routes have been added to the routing table. |
