Technical Tip: Unable to add/select remote LDAP users, all the users are greyed out

Description This article describes why the FortiGate administrator is unable to select/add Remote LDAP users.
Scope FortiGate, LDAP.
Solution

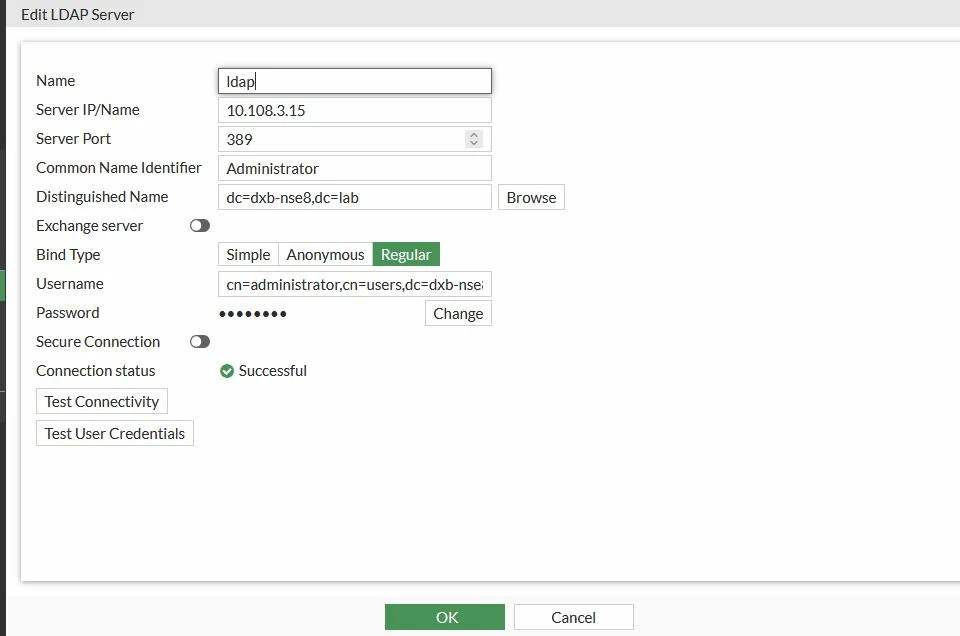

When the LDAP server is configured as below on FortiGate, then it is unable to select/add Remote LDAP users.

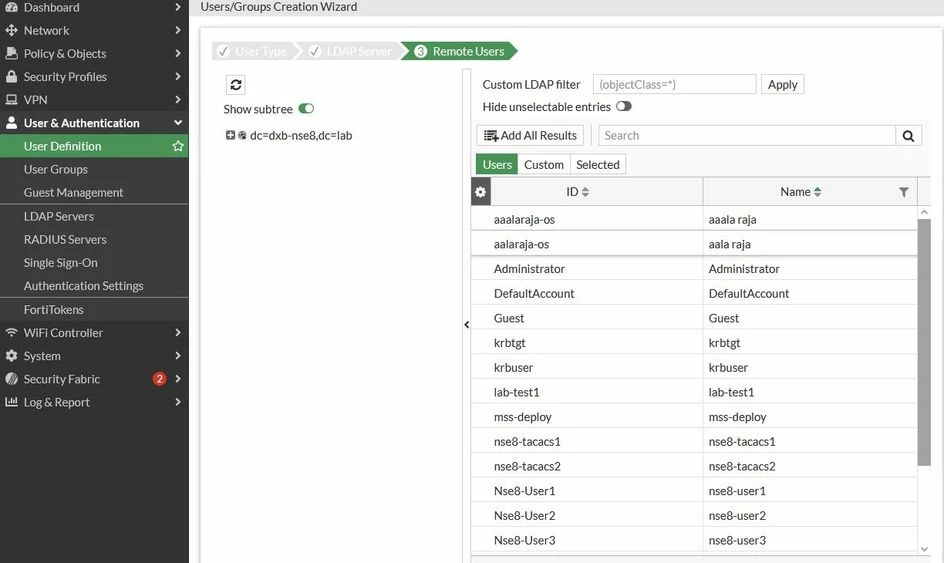

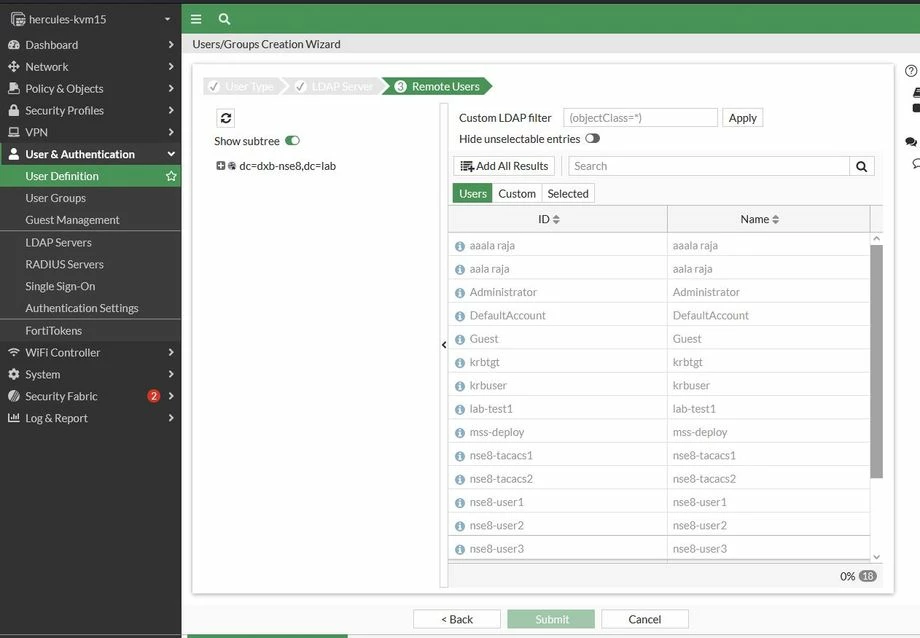

Try to add a Remote user under User & Authentication -> User Definition -> Create New ->  Remote LDAP User -> select 'LDAP' -> Next -> All users are greyed out.

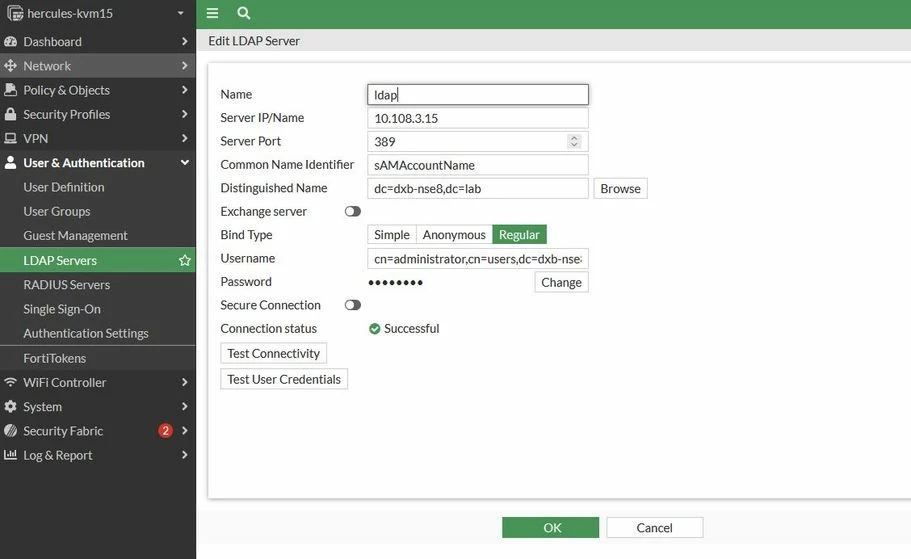

 To resolve this, modify the CNID to 'sAMAccountName' in the LDAP configuration instead of 'Administrator'.









Note: The users cannot be re-added if already listed on the firewall, under USER Definition.


Related document:

Users
