Technical Tip: Unable to add a route-tag address object as the source in the firewall policy

Route tag address objects were introduced in v7.4.0 Route Tag Address Objects

As per the design, the route-tag objects can only be added as a destination in the firewall policy. It can not be selected as a source.

For example:

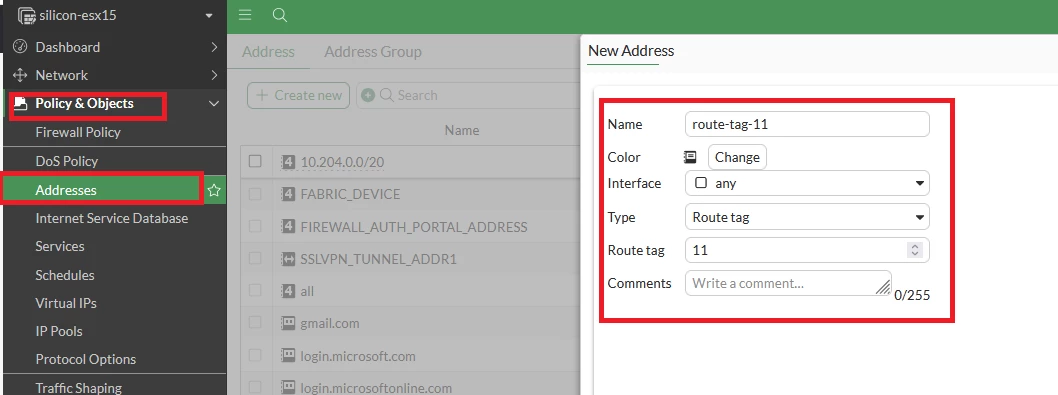

From GUI :

From CLI :

config firewall address

    edit "route-tag-11"

        set uuid 70d9fdb6-c734-51ef-0ac6-2e497dfe8a4e

        set type route-tag

        set route-tag 11

        set comment ''

        set associated-interface ''

        set color 0

        set fabric-object disable

    next

end

The above route-tag object cannot be set as a source but it can be selected as a destination address in the firewall policy.

From GUI :

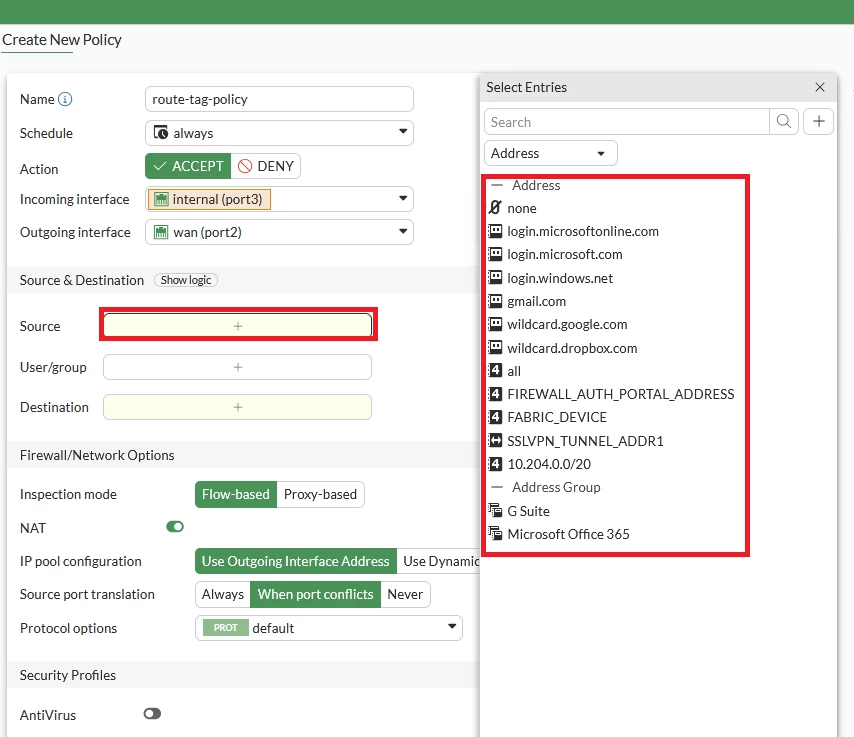

Route-tag address object is not available in the source of firewall policy as seen in the below image:

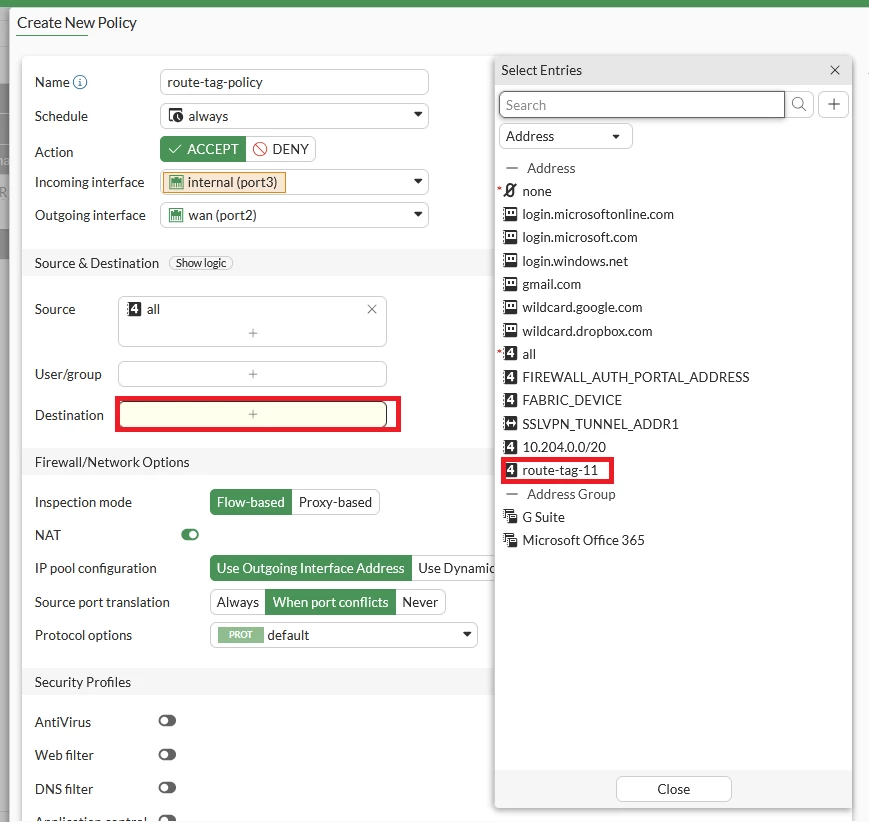

Route-tag address object is available in the Destination of the firewall policy as visible in the below image:

From CLI :

config firewall policy

    edit 1

        set uuid 0af996d6-c6ef-51ef-ed94-88f2e8ba8c06

        set srcintf "internal"

        set dstintf "wan1"

        set action accept

        set srcaddr "all"

        set dstaddr "all"

        set schedule "always"

        set service "ALL"

        set nat enable

    next

end

FortiGate-60F (1) # set srcaddr route-tag-11

entry not found in datasource

value parse error before 'route-tag-11'

Command fail. Return code -3

FortiGate-60F (1) # set dstaddr route-tag-11

FortiGate-60F (1) # end

This is an expected behavior.
