Technical Tip: Troubleshooting FortiAnalyzer Event Handler Not Triggering Automation Stitch on FortiGate

FortiAnalyzer Event Handler has an option to send an alert to trigger an automation stitch on FortiGate.
The following steps explains the sequence that makes this happens.

1. Logs are generated on FortiGate then sent to FortiAnalyzer.
2. Event Handlers has a set of rule/conditions to review specific log fields, if those conditions are met, The Event Handler is fired.
3. FortiAnalyzer then sends a request to FortiGate through https to notice FortiGate that the Automation Stitch needs to be executed.
4. The Automation Stitch on FortiGate is then triggered to perform a pre-configured action.

Troubleshooting:
The following debug commands can be run on FortiAnalyzer and FortiGate to provide more insight on what is happening in the background.

FortiAnalyzer Commands:

diag debug app oftpd 255 <FortiGate_Name>
diag debug enable

FortiGate Commands:

diagnose debug reset
diagnose debug application httpsd -1
diagnose debug app autod -1
diagnose debug enable

By reviewing the HTTPS Debug output on FortiGate, the following error can be observed:

[httpsd 20951 - 1713376416 error] generate_event[893] -- Administrator does not have permission to generate this log: security-event
[httpsd 20951 - 1713376416 warning] api_return_http_result[1275] -- API error 403 raised

The reason for this error is that FortiOS no longer supports username/password authentication to FortiAnalyzer.
Certificate authorization has to be used for the FortiAnalyzer to request through OFTP daemon.

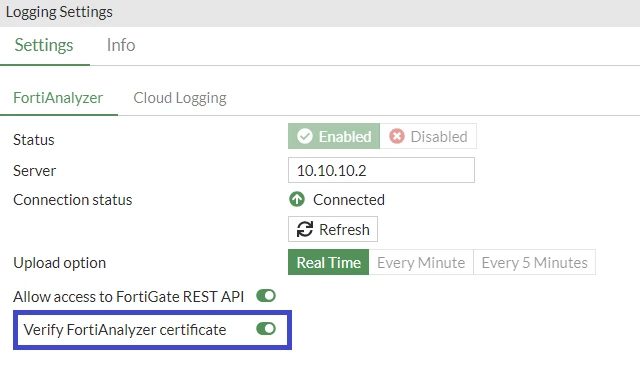

Navigate to Fabric Connectors -> Logging & Analytics -> Edit.


Enable 'Verify FortiAnalyzer certificate' and Select OK.

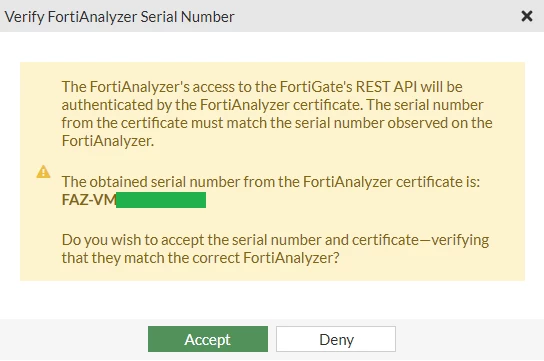

Upon enabling the feature, a certificate authorization prompt will appear. Select Accept.

To enable it via the CLI, run the following configuration:

config log fortianalyzer setting
    set certificate-verification enable
end

Restart both daemons involved between FortiGate and FortiAnalyzer:

FortiAnalyzer:

diagnose test app oftpd 99

FortiGate:

fnsysctl killall httpsd

If both of these commands do not work, reboot both FortiAnalyzer and FortiGate with the following command on each:

execute reboot

Important:

On FortiGate devices running FortiOS versions 7.6.5 or 7.6.6, the same error message 'Administrator does not have permission to generate this log: security-event API error 403' can be observed when FortiAnalyzer event handler attempts to trigger an automation stitch on the FortiGate. This is a known issue (ID 1239953), and a fix is scheduled for FortiOS versions 7.6.7 and 8.0.0.
