Technical Tip: Trigger a captive portal only when specific websites are accessed while blocking access to all other websites

  • December 20, 2024
  • 0 replies
  • 1062 views
Description This article describes how to configure FortiGate to trigger a captive portal only when specific websites are accessed, ensuring that the portal does not appear during general internet usage.
Scope FortiGate.
Solution
  1. Create web rating override:
  • Go to Security Profiles -> Web Rating Overrides -> Create new.
  • Enter the URL and override to Custom Categories, sub-Category custom1.
  • Enter all the specific URLs that should prompt the captive portal and change the category to Custom.

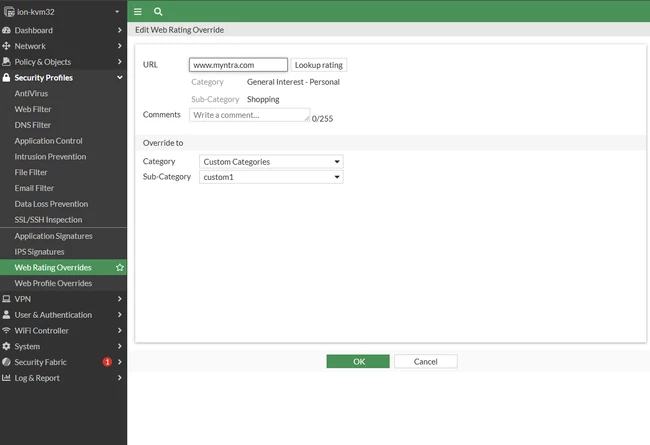

Screenshot 2024-12-20 170711.png



  1. Web Profile.
    • Go to Security Profiles -> Web Filter -> Create new.
    • Select anywhere on the category and ctrl + A to select all categories and set action Block to block all the websites.
    • Set custom1 action to Authenticate.
    • Specify the user group who can access that website.

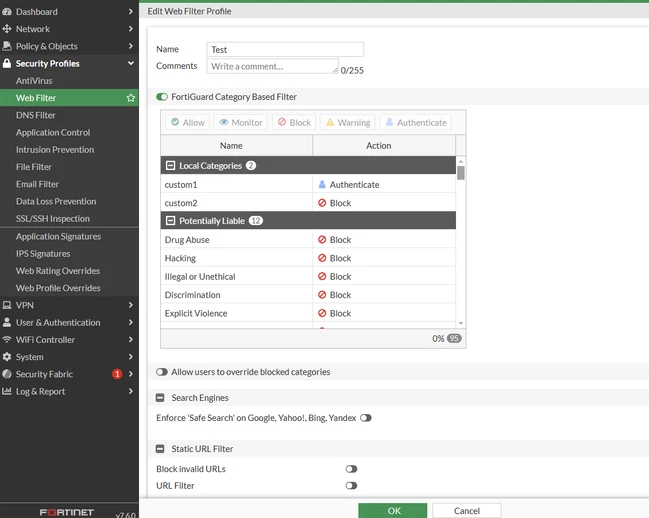

    Screenshot 2024-12-20 171804.png

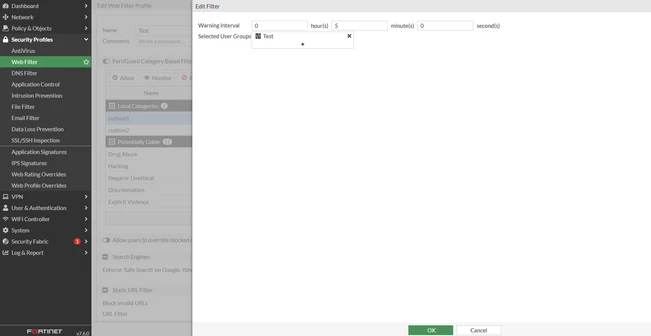

    Screenshot 2024-12-20 171029.png





  2. Policy:

    • Go to Policy & Objects -> Firewall policy.
    • Add the newly created web filter profile to the relevant policy and configure SSL inspection as Deep Inspection.
    • Download the Deep inspection certificate to the local machine.
    • Save the policy.



  3. The authentication will work in Webfilter. Proxy based and the firewall policy is proxy based.

  4. Download the certificate:

    • Go to Policy -> SSL inspection -> Edit.
    • Download the certificate.
    • Open the downloaded file .cer.
    • Select Install the certificate.
    • Select Local machine.
    • Select 'Place all certificates in the following store' and Browse the 'Trusted Root Certificate Authorities' folder.
    • Select finish.
    • Note if the import is successful.
